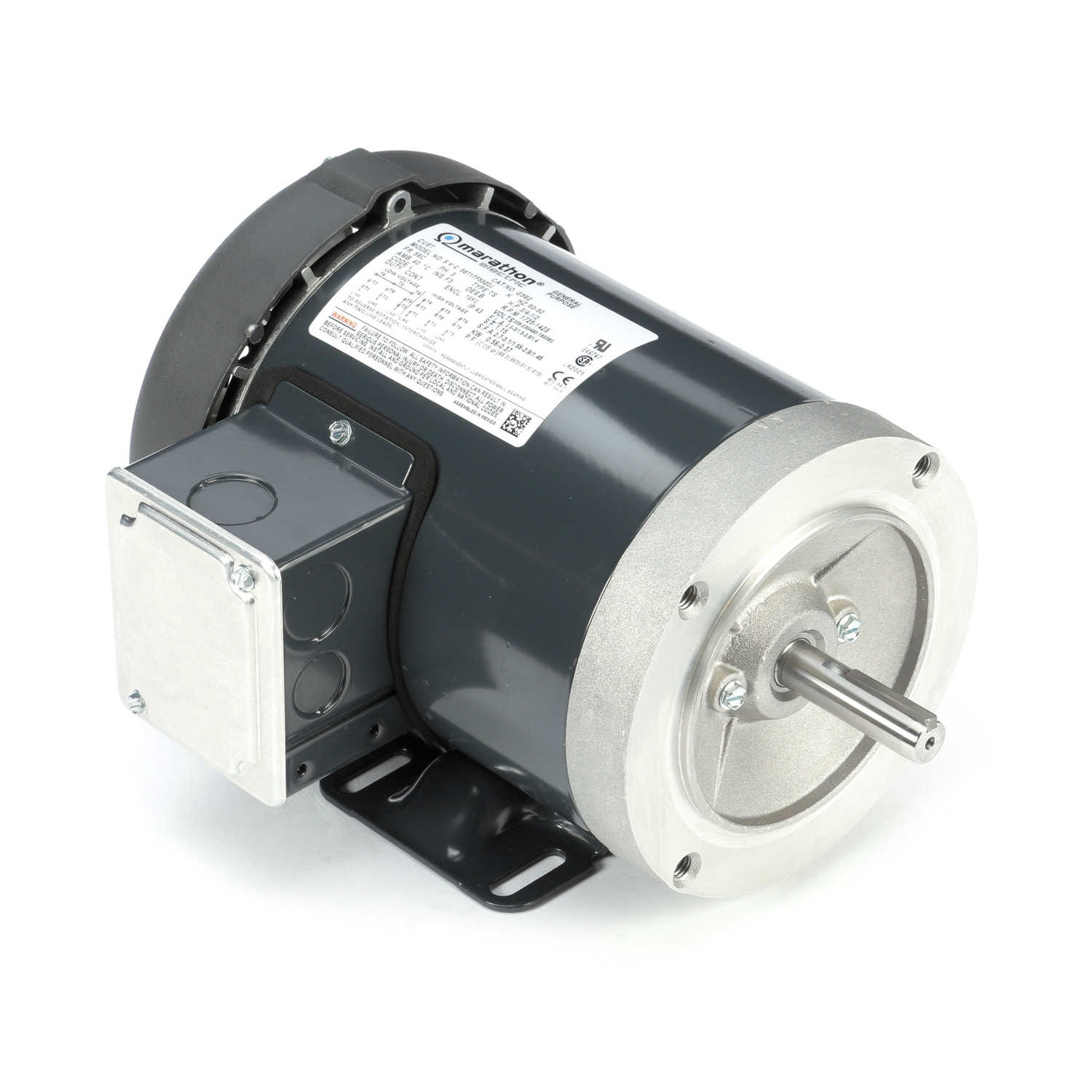

G581, Marathon, 1/2 HP, 1725 Rpm, 208-230/460V, 056T17F5321, MQR-124CW

MARATHON

$475.42

G581, 056T17F5321, MQR-124CW, MAXMOTION,

Géneral Specifications

Model :	056T17F5321	Catalog No :	G581
Part Description :	1/2,1800,TEFC,56C,3/60/208-230/460	Category :	Totally Enclosed Fan Cooled (TEFC)
Stock :	Yes

Nameplate Specifications

Output HP :	0.50 Hp	Output KW :	0.37 kW
Frequency :	60 Hz	Voltage :	208-230/460 V
Current :	2.3-2.4/1.2 A	Speed :	1725 rpm
Service Factor :	1.15	Phase :	3
Efficiency :	72 %	Duty :	Continous
Insulation Class :	F	Design Code :	B
KVA Code :	M	Frame :	56C
Enclosure :	Totally Enclosed Fan Cooled	Overload Protector :	No
Ambient Temperature :	40 °C	Drive End Bearing Size :	6203
Opp Drive End Bearing Size :	6203	UL :	Recognized
CSA :	Y
