MARATHON | SKU :
EMN-007005

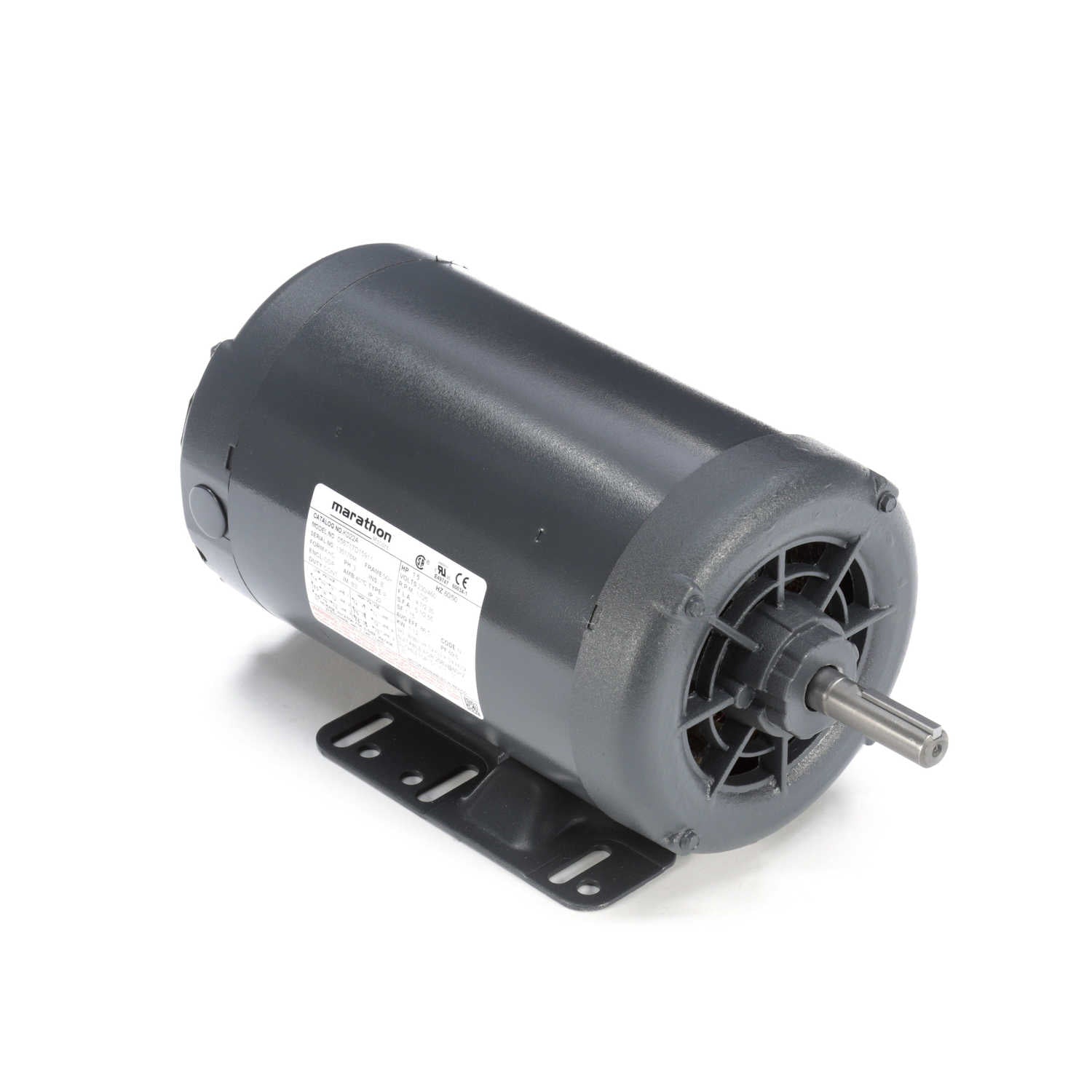

EXK061, Marathon, 1.5 Hp, 1725, 575V, 56H, SF 1.15, 056T17D5369, ODP, K061A
Prix habituel
$532.33
Prix unitaire
/
Indisponible
EXK061, Marathon, 1.5 Hp, 1725, 575V, 56H, SF 1.15, 056T17D5369, ODP, K061A est en rupture de stock et sera expédié dès qu’il sera de retour en stock.
Impossible de charger la disponibilité pour le Service de retrait
shipping
Estimation des frais de livraison
Veuillez corriger les erreurs suivantes :
![EXK061, Marathon, 1.5 Hp, 1725, 575V, 56H, SF 1.15, 056T17D5369, ODP, K061A - HVAC ELECTRIC MOTOR - MARATHON - electric motors - [product_tags]- motor electric - moteur électrique - moteurs - drive - replacement - venmar - hvac - méchoui - capacitor - condensateur](http://www.emotornations.com/cdn/shop/products/K061A_MARATHON_EXK061.jpg?v=1756479510&width=112)
EXK061, Marathon, 1.5 Hp, 1725, 575V, 56H, SF 1.15, 056T17D5369, OD...
Prix habituel
$532.33
Prix unitaire
/
Indisponible
Description
Description
EXK061, Marathon, K061A, 056T17D5369,
General Specifications
| Model : | 056T17D5369 | Catalog No : | EXK061 |
| Part Description : | 1 1/2,1725,DP,56H,3/60/575 | Category : | Open Drip Proof (ODP) |
| Stock : | Yes |
Nameplate Specifications
| Output HP : | 1.5 HP | Output KW : | 1.12 kW |
| Frequency : | 60 Hz | Voltage : | 575 V |
| Current : | 1.9 A | Speed : | 1725 RPM |
| Service Factor : | 1.15 | Phase : | 3 |
| Efficiency : | 80 % | Duty : | CONTINUOUS |
| Insulation Class : | B | Design Code : | B |
| KVA Code : | K | Frame : | 56H |
| Enclosure : | DP | Overload Protector : | NOT |
| Ambient Temperature : | 40 °C | Drive End Bearing Size : | 6203 |
| Opp Drive End Bearing Size : | 6203 | UL : | Recognized |
| CSA : | Y | CE : | Y |
| IP Code : | 22 |
Technical Specifications
| Electrical Type : | SQ CAGE IND RUN | Starting Method : | ACROSS THE LINE |
| Poles : | 4 | Rotation : | REV |
| Mounting : | RIGID | Motor Orientation : | HORIZONTAL |
| Drive End Bearing : | BALL | Opp Drive End Bearing : | BALL |
| Frame Material : | ROLLED STEEL | Shaft Type : | T |
| Overall Length : | 10.94 in | Frame Length : | 7.06 in |
| Shaft Diameter : | 0.63 in | Shaft Extension : | 2.32 in |
| Assembly/Box Mounting : | F1 ONLY | UPC : | 722856010599 |
