MARATHON | SKU :
EMN-015934

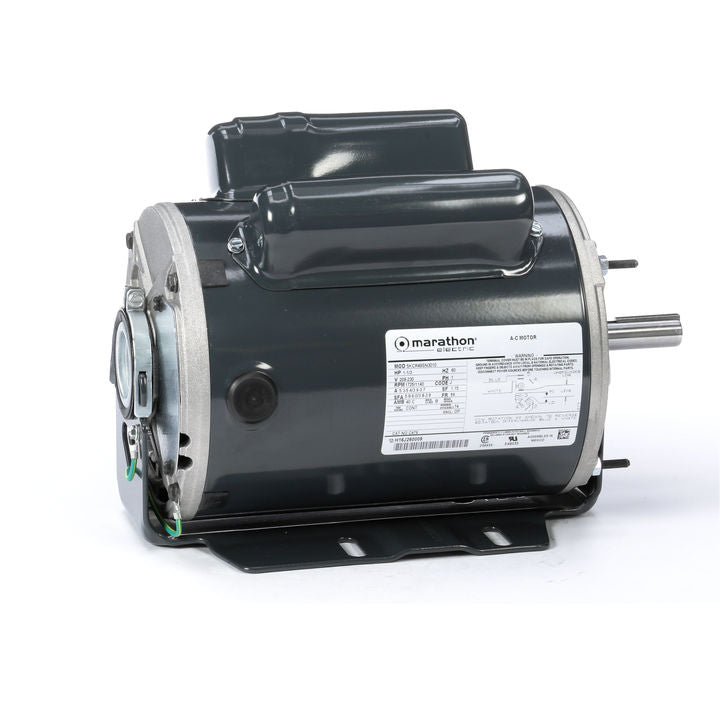

C476, MARATHON, 1 HP-1/3 HP, 208-230V,1725/1140 RPM,FR:56,5KCR49SN3010
Prix habituel
$1,235.65
Prix unitaire
/
Indisponible
C476, MARATHON, 1 HP-1/3 HP, 208-230V,1725/1140 RPM,FR:56,5KCR49SN3010 est en rupture de stock et sera expédié dès qu’il sera de retour en stock.
Impossible de charger la disponibilité pour le Service de retrait
shipping
Estimation des frais de livraison
Veuillez corriger les erreurs suivantes :
Description
Description
C476, MARATHON, 5KCR49SN3010
General Specifications
Model : | 5KCR49SN3010 | Catalog No : | C476 |
Part Description : | 1-1/3,1725/1425,DP,56,1/60/208-230 | Category : | Open Drip Proof (ODP) |
Stock : | No |
Nameplate Specifications
Output HP : | 1,0.33 Hp | Output KW : | 0.75 kW |
Frequency : | 60 Hz | Voltage : | 208-230 V |
Current : | 5.3-5.4,3.6-3.7 A | Speed : | 1725,1140 rpm |
Service Factor : | 1.15 | Phase : | 1 |
Efficiency : | 74 % | Duty : | Continous |
Insulation Class : | B | KVA Code : | J |
Frame : | 56 | Enclosure : | Drip Proof |
Overload Protector : | N/R | Ambient Temperature : | 40 °C |
Drive End Bearing Size : | 6203 | Opp Drive End Bearing Size : | 6203 |
UL : | Recognized | CSA : | Yes |
CE : | N |
Technical Specifications
Electrical Type : | Capacitor Start Capacitor Run(CSCR) | Starting Method : | SM |
Poles : | 4 | Rotation : | Counterclockwise/Clockwise |
Mounting : | Resilient Base | Motor Orientation : | ANY |
Drive End Bearing : | BALL | Opp Drive End Bearing : | BALL |
Frame Material : | Rolled Steel | Overall Length : | 12.01 in |
Frame Length : | 7.68 in | Shaft Diameter : | 0.63 in |
Shaft Extension : | 1.88 in | UPC : | 722856048547 |
Weight : | 35.00 LB |
