B334, MARATHON, 1 HP-1/3 HP, 115V, 1725/1140 RPM, FR: 56, 056B17D5702 - HVAC ELECTRIC MOTOR - MARATHON - electric motors - [product_tags]- motor electric - moteur électrique - moteurs - drive - replacement - venmar - hvac - méchoui - capacitor - condensateur

B334, MARATHON, 1 HP-1/3 HP, 115V, 1725/1140 RPM, FR: 56, 056B17D5702

MARATHON

  • $1,037.92

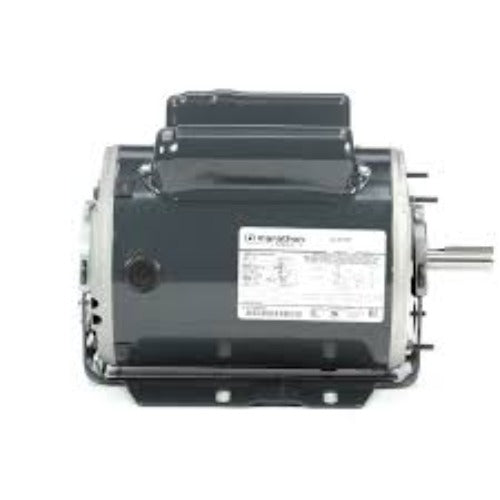

B334, 056B17D5702, OBSELETE SEE C475, MARATHON, 5KCR49SN3009

General Specifications

Model :
056B17D5702
Catalog No : B334
Part Description : 1-1/3,1725/1140,DP,56,1/60/115 Category : Fan and Blower
Stock : Yes
Nameplate Specifications

Technical Specifications

Electrical Type : Capacitor Start Capacitor Run(CSCR) Starting Method : SM
Poles : 4 Rotation : Selective Counterclockwise
Mounting : Resilient Base Motor Orientation : Any
Drive End Bearing : BALL Opp Drive End Bearing : BALL
Frame Material : Rolled Steel Overall Length : 12.01 in
Frame Length : 7.68 in Shaft Diameter : 0.630 in
Shaft Extension : 1.88 in Thru-bolts Extension : 0
UPC : 722856048530 Weight : 35.00 LB
