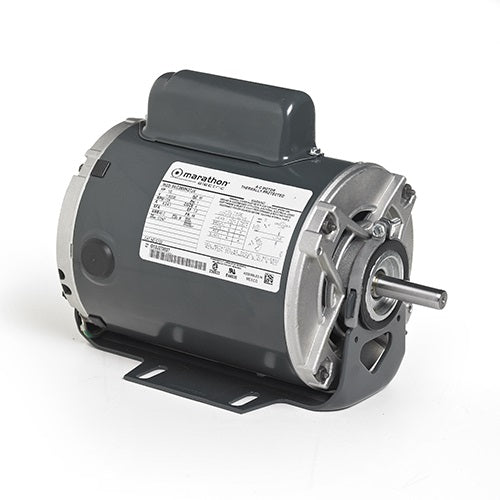

MARATHON  |  SKU : EMN-000179

B317, Marathon. 1/2 Hp, 0.50 HP, 1800 Rpm, 115/230V,Fr 56H,056C17D2072,

$375.57
shipping

Estimation des frais de livraison

Description

B317, Marathon, 5KC36MNB527X,D12CPA2PH9,Us Motors,

General Specifications

UPC: 722856023179 Weight: 20.00 LB
Packaged Length: 13.69 IN Packaged Width: 7.31 IN
Packaged Height: 9.5 IN

Nameplate Specifications

Output HP: 0.50 Hp Output KW: 0.37 kW
Frequency: 60 Hz Voltage: 115/208-230 V
Current: 8.0/4.1-4.0 A Speed: 1725 rpm
Service Factor: 1.25 Phase: 1
Efficiency: 66 % Power Factor: 64
Duty: Continuous Insulation Class: B
Design Code: NO DESIGN CODE KVA Code: H
Frame: 56 Enclosure: Drip Proof
Thermal Protection: Automatic Ambient Temperature: 40 °C
Drive End Bearing Size: 6203 Opp Drive End Bearing Size: 6203
UL: Recognized CSA: Y
CE: N IP Code: 22
Number of Speeds: 1

Technical Specifications

Electrical Type: Capacitor Start Induction Run Starting Method: Across The Line
Poles: 4 Rotation: Selective Counterclockwise
Resistance Main: 0 Ohms Mounting: Resilient Base - Extended Studs
Motor Orientation: Horizontal Drive End Bearing: Ball
Opp Drive End Bearing: Ball Frame Material: Rolled Steel
Shaft Type: T Overall Length: 10.32 in
Shaft Diameter: 0.625 in Shaft Extension: 1.88 in
Assembly/Box Mounting: F1 ONLY

Speed Characteristics

Curvepoint Current (Amps) Current (%) Torque (OZ-FT) Torque (%) Speed (RPM) Rated Output (KW) Power Factor (%) Rated Output (Hp)
Full Load 3.70 100.0 24.30 100.0 1,730 0.57 64.0 0.50
Locked-Rotor 15.17 410.0 45.10 186.0 0 3.00 86.0 0.50
Break-Down 8.70 235.0 53.72 221.0 1,475 1.63 0.0 0.50

Load Characteristics

% of Rated Load 0 % 25 % 50 % 75 % 100 % 125 % 150 %
Current (Amps) 2.60 2.70 2.91 3.22 3.70 4.20 4.80
Rated Output (KW) 0.13 0.22 0.33 0.45 0.57 0.70 0.85
Efficiency (%) 0.0 42.5 57.5 63.5 65.5 66.0 64.0
Power Factor (%) 21.0 36.0 49.5 60.0 64.0 73.0 77.5
Speed (RPM) 1,795 1,780 1,765 1,745 1,730 1,705 1,680
Temp. Rise @ FL 0.0 0.0 0.0 0.0 0.0 0.0 0.0
Torque (OZ-FT) 0.00 6.07 12.15 18.23 24.30 30.38 36.45

    REPLACED MODEL,  056C17D2072,B317, MARATHON, 1800 RPM, 056C17D2072, D6084, B317, 3K199, RL1304A, 3874, 100011, C48H4C1, C48H4C11, C48H4C11A1, C48H4C11A2, C48H4C11B1, C48H4C2, C48H4C2A1, C48H4C2A2, C48J4C1, C48J4C10A1, C48J4C11, C48J4C11A1, C48J4C11A2, C48J4C1A1, C48J4C2, C48J4C2A1, C48J4CA11A1, C56H4A14, C56H4A15, C56H4C1, C56H4C11, C56H4C1B1, C56H4C2, C56H4C2B1, C56J4A2, C56J4A21, C56J4A22, C56J4C1, C56J4C10, C56J4C103, C56J4C10B1, C56J4C11, C56J4C11A1, C56J4C11A2, C56J4C1B1, C56J4C2, S48J4C11, S48J4C11A1, S48J4C11A2, S48J4C11A3, S48J4C11A4, S48J4C11B1, S48J4C11C1,S48J4C11C2,Carrier/BDP 57699-D1,Carrier HC43DX605, Carrier/BDP HC44DX608, Carrier/BDP HC44GL700,Carrier/BDP P267, C461, 1722,C1153,C223,C416,S88-180,G175,Q56C17D2031, Q56C17D2072, Q56C17D2079
