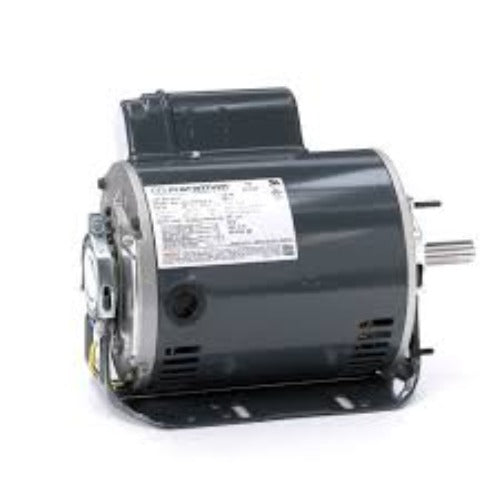

B311, Marathon, 1 Hp, 1725 Rpm, 115-208/230V, 4688, 056C17D5322,FR:56

MARATHON

$589.36

B311, MARATHON, 4688, 056C17D5322

Nameplate Specifications

Output HP:	1 Hp	Output KW:	0.75 kW
Frequency:	60 Hz	Voltage:	115/208-230 V
Current:	12.8/6.4-6.4 A	Speed:	1725 rpm
Service Factor:	1.15	Phase:	1
Efficiency:	72 %	Power Factor:	69.5
Duty:	Continous	Insulation Class:	B
Design Code:	NO DESIGN CODE	KVA Code:	H
Frame:	56	Enclosure:	Drip Proof
Thermal Protection:	Automatic	Ambient Temperature:	40 °C
Drive End Bearing Size:	6203	Opp Drive End Bearing Size:	6203
UL:	Recognized	CSA:	Y
CE:	N	IP Code:	22

Technical Specifications

Electrical Type:	Capacitor Start Induction Run	Starting Method:	Across The Line
Poles:	4	Rotation:	Selective Counterclockwise
Resistance Main:	0 Ohms	Mounting:	Resilient Base - Extended Studs
Motor Orientation:	Horizontal	Drive End Bearing:	Ball
Opp Drive End Bearing:	Ball	Frame Material:	Rolled Steel
Shaft Type:	T	Overall Length:	11.35 in
Shaft Diameter:	0.625 in	Shaft Extension:	1.88 in
Assembly/Box Mounting:	F1 ONLY
