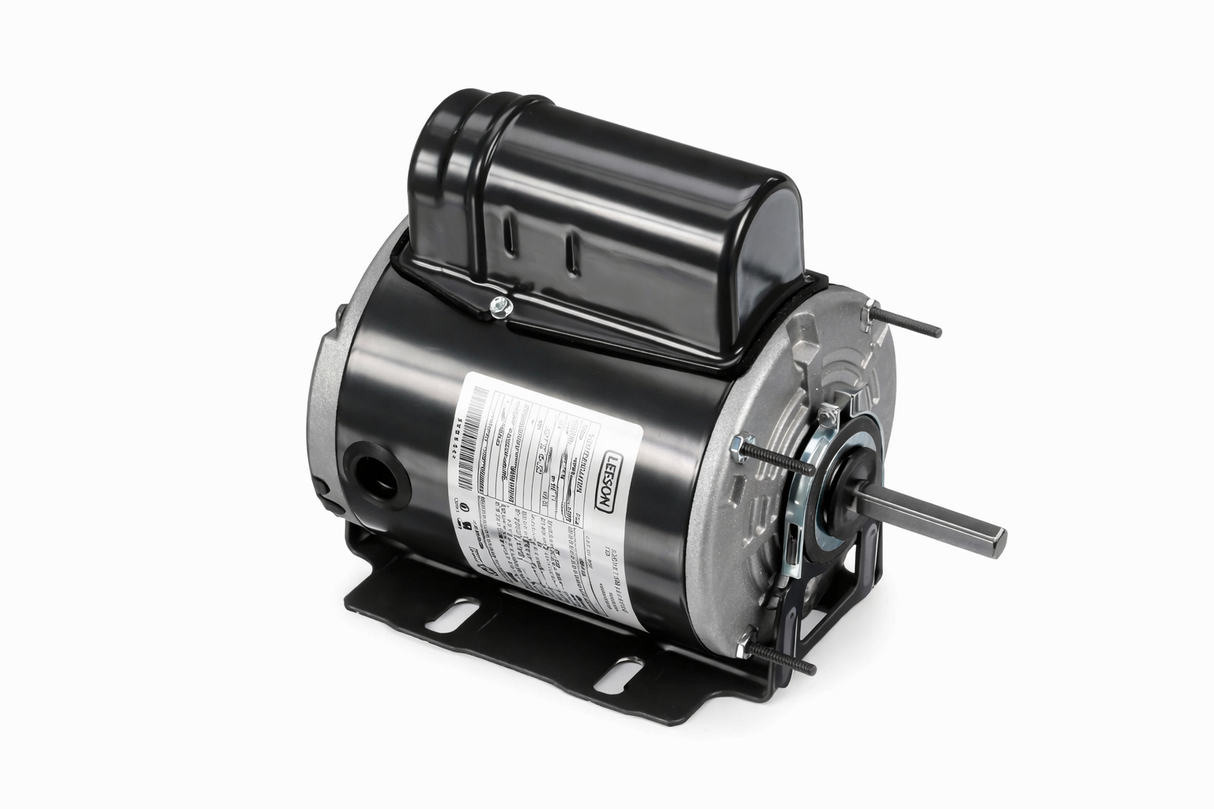

X027, General Purpose Farm Duty Motor, 0.25Hp, 1 Ph, 60 Hz, 115/230 V, 1075 RPM, 48Y Frame, TEAO, 048A11T2021

X027, General Purpose Farm Duty Motor, 0.25Hp, 1 Ph, 60 Hz, 115/230 V, 1075 RPM, 48Y Frame, TEAO, 048A11T2021

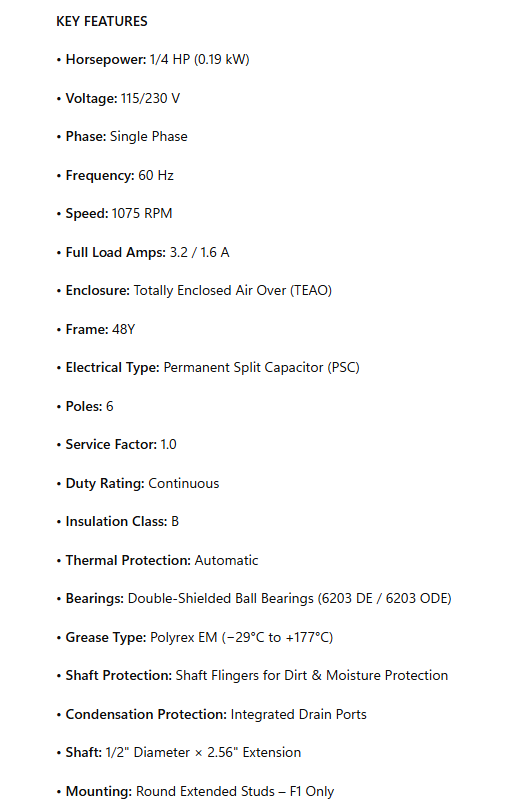

• Voltage: 115/230 V

• Phase: Single Phase

• Frequency: 60 Hz

• Speed: 1075 RPM

• Full Load Amps: 3.2 / 1.6 A

• Enclosure: Totally Enclosed Air Over (TEAO)

• Frame: 48Y

• Electrical Type: Permanent Split Capacitor (PSC)

• Poles: 6

• Service Factor: 1.0

• Duty Rating: Continuous

• Insulation Class: B

• Thermal Protection: Automatic

• Bearings: Double-Shielded Ball Bearings (6203 DE / 6203 ODE)

• Grease Type: Polyrex EM (−29°C to +177°C)

• Shaft Protection: Shaft Flingers for Dirt & Moisture Protection

• Condensation Protection: Integrated Drain Ports

• Shaft: 1/2" Diameter × 2.56" Extension

• Mounting: Round Extended Studs – F1 Only
