Morill  |  SKU : EMN-017314

Morill, 5100A,1/15Hp, 1550 Rpm, 115 Volts, 5SME59BVA1036, CW, 1.1A,

$236.85
shipping

Estimation des frais de livraison

Description

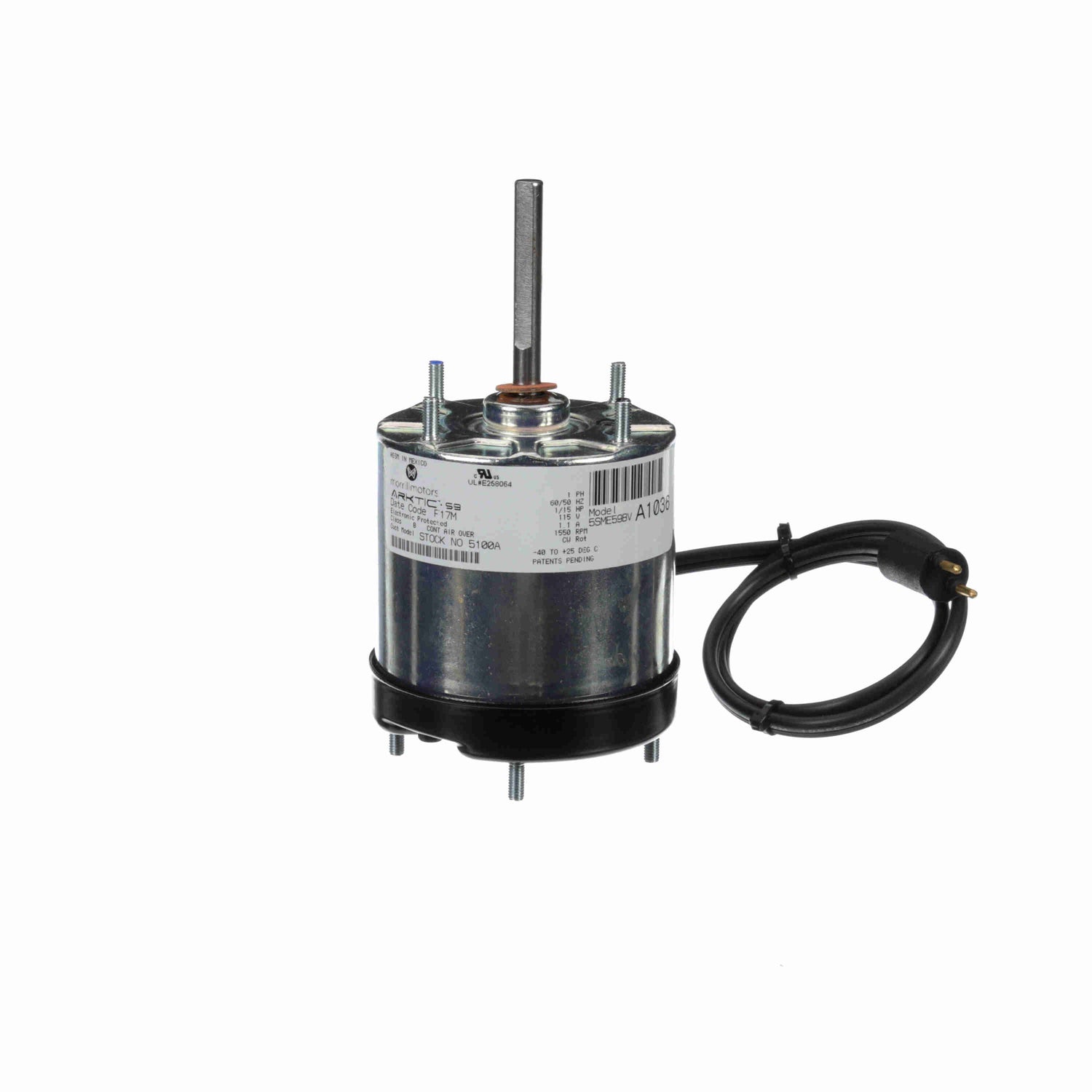

Morill Motors , Stock No 5100A,Model 5SME59BVA1036,

Nameplate Specifications

Phase: 1 Output HP: 1/15 Hp
Output KW: 0.052 kW Voltage: 115 V
Speed: 1550 rpm Frame: 3.3
Enclosure: Totally Enclosed Air Over Thermal Protection: Automatic
Ambient Temperature: 25 °C Frequency: 60/50 Hz
Current: 1.1 A Duty: Continuous Air Over
Insulation Class: B UL: Yes
CSA: Y CE: N

Technical Specifications

Electrical Type: Electronically Commutated Motor Starting Method: Across The Line
Poles: 4 Rotation: Clockwise Opposite Shaft End (CWLE)
Mounting: Extended Studs Motor Orientation: Horizontal or VSD
Drive End Bearing: Ball Opp Drive End Bearing: Ball
Frame Material: Rolled Steel Shaft Type: Flat
Overall Length: 6.74 in Frame Length: 3.67 in
Shaft Diameter: 0.312 in Shaft Extension: 2.61 in

General Specifications

UPC: 815585024613 Weight: 3.97 LB
Packaged Length: 8 IN Packaged Width: 6.5 IN
Packaged Height: 10.12 IN Country of Origin: Mexico
