FASCO | SKU :
EMN-017344

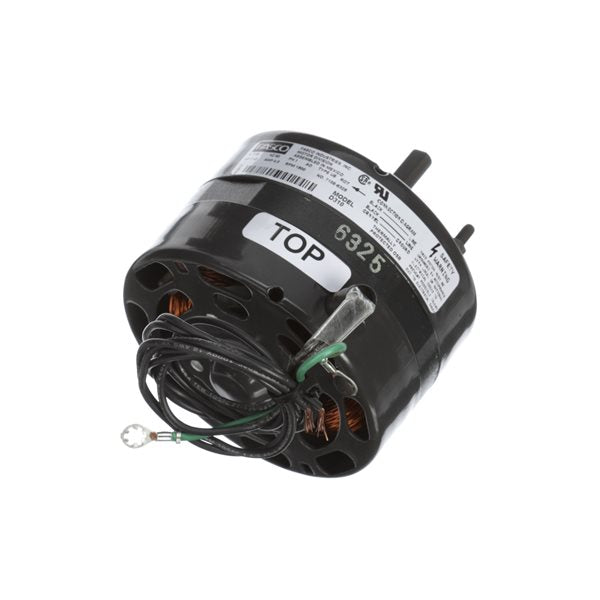

D310,Fasco, 1/12Hp,1500 Rpm,115 Volts,4.4'' Dia,Enclosure OAO,
Prix habituel
$449.52
Prix unitaire
/
Indisponible
D310,Fasco, 1/12Hp,1500 Rpm,115 Volts,4.4'' Dia,Enclosure OAO, est en rupture de stock et sera expédié dès qu’il sera de retour en stock.
Impossible de charger la disponibilité pour le Service de retrait
shipping
Estimation des frais de livraison
Veuillez corriger les erreurs suivantes :
D310,Fasco, 1/12Hp,1500 Rpm,115 Volts,4.4'' Dia,Enclosure OAO,
Prix habituel
$449.52
Prix unitaire
/
Indisponible
Description
Description
D310,Fasco

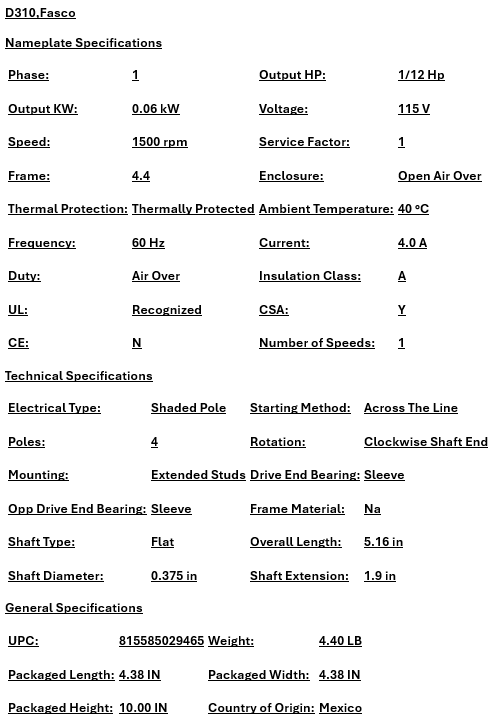

Nameplate Specifications
| Phase: | 1 | Output HP: | 1/12 Hp |
| Output KW: | 0.06 kW | Voltage: | 115 V |
| Speed: | 1500 rpm | Service Factor: | 1 |
| Frame: | 4.4 | Enclosure: | Open Air Over |
| Thermal Protection: | Thermally Protected | Ambient Temperature: | 40 °C |
| Frequency: | 60 Hz | Current: | 4.0 A |
| Duty: | Air Over | Insulation Class: | A |
| UL: | Recognized | CSA: | Y |
| CE: | N | Number of Speeds: | 1 |
Technical Specifications
| Electrical Type: | Shaded Pole | Starting Method: | Across The Line |
| Poles: | 4 | Rotation: | Clockwise Shaft End |
| Mounting: | Extended Studs | Drive End Bearing: | Sleeve |
| Opp Drive End Bearing: | Sleeve | Frame Material: | Na |
| Shaft Type: | Flat | Overall Length: | 5.16 in |
| Shaft Diameter: | 0.375 in | Shaft Extension: | 1.9 in |
General Specifications
| UPC: | 815585029465 | Weight: | 4.40 LB |
| Packaged Length: | 4.38 IN | Packaged Width: | 4.38 IN |
| Packaged Height: | 10.00 IN | Country of Origin: | Mexico |
