CENTURY  |  SKU : EMN-016220

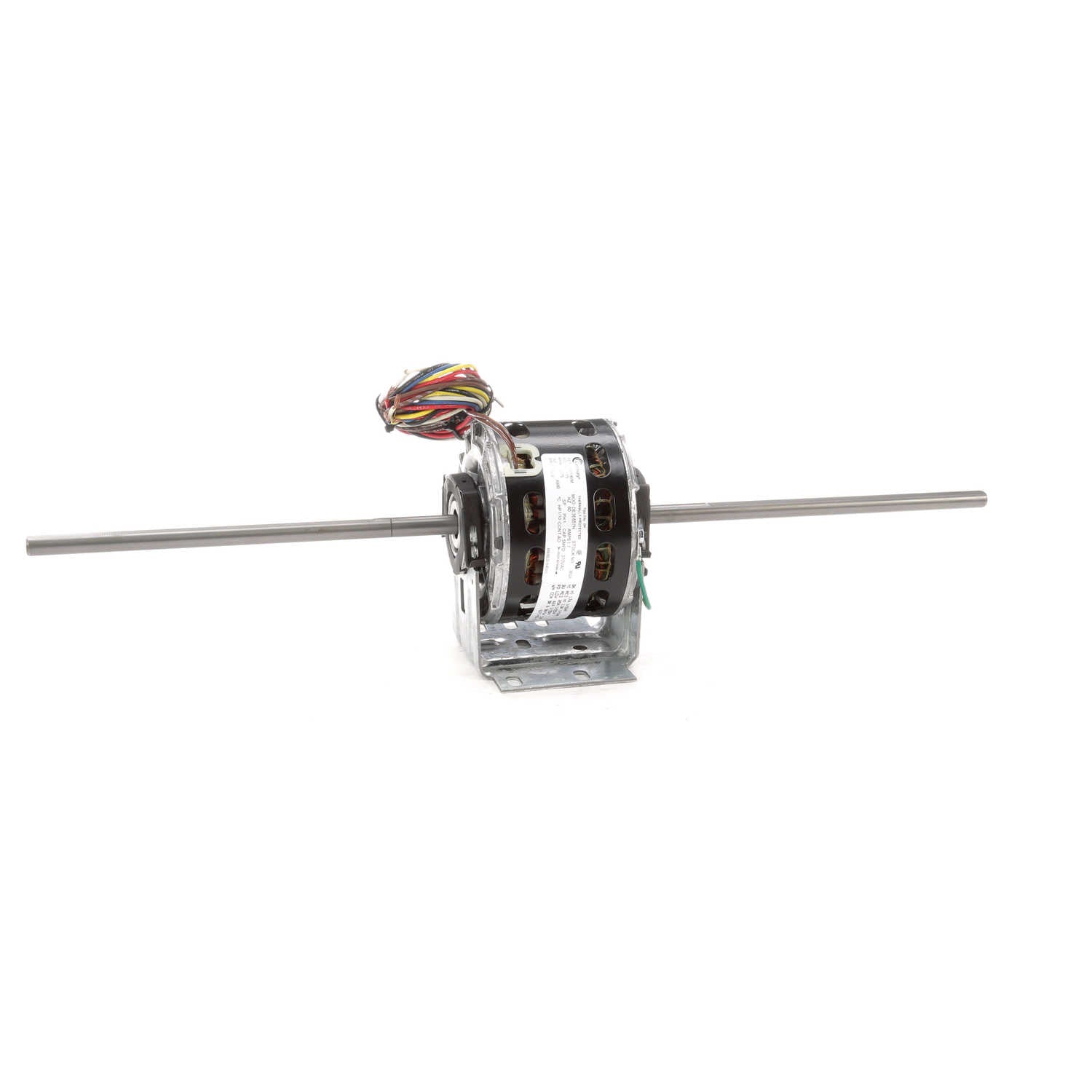

362A, Century, 1/10 HP, 1075/4 Spd, 115 Volts, Fr:42, Dbl shaft, Fan Coil, SS362, Odp,

$339.00
shipping

Estimation des frais de livraison

Description

362A, 362, 362B, Century, Ao Smith, SS362, Omnidrive , 2362SX

Nameplate Specifications
Output HP : 1/10-1/15-1/25-1/35 HP Output KW : 0.07 kW
Frequency : 60 Hz Voltage : 115 V
Current : 1.7 A Speed : 1075 RPM
Service Factor : 1 Phase : 1
Duty : Continuous Air Over Insulation Class : B
Frame : 42Y Enclosure : Open Air Over
Overload Protector : Thermally Protected Ambient Temperature : 40 °C
UL : Recognized CSA : Y
CE : N
Technical Specifications
Electrical Type : Permanent Split Capacitor Starting Method : Induction Run
Poles : 6 Rotation : Clockwise Lead End
Mounting : Resilient Base Motor Orientation : Horizontal
Drive End Bearing : Sleeve Opp Drive End Bearing : Sleeve
Frame Material : Rolled Steel Shaft Type : Flat
Overall Length : 24.75 in Frame Length : 2.92 in
Shaft Diameter : 0.500 in Shaft Extension : 10.6X.5X10.6 in
UPC : 786674070647 Weight : 11.00 LB
