E-Motor Nations | SKU :
EMN-017384

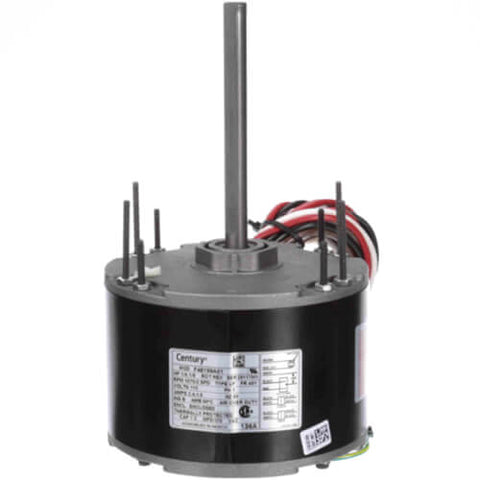

136A,Century,1/6-1/8Hp,1075Rpm, 115 Volts, 2 Speed, TEAO, Frame:48, Ball,
Prix habituel
$464.51
Prix unitaire
/
Indisponible
136A,Century,1/6-1/8Hp,1075Rpm, 115 Volts, 2 Speed, TEAO, Frame:48, Ball, est en rupture de stock et sera expédié dès qu’il sera de retour en stock.
Impossible de charger la disponibilité pour le Service de retrait
shipping
Estimation des frais de livraison
Veuillez corriger les erreurs suivantes :
136A,Century,1/6-1/8Hp,1075Rpm, 115 Volts, 2 Speed, TEAO, Frame:48,...
Prix habituel
$464.51
Prix unitaire
/
Indisponible
Description
Description

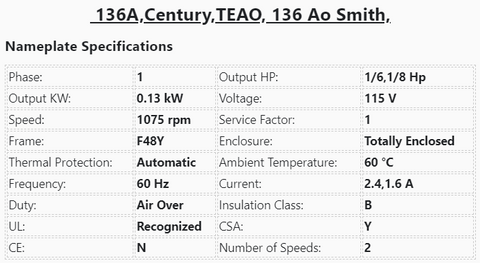

136A,Century,TEAO, 136 Ao Smith,
Nameplate Specifications
| Phase: | 1 | Output HP: | 1/6,1/8 Hp |
| Output KW: | 0.13 kW | Voltage: | 115 V |
| Speed: | 1075 rpm | Service Factor: | 1 |
| Frame: | F48Y | Enclosure: | Totally Enclosed |
| Thermal Protection: | Automatic | Ambient Temperature: | 60 °C |
| Frequency: | 60 Hz | Current: | 2.4,1.6 A |
| Duty: | Air Over | Insulation Class: | B |
| UL: | Recognized | CSA: | Y |
| CE: | N | Number of Speeds: | 2 |

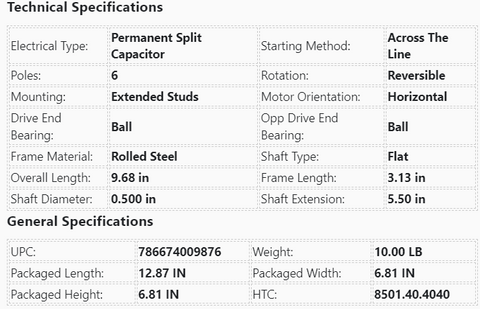

Technical Specifications
| Electrical Type: | Permanent Split Capacitor | Starting Method: | Across The Line |
| Poles: | 6 | Rotation: | Reversible |
| Mounting: | Extended Studs | Motor Orientation: | Horizontal |
| Drive End Bearing: | Ball | Opp Drive End Bearing: | Ball |
| Frame Material: | Rolled Steel | Shaft Type: | Flat |
| Overall Length: | 9.68 in | Frame Length: | 3.13 in |
| Shaft Diameter: | 0.500 in | Shaft Extension: | 5.50 in |
General Specifications
| UPC: | 786674009876 | Weight: | 10.00 LB |
| Packaged Length: | 12.87 IN | Packaged Width: | 6.81 IN |
| Packaged Height: | 6.81 IN | HTC: | 8501.40.4040 |
- Horsepower :1/6
- Voltage :115
- Amps :2.40
- RPM :1075
- Frequency :60 Hz
- Length :3-3/4"
- "C" Dim. :9-7/32"
- Enclosure :Totally Enclosed Air Over
- Shaft Dim. :1/2" x 5-1/2"
- Type :Permanent Split Capacitor
- Speeds :2
- Diameter :5-5/8"
- Frame :48Y
- Bearings :Ball
- Rotation :Reversible
- Protector :Automatic
- Service Factor :1.00
- Phase :1
- Ambient Temp. :60°C
- Capacitor Rating :7.5MFD-370V
- Feature(s) :Class 'B' Insulation, No Base, Resilient rings and Thru-bolts included
- Weight (lbs.) :10
- Unit Heater Fan Motor
- 5.6" Diameter - 48 Frame
- Permanent Split Capacitor (PSC); Capacitor Required: 7.5 Mfd-370 Volts (Not Supplied with Motor)
- Thermally Protected
- Totally Enclosed Air Over
- Class B Insulation, 60°C Ambient
- Ball Bearing
- 1/2" Diameter Shaft with Flat
- 12" Leads
- Extended Studs Shaft End, Resilient Ring Mounting
