MARATHON | SKU :
EMN-007505

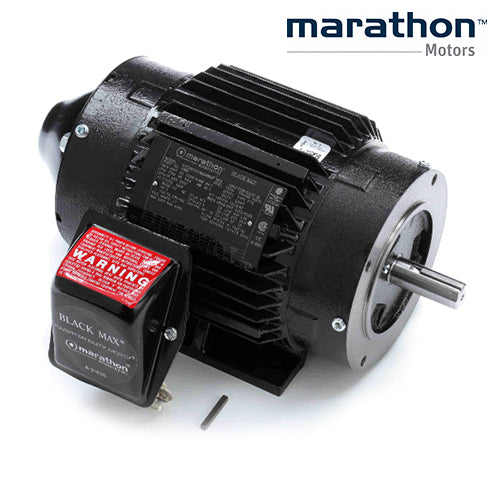

Y551, Marathon, 2 HP, 1725 RPM, 230/460V, 145TC, 145THTN6046, BLACMAX,1000:1
Prix habituel
$1,522.85
Prix unitaire
/
Indisponible
Y551, Marathon, 2 HP, 1725 RPM, 230/460V, 145TC, 145THTN6046, BLACMAX,1000:1 - Motor Marathon Y551 Without brake kits est en rupture de stock et sera expédié dès qu’il sera de retour en stock.
Impossible de charger la disponibilité pour le Service de retrait
shipping
Estimation des frais de livraison
Veuillez corriger les erreurs suivantes :
![Y551, Marathon, 2 HP, 1725 RPM, 230/460V, 145TC, 145THTN6046, BLACMAX,1000:1 - BLACKMAX MOTORS - MARATHON - electric motors - [product_tags]- motor electric - moteur électrique - moteurs - drive - replacement - venmar - hvac - méchoui - capacitor - condensateur](http://www.emotornations.com/cdn/shop/products/Y551_145THTN6046_MARATHON.jpg?v=1756479745&width=112)
Y551, Marathon, 2 HP, 1725 RPM, 230/460V, 145TC, 145THTN6046, BLACM...
Prix habituel
De
$1,522.85
Prix unitaire
/
Indisponible
Description
Description
Y551, Blackmax, Marathon, 145THTN6046
General Specifications
| Model : | 145THTN6046 | Catalog No : | Y551 |
| Part Description : | 2,1800,TENV,145TC,3/60/230/460 | Category : | 1000:1 Speed Ratio |
| Stock : | Yes |
Nameplate Specifications
| Output HP : | 2 Hp | Output KW : | 1.5 kW |
| Frequency : | 60 Hz | Voltage : | 230/460 V |
| Current : | 6.0/3.0 A | Speed : | 1750 rpm |
| Service Factor : | 1 | Phase : | 3 |
| Efficiency : | 85.5 % | Duty : | Continous |
| Insulation Class : | F | Design Code : | INV |
| KVA Code : | M | Frame : | 145TC |
| Enclosure : | Totally Enclosed Non Ventilated | Overload Protector : | No |
| Ambient Temperature : | 40 °C | Drive End Bearing Size : | 6205 |
| Opp Drive End Bearing Size : | 6205 | UL : | Recognized |
| CSA : | Y | CE : | Y |
| IP Code : | 43 |
Technical Specifications
| Electrical Type : | Squirrel Cage Inverter Duty | Starting Method : | Inverter Only |
| Poles : | 4 | Rotation : | Reversible |
| Mounting : | Rigid Base | Motor Orientation : | Horizontal |
| Drive End Bearing : | Ball | Opp Drive End Bearing : | Ball |
| Frame Material : | Cast Iron | Shaft Type : | T |
| Overall Length : | 14.68 in | Frame Length : | 6.25 in |
| Shaft Diameter : | 0.875 in | Shaft Extension : | 2.12 in |
| Assembly/Box Mounting : | F1/F2 Capable | UPC : | 722856024862 |
| Weight : | 73.00 LB |
