MAX MOTION | SKU : EMN-008667-1ta

ALUMINUM GEARBOX RIGHT ANGLE, MMR90, MAX MOTION, GEARBOX REDUCER, see availlable ratios

$1,068.52

shipping

Estimation des frais de livraison

Pays

Code postal

Description

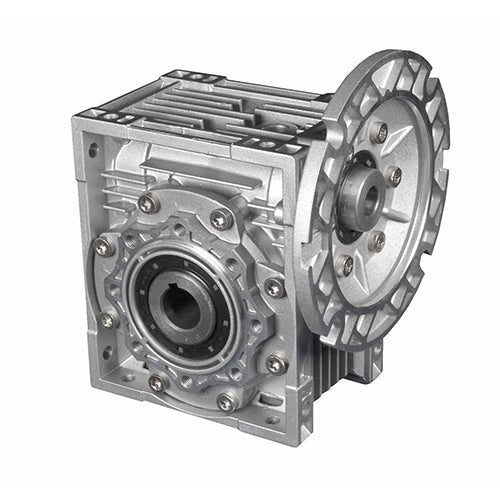

MAX MOTION MMR90-100-56C

Availables Models:

MMR90-10-56C, MMR90-15-56C, MMR90-20-56C, MMR90-25-56C, MMR90-30-56C, MMR90-40-56C, MMR90-50-56C, MMR90-60-56C, MMR90-80-56C, MMR90-100-56C

Product Highlights

Right Angle Gear Reducer (Aluminum)
1.12 Max HP
56C, 1.375" Hollow Bore

Features

Aluminum alloy Housing with heat sink design.
Two bearings on Input shaft.
NEMA C Face input.
Double-lip oil seals.
O-rings on input and output covers.
Hardened worm shaft.
Standard hollow shaft output shaft design.
Permanently sealed with synthetic lubrication.

Benefits

Resists wash down & has higher thermal capacity.
Allows true alignment & prevents oil leaks.
Allows use of standard NEMA motors.
Prevents leaks and avoids oil contamination.
Seals better than paper gaskets.
Increases durability over forged design.
Plug-in solid shafts for greater mounting flexibility.
Maintenance free, no breather or fill plugs.

Input Type: 56C

Output Type: 1.375" Hollow Bore

Max HP: 1.12

Service Factor 1: 1.12 SF @ 1 HP

Service Factor 2: 1.49 SF @ 3/4 HP

Service Factor 3: 2.24 SF @ 1/2 HP

Max Output Torque: 2389

Max Overhung Load: 1524

Case Material: Aluminum

Case Size: 90

Weight: 30lb

Type of Oil: Mobil Glygoyle 460 polyalkylene glycol (Mobil PAG 460)

Country of Origin: CHINA

Warranty: 12 Months from the Date of Installation or 18 Months from the Date Purchased
