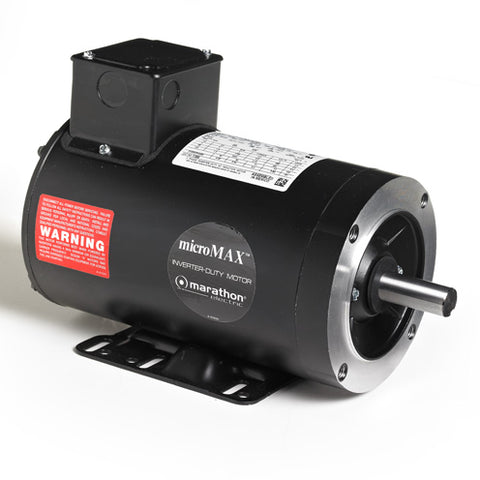

Y360, Marathon, MicroMax, 1/2 Hp, 1725 Rpm, 230/460V, 56C, 056H17T2017

MARATHON

$594.57

Y360, Marathon, Part # 056H17T2017

Nameplate Specifications

Output HP:	0.50 Hp	Output KW:	0.37 kW
Frequency:	60 Hz	Voltage:	230/460 V
Current:	1.8/0.90 A	Speed:	1725 rpm
Service Factor:	1	Phase:	3
Efficiency:	74 %	Power Factor:	69
Duty:	Continuous	Insulation Class:	H
Design Code:	INV	KVA Code:	N
Frame:	56C	Enclosure:	Totally Enclosed Non Ventilated
Thermal Protection:	No	Ambient Temperature:	40 °C
Drive End Bearing Size:	6203	Opp Drive End Bearing Size:	6203
UL:	Recognized	CSA:	Y
CE:	Y	IP Code:	43

Technical Specifications

Electrical Type:	Squirrel Cage Inverter Duty	Starting Method:	Inverter Only
Poles:	4	Rotation:	Reversible
Resistance Main:	29.2 Ohms	Mounting:	Rigid Base
Motor Orientation:	Horizontal	Drive End Bearing:	Ball
Opp Drive End Bearing:	Ball	Frame Material:	Rolled Steel
Shaft Type:	NEMA 56	Overall Length:	9.81 in
Frame Length:	6.25 in	Shaft Diameter:	0.625 in
Shaft Extension:	2.06 in	Assembly/Box Mounting:	F3
