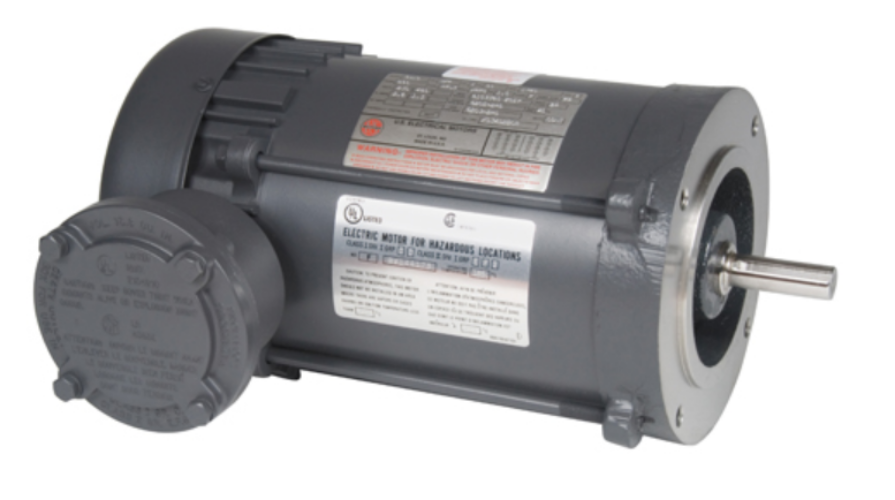

XS13CA2J, EXPLOSION PROOF MOTOR, 1/3Hp, 1725 RPM, 115/208-230V, 1PH, 60Hz, EPFC, Fr. 56, CH63ABF1027015B

 XS13CA2J, EXPLOSION PROOF MOTOR, 1/3Hp, 1725 RPM, 115/208-230V, 1PH, 60Hz, EPFC, Fr. 56, CH63ABF1027015B

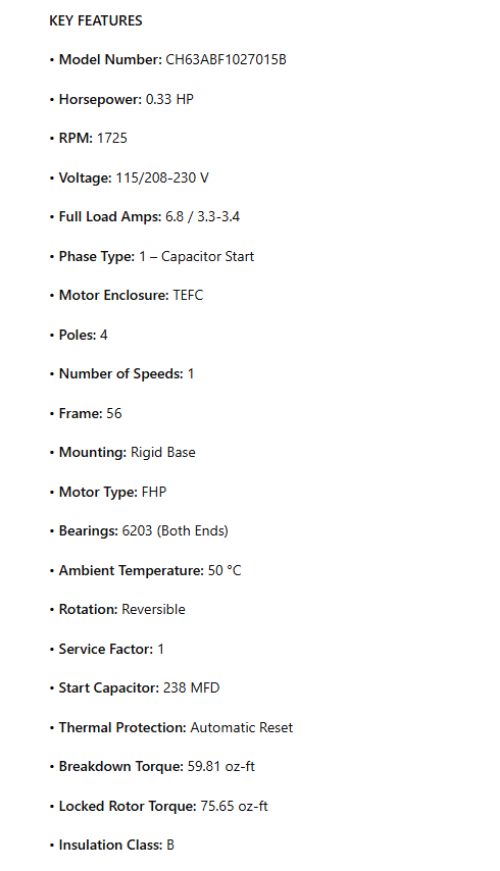

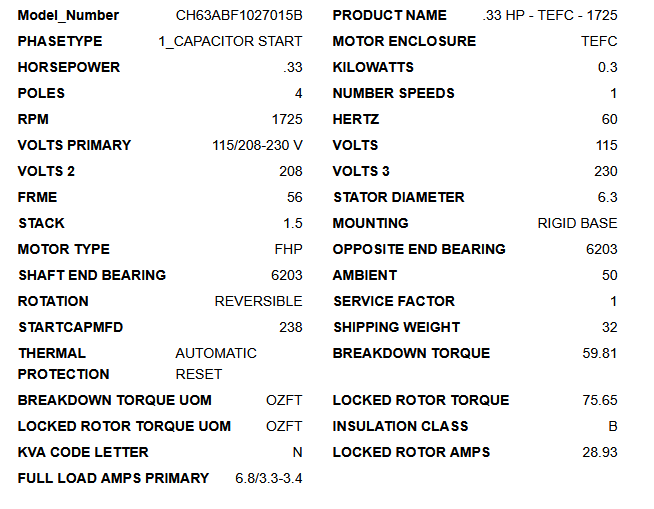

KEY FEATURES

• Model Number: CH63ABF1027015B

• Horsepower: 0.33 HP

• RPM: 1725

• Voltage: 115/208-230 V

• Full Load Amps: 6.8 / 3.3-3.4

• Phase Type: 1 – Capacitor Start

• Motor Enclosure: TEFC

• Poles: 4

• Number of Speeds: 1

• Frame: 56

• Mounting: Rigid Base

• Motor Type: FHP

• Bearings: 6203 (Both Ends)

• Ambient Temperature: 50 °C

• Rotation: Reversible

• Service Factor: 1

• Start Capacitor: 238 MFD

• Thermal Protection: Automatic Reset

• Breakdown Torque: 59.81 oz-ft

• Locked Rotor Torque: 75.65 oz-ft

• Insulation Class: B
