X458, Condenser Fan Motor, 0.50 HP, 1 Ph, 60 Hz, 460 V, 1075 RPM, 48Y Frame, TEAO

E-Motor Nations

$424.98

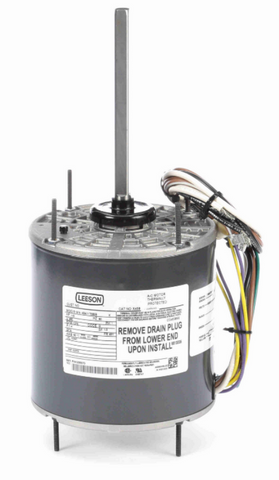

X458, LEESON Condenser Fan Motor, 0.50 HP, 1 Ph, 60 Hz, 460 V, 1075 RPM, 48Y Frame, TEAO

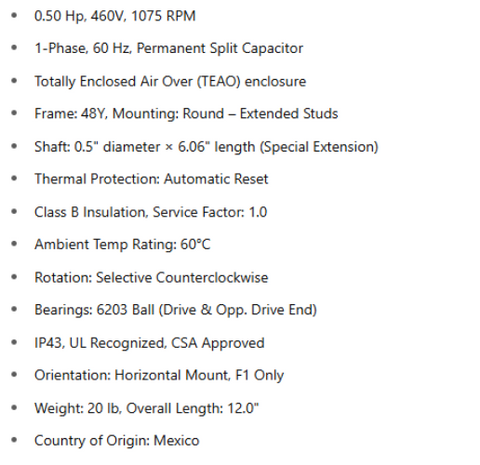

0.50 Hp, 460V, 1075 RPM
1-Phase, 60 Hz, Permanent Split Capacitor
Totally Enclosed Air Over (TEAO) enclosure
Frame: 48Y, Mounting: Round – Extended Studs
Shaft: 0.5" diameter × 6.06" length (Special Extension)
Thermal Protection: Automatic Reset
Class B Insulation, Service Factor: 1.0
Ambient Temp Rating: 60°C
Rotation: Selective Counterclockwise
Bearings: 6203 Ball (Drive & Opp. Drive End)
IP43, UL Recognized, CSA Approved
Orientation: Horizontal Mount, F1 Only
Weight: 20 lb, Overall Length: 12.0"
Country of Origin: Mexico

Automatic reset thermal protector prevents overheating.
IRIS® insulation system offers superior protection for use with a variable frequency drive.
Permanently lubricated, double-sealed bearings extend the lifetime of the motor.
Ambient temperature up to 70°C allows for consistent operation in a range of environments and applications.
Vertical/horizontal mounting for proper placement of the fan within airflow.
