BALDOR  |  SKU : EMN-019296

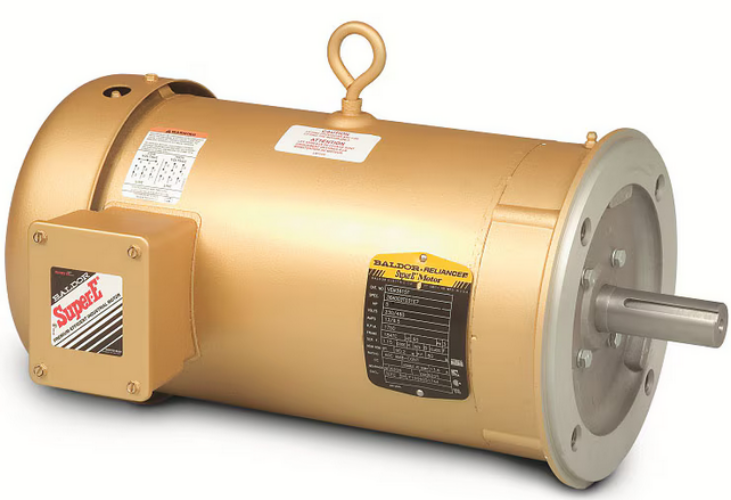

VEM3613T, Baldor 5Hp, 230/460V, 3470RPM, 3PH, 60HZ, 184TC, 3630M, TEFC, F1

$1,269.10
shipping

Estimation des frais de livraison

Description

VEM3613T, Baldor 5Hp, 230/460V, 3470RPM, 3PH, 60HZ, 184TC, 3630M, TEFC, F1

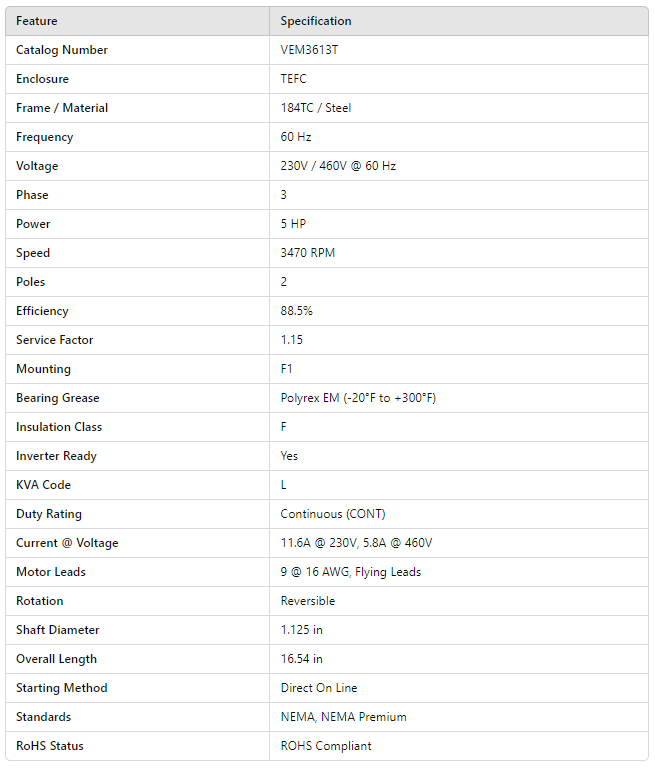

Feature Specification
Catalog Number VEM3613T
Enclosure TEFC
Frame / Material 184TC / Steel
Frequency 60 Hz
Voltage 230V / 460V @ 60 Hz
Phase 3
Power 5 HP
Speed 3470 RPM
Poles 2
Efficiency 88.5%
Service Factor 1.15
Mounting F1
Bearing Grease Polyrex EM (-20°F to +300°F)
Insulation Class F
Inverter Ready Yes
KVA Code L
Duty Rating Continuous (CONT)
Current @ Voltage 11.6A @ 230V, 5.8A @ 460V

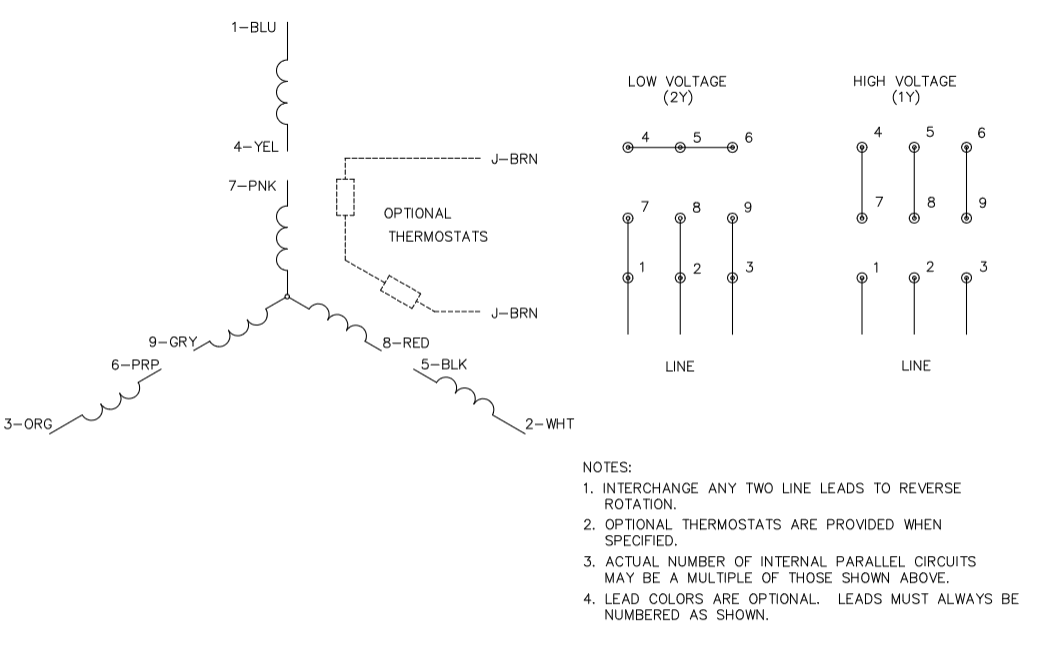

Motor Leads 9 @ 16 AWG, Flying Leads
Rotation Reversible
Shaft Diameter 1.125 in
Overall Length 16.54 in
Starting Method Direct On Line
Standards NEMA, NEMA Premium
RoHS Status ROHS Compliant
