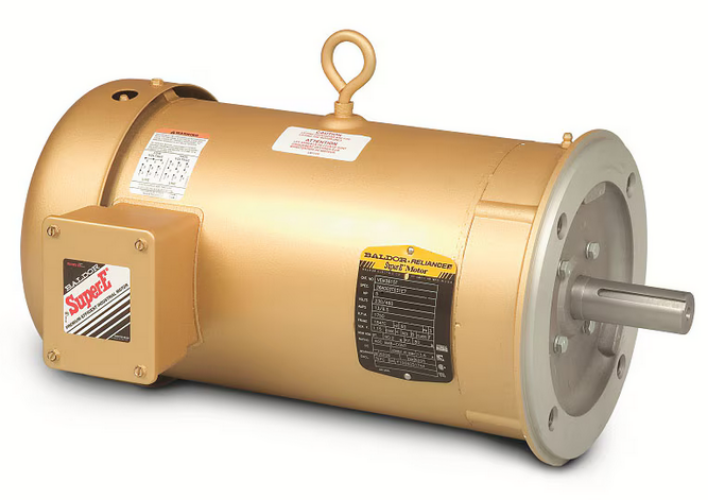

VEM3556T, 1Hp, 1170 RPM, 230/460V, 3PH, 60HZ, 145TC, 3526M, TEFC, F1
VEM3556T, 1Hp, 1170 RPM, 230/460V, 3PH, 60HZ, 145TC, 3526M, TEFC, F1 est en rupture de stock et sera expédié dès qu’il sera de retour en stock.
Impossible de charger la disponibilité pour le Service de retrait
Estimation des frais de livraison
Veuillez corriger les erreurs suivantes :
VEM3556T, 1Hp, 1170 RPM, 230/460V, 3PH, 60HZ, 145TC, 3526M, TEFC, F1
Description
Description
VEM3556T, 1Hp, 1170 RPM, 230/460V, 3PH, 60HZ, 145TC, 3526M, TEFC, F1

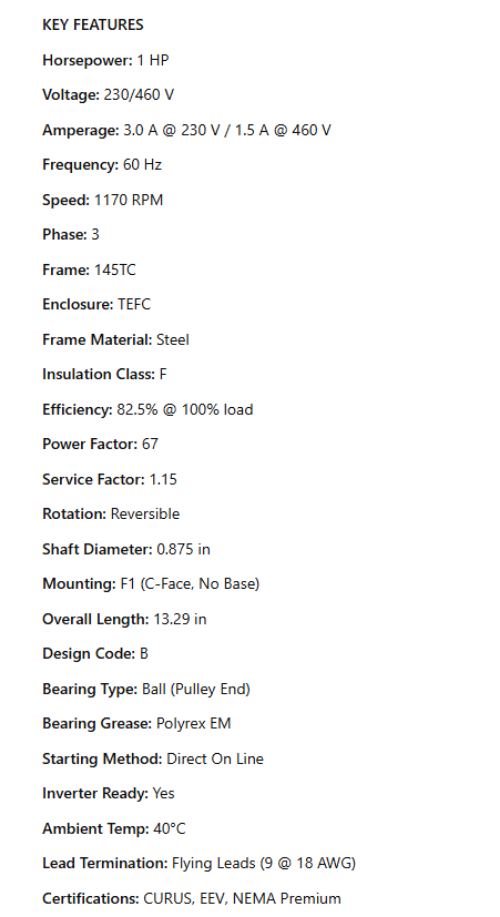

KEY FEATURES
Horsepower: 1 HP
Voltage: 230/460 V
Amperage: 3.0 A @ 230 V / 1.5 A @ 460 V
Frequency: 60 Hz
Speed: 1170 RPM
Phase: 3
Frame: 145TC
Enclosure: TEFC
Frame Material: Steel
Insulation Class: F
Efficiency: 82.5% @ 100% load
Power Factor: 67
Service Factor: 1.15
Rotation: Reversible
Shaft Diameter: 0.875 in
Mounting: F1 (C-Face, No Base)
Overall Length: 13.29 in
Design Code: B
Bearing Type: Ball (Pulley End)
Bearing Grease: Polyrex EM
Starting Method: Direct On Line
Inverter Ready: Yes
Ambient Temp: 40°C

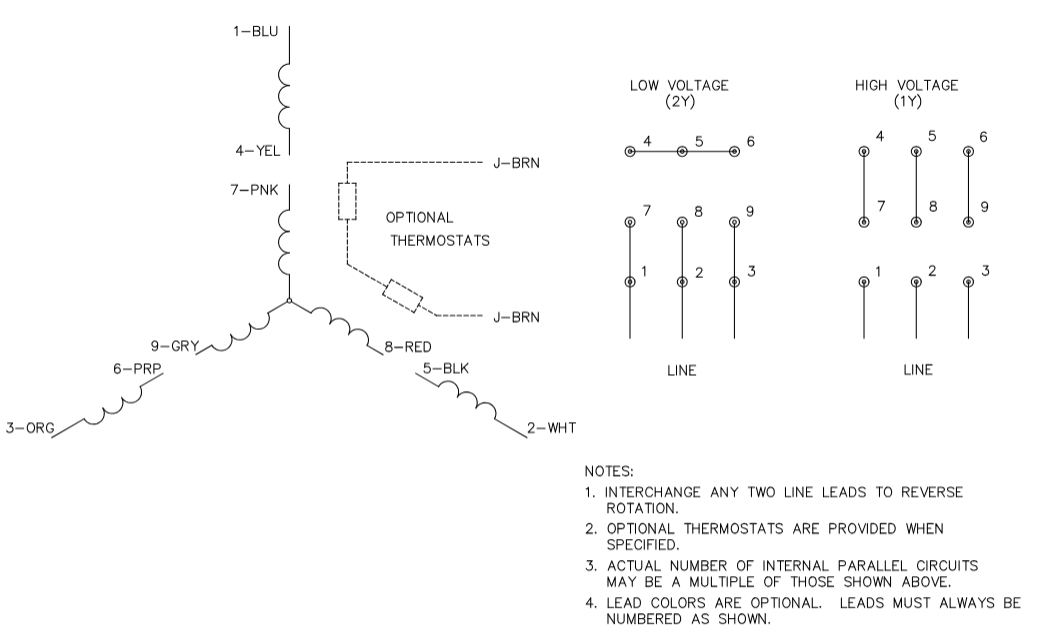

Lead Termination: Flying Leads (9 @ 18 AWG)
Certifications: CURUS, EEV, NEMA Premium
