WEG  |  SKU : EMN-019235

TF001404W01DOE, Rolled Steel Premium Efficiency 1.5Hp 1750 Rpm 4P 56H 3Ph 230/460//190-220/380-415 V 60 Hz IC411 - TEFC - Foot-mounted

$467.41
shipping

Estimation des frais de livraison

Description

TF001404W01DOE,  Rolled Steel Premium Efficiency 1.5Hp 1750 Rpm 4P 56H 3Ph 230/460//190-220/380-415 V 60 Hz IC411 - TEFC - Foot-mounted

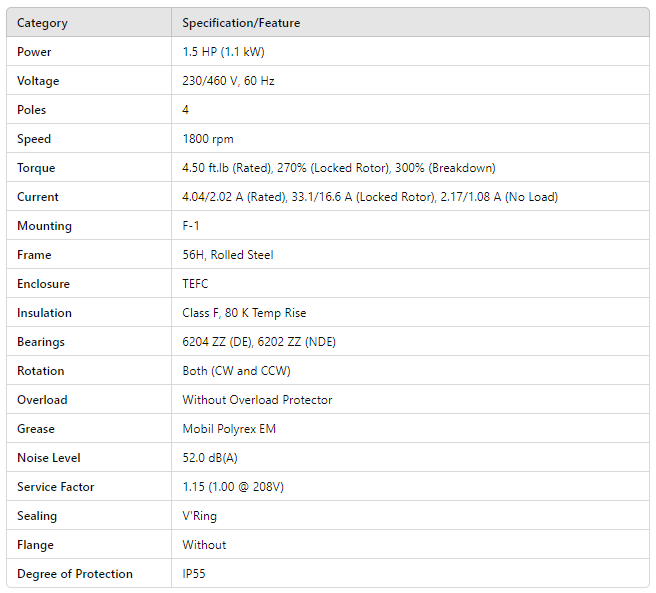

Category Specification/Feature
Power 1.5 HP (1.1 kW)
Voltage 230/460 V, 60 Hz
Poles 4
Speed 1800 rpm
Torque 4.50 ft.lb (Rated), 270% (Locked Rotor), 300% (Breakdown)
Current 4.04/2.02 A (Rated), 33.1/16.6 A (Locked Rotor), 2.17/1.08 A (No Load)
Mounting F-1
Frame 56H, Rolled Steel
Enclosure TEFC
Insulation Class F, 80 K Temp Rise
Bearings 6204 ZZ (DE), 6202 ZZ (NDE)
Rotation Both (CW and CCW)
Overload Without Overload Protector
Grease Mobil Polyrex EM
Noise Level 52.0 dB(A)
Service Factor 1.15 (1.00 @ 208V)
Sealing V'Ring
Flange Without
Degree of Protection IP55
