WEG  |  SKU : EMN-019228

TF000406W01DOE, Rolled Steel Premium Efficiency 1Hp 1145 Rpm 6P 56 3Ph 230/460//190-220/380-415 V 60 Hz IC411 - TEFC - Foot-mounted

$499.05
shipping

Estimation des frais de livraison

Description

TF000406W01DOE,  Rolled Steel Premium Efficiency 1Hp 1145 Rpm 6P 56 3Ph 230/460//190-220/380-415 V 60 Hz IC411 - TEFC - Foot-mounted

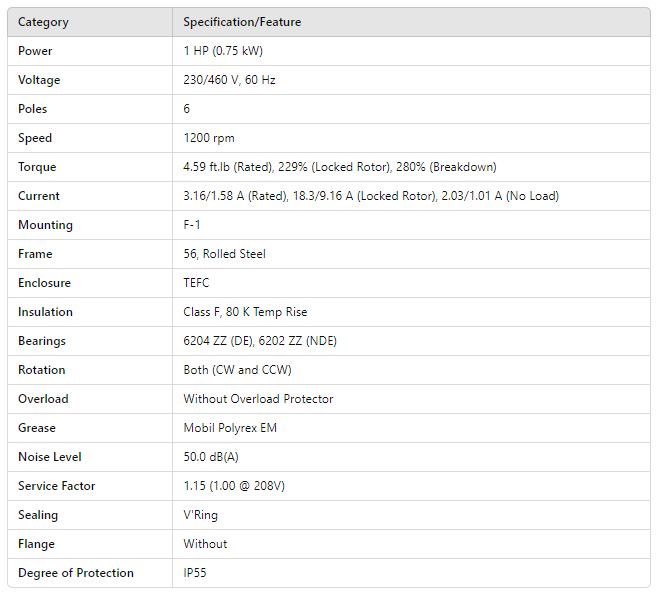

Category Specification/Feature
Power 1 HP (0.75 kW)
Voltage 230/460 V, 60 Hz
Poles 6
Speed 1200 rpm
Torque 4.59 ft.lb (Rated), 229% (Locked Rotor), 280% (Breakdown)
Current 3.16/1.58 A (Rated), 18.3/9.16 A (Locked Rotor), 2.03/1.01 A (No Load)
Mounting F-1
Frame 56, Rolled Steel
Enclosure TEFC
Insulation Class F, 80 K Temp Rise
Bearings 6204 ZZ (DE), 6202 ZZ (NDE)
Rotation Both (CW and CCW)
Overload Without Overload Protector
Grease Mobil Polyrex EM
Noise Level 50.0 dB(A)
Service Factor 1.15 (1.00 @ 208V)
Sealing V'Ring
Flange Without
Degree of Protection IP55
