WEG  |  SKU : EMN-019219

TF.75404W01DOE, Rolled Steel Premium Efficiency 0.75Hp 1760 Rpm 4P 56 3Ph 208-230/460//190-220/380-415 V 60 Hz IC411 - TEFC - Foot-mounted

$324.92
shipping

Estimation des frais de livraison

Description

TF.75404W01DOE,  Rolled Steel Premium Efficiency 0.75Hp 1760 Rpm 4P 56 3Ph 208-230/460//190-220/380-415 V 60 Hz IC411 - TEFC - Foot-mounted

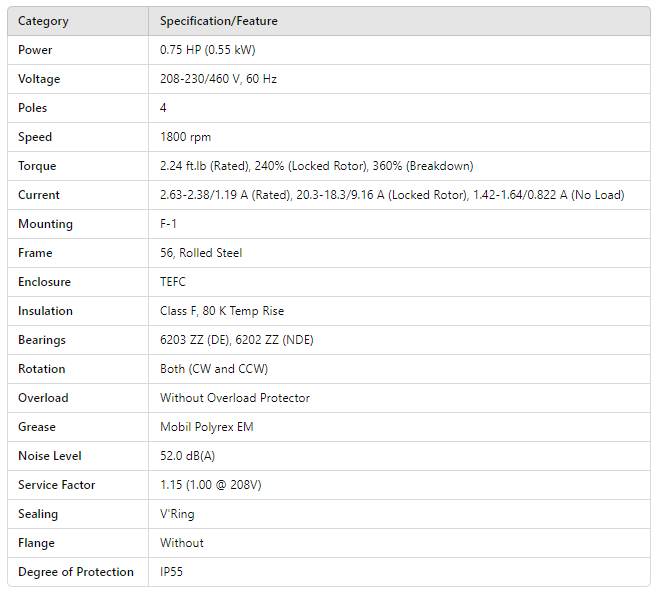

Category Specification/Feature
Power 0.75 HP (0.55 kW)
Voltage 208-230/460 V, 60 Hz
Poles 4
Speed 1800 rpm
Torque 2.24 ft.lb (Rated), 240% (Locked Rotor), 360% (Breakdown)
Current 2.63-2.38/1.19 A (Rated), 20.3-18.3/9.16 A (Locked Rotor), 1.42-1.64/0.822 A (No Load)
Mounting F-1
Frame 56, Rolled Steel
Enclosure TEFC
Insulation Class F, 80 K Temp Rise
Bearings 6203 ZZ (DE), 6202 ZZ (NDE)
Rotation Both (CW and CCW)
Overload Without Overload Protector
Grease Mobil Polyrex EM
Noise Level 52.0 dB(A)
Service Factor 1.15 (1.00 @ 208V)
Sealing V'Ring
Flange Without
Degree of Protection IP55
