US Motors - Nidec  |  SKU : EMN-019191

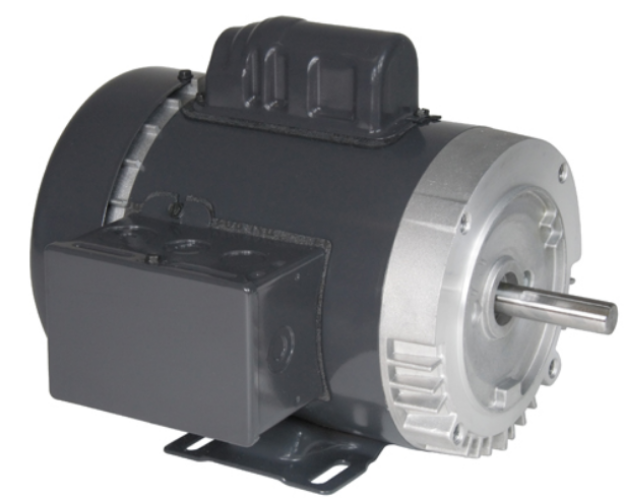

T32C1JHC,Us. Motors, 1.5Hp - TEFC - 3450 RPM - 1Ph - Model T063CZY1592015B

$444.15
shipping

Estimation des frais de livraison

Description

T32C1JHC, Us Motors ,1 Phase, Model T063CZY1592015B, Replace D314,056B34F5326, MTR-152FDCH, FD145C, Omnidrive,

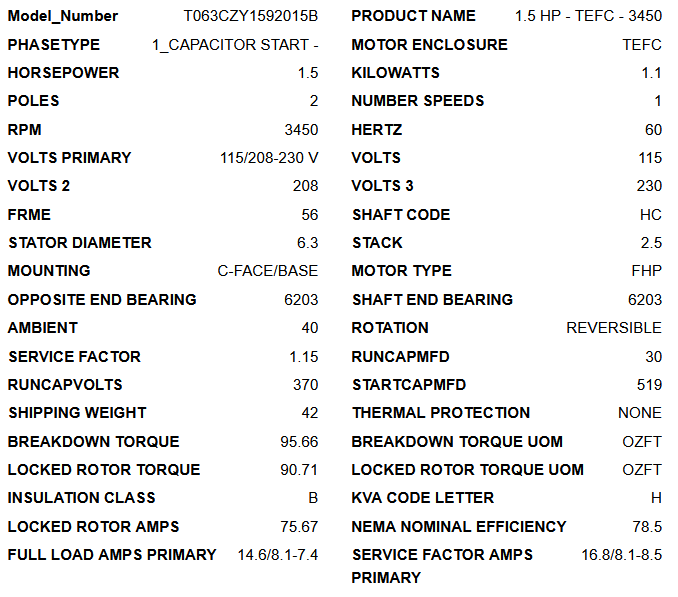

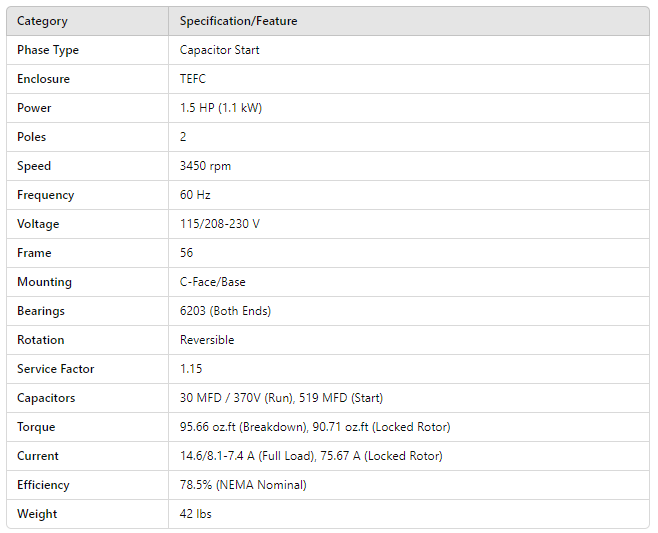

Category Specification/Feature
Phase Type Capacitor Start
Enclosure TEFC
Power 1.5 HP (1.1 kW)
Poles 2
Speed 3450 rpm
Frequency 60 Hz
Voltage 115/208-230 V
Frame 56C
Mounting C-Face/Base
Bearings 6203 (Both Ends)
Rotation Reversible
Service Factor 1.15
Capacitors 30 MFD / 370V (Run), 519 MFD (Start)
Torque 95.66 oz.ft (Breakdown), 90.71 oz.ft (Locked Rotor)
Current 14.6/8.1-7.4 A (Full Load), 75.67 A (Locked Rotor)
Efficiency 78.5% (NEMA Nominal)
Weight 42 lbs
