T1C1JC, General Purpose Capacitor Start, 1Hp, 3450 RPM, 115/208-230V, 1PH, 60Hz, TEFC, Frame 56C, C063HWF5170015B

T1C1JC, General Purpose Capacitor Start, 1Hp, 3450 RPM, 115/208-230V, 1PH, 60Hz, TEFC, Frame 56C, C063HWF5170015B

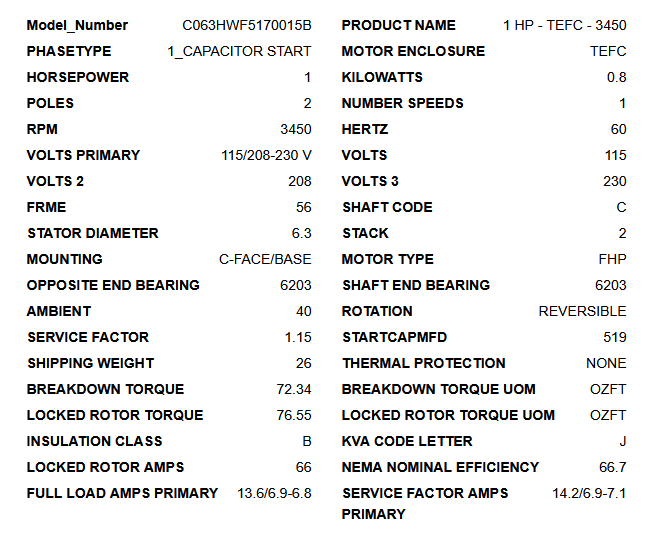

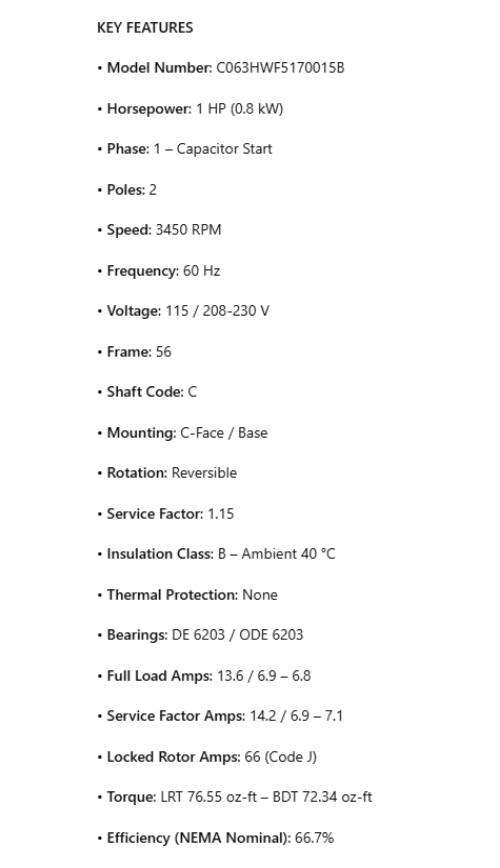

KEY FEATURES

• Model Number: C063HWF5170015B

• Horsepower: 1 HP (0.8 kW)

• Phase: 1 – Capacitor Start

• Poles: 2

• Speed: 3450 RPM

• Frequency: 60 Hz

• Voltage: 115 / 208-230 V

• Frame: 56

• Shaft Code: C

• Mounting: C-Face / Base

• Rotation: Reversible

• Service Factor: 1.15

• Insulation Class: B – Ambient 40 °C

• Thermal Protection: None

• Bearings: DE 6203 / ODE 6203

• Full Load Amps: 13.6 / 6.9 – 6.8

• Service Factor Amps: 14.2 / 6.9 – 7.1

• Locked Rotor Amps: 66 (Code J)

• Torque: LRT 76.55 oz-ft – BDT 72.34 oz-ft

• Efficiency (NEMA Nominal): 66.7%
