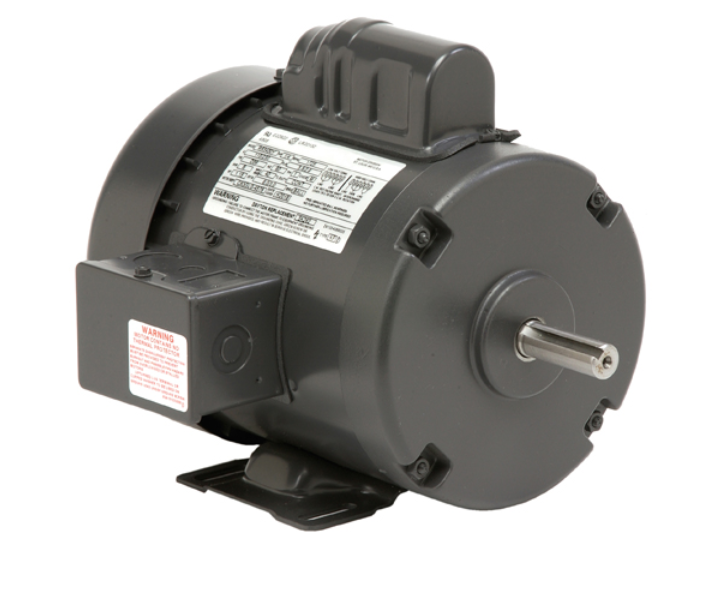

T14CM2J4, 1/4Hp, 1725 RPM, 115/208-230V, 1Ph, 60Hz, TEFC, Frame 48, C055KHW4948015B

T14CM2J4, 1/4Hp, 1725 RPM, 115/208-230V, 1Ph, 60Hz, TEFC, Frame 48, C055KHW4948015B

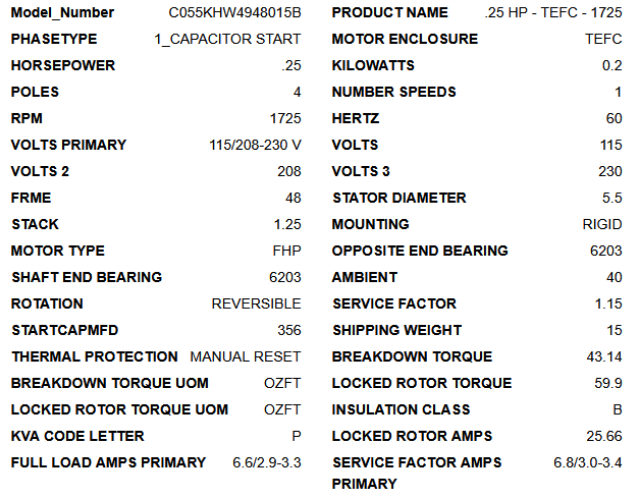

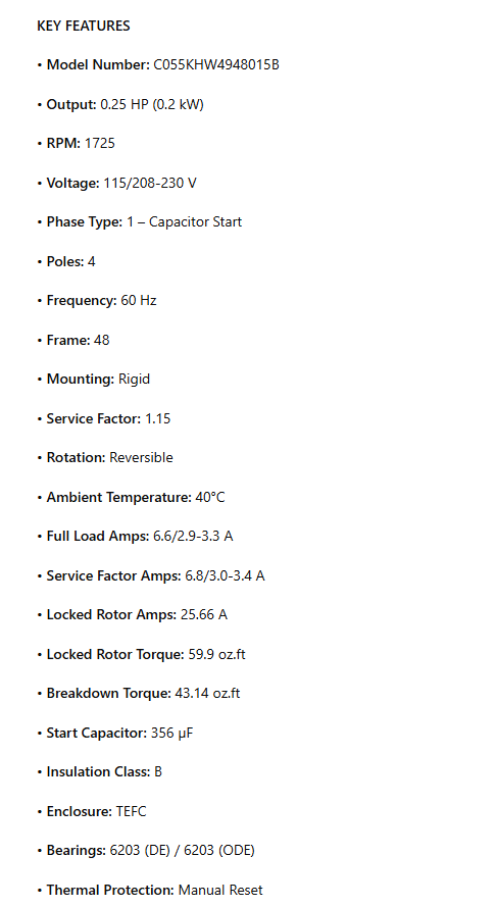

KEY FEATURES

• Model Number: C055KHW4948015B

• Output: 0.25 HP (0.2 kW)

• RPM: 1725

• Voltage: 115/208-230 V

• Phase Type: 1 – Capacitor Start

• Poles: 4

• Frequency: 60 Hz

• Frame: 48

• Mounting: Rigid

• Service Factor: 1.15

• Rotation: Reversible

• Ambient Temperature: 40°C

• Full Load Amps: 6.6/2.9-3.3 A

• Service Factor Amps: 6.8/3.0-3.4 A

• Locked Rotor Amps: 25.66 A

• Locked Rotor Torque: 59.9 oz.ft

• Breakdown Torque: 43.14 oz.ft

• Start Capacitor: 356 µF

• Insulation Class: B

• Enclosure: TEFC

• Bearings: 6203 (DE) / 6203 (ODE)

• Thermal Protection: Manual Reset
