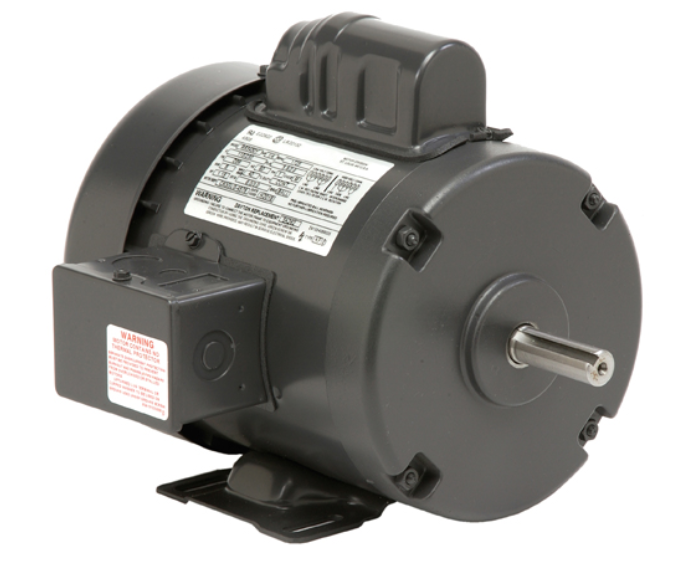

T13C2J, General Purpose, 1/3Hp, 1725 RPM, 115/208-230V, 1PH, 60Hz, TEFC, Fr. 56, C055KJC4952015B

 T13C2J, General Purpose, 1/3Hp, 1725 RPM, 115/208-230V, 1PH, 60Hz, TEFC, Fr. 56, C055KJC4952015B

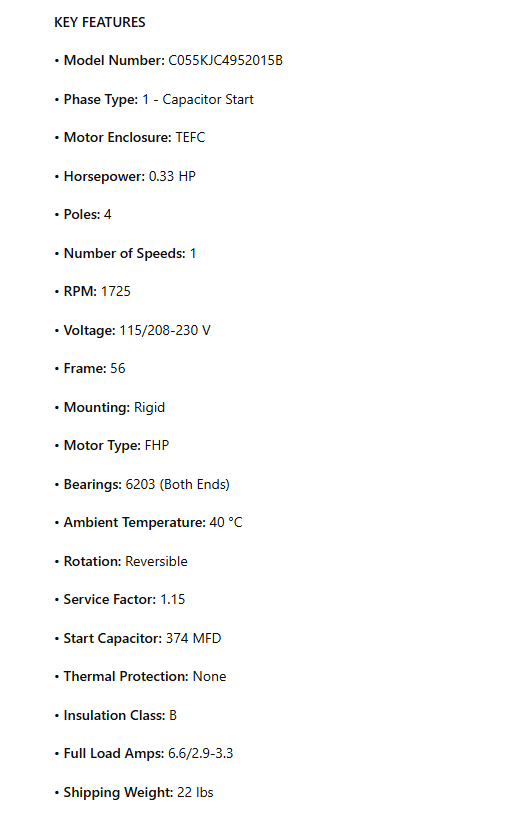

KEY FEATURES

• Model Number: C055KJC4952015B

• Phase Type: 1 - Capacitor Start

• Motor Enclosure: TEFC

• Horsepower: 0.33 HP

• Poles: 4

• Number of Speeds: 1

• RPM: 1725

• Voltage: 115/208-230 V

• Frame: 56

• Mounting: Rigid

• Motor Type: FHP

• Bearings: 6203 (Both Ends)

• Ambient Temperature: 40 °C

• Rotation: Reversible

• Service Factor: 1.15

• Start Capacitor: 374 MFD

• Thermal Protection: None

• Insulation Class: B

• Full Load Amps: 6.6/2.9-3.3

• Shipping Weight: 22 lbs
