P-CMC-PD01, Acc., VFD-C2000, PROFIBUS-DP communication card, 9.6kbps-12Mbps

E-Motor Nations

$654.98

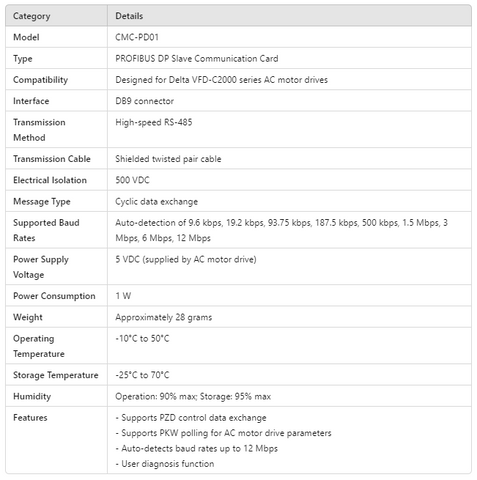

Category	Details
Model	CMC-PD01
Type	PROFIBUS DP Slave Communication Card
Compatibility	Designed for Delta VFD-C2000 series AC motor drives
Interface	DB9 connector
Transmission Method	High-speed RS-485
Transmission Cable	Shielded twisted pair cable
Electrical Isolation	500 VDC
Message Type	Cyclic data exchange
Supported Baud Rates	Auto-detection of 9.6 kbps, 19.2 kbps, 93.75 kbps, 187.5 kbps, 500 kbps, 1.5 Mbps, 3 Mbps, 6 Mbps, 12 Mbps
Power Supply Voltage	5 VDC (supplied by AC motor drive)
Power Consumption	1 W
Weight	Approximately 28 grams
Operating Temperature	-10°C to 50°C
Storage Temperature	-25°C to 70°C
Humidity	Operation: 90% max; Storage: 95% max
Features	- Supports PZD control data exchange - Supports PKW polling for AC motor drive parameters - Auto-detects baud rates up to 12 Mbps - User diagnosis function
