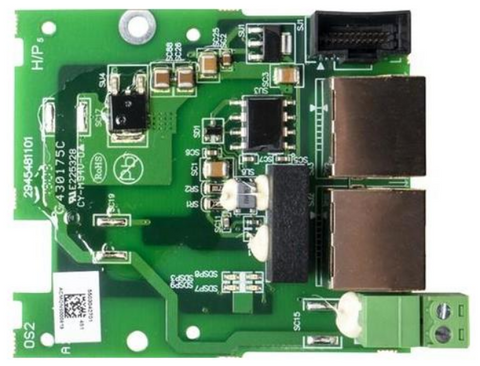

P-CMC-EIP0, Ethernet IP Comms Card for C2000 control Daisy chain Topology

E-Motor Nations

$225.07

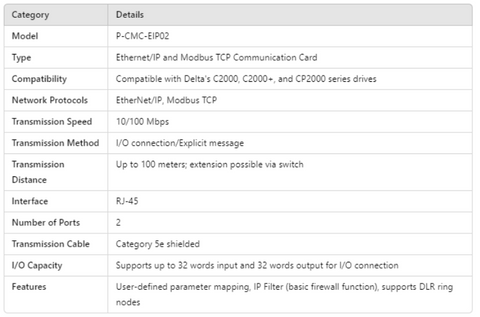

Category	Details
Model	P-CMC-EIP02
Type	Ethernet/IP and Modbus TCP Communication Card
Compatibility	Compatible with Delta's C2000, C2000+, and CP2000 series drives
Network Protocols	EtherNet/IP, Modbus TCP
Transmission Speed	10/100 Mbps
Transmission Method	I/O connection/Explicit message
Transmission Distance	Up to 100 meters; extension possible via switch
Interface	RJ-45
Number of Ports	2
Transmission Cable	Category 5e shielded
I/O Capacity	Supports up to 32 words input and 32 words output for I/O connection
Features	User-defined parameter mapping, IP Filter (basic firewall function), supports DLR ring nodes
