1 5
WEG  |  SKU : EMN-019005

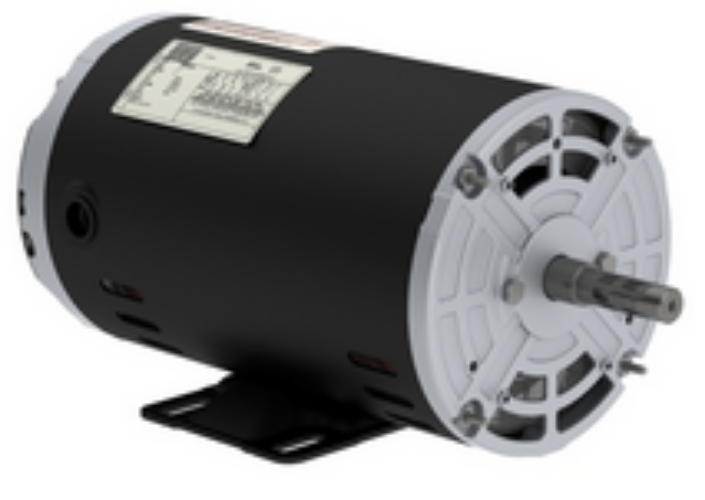

OF001504W01DOE, Rolled Steel Premium Efficiency 1.5Hp 1760 Rpm 4P 56 3Ph 575 V 60 Hz IC01 - ODP - Foot-mounted

$350.28
shipping

Estimation des frais de livraison

Description

OF001504W01DOE,  Rolled Steel Premium Efficiency 1.5Hp 1760 Rpm 4P 56 3Ph 575 V 60 Hz IC01 - ODP - Foot-mounted

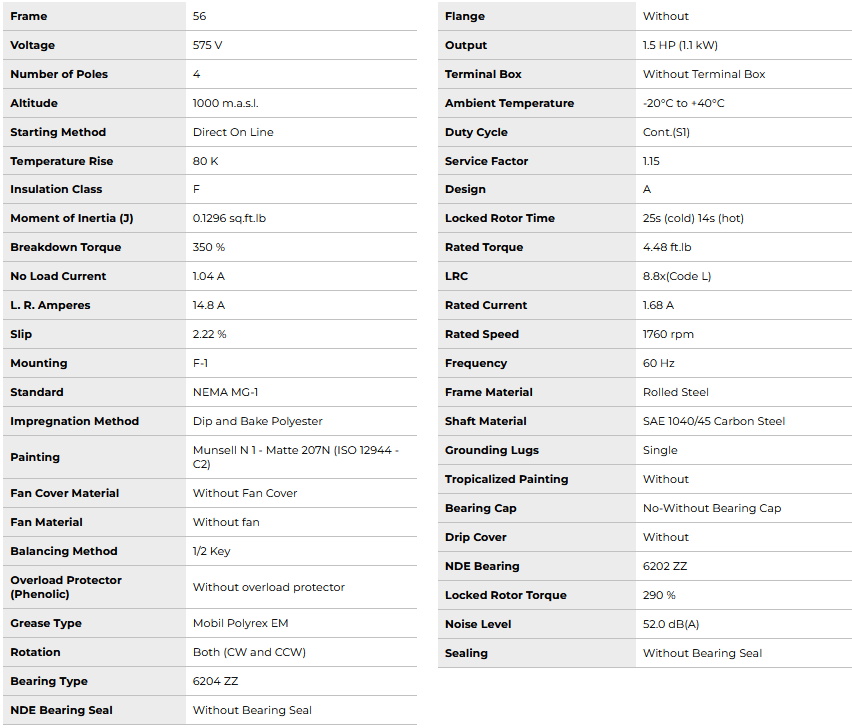

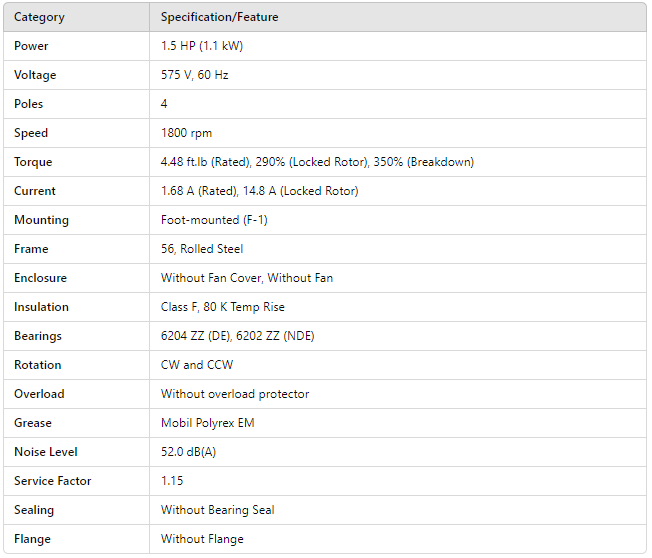

Category Specification/Feature
Power 1.5 HP (1.1 kW)
Voltage 575 V, 60 Hz
Poles 4
Speed 1800 rpm
Torque 4.48 ft.lb (Rated), 290% (Locked Rotor), 350% (Breakdown)
Current 1.68 A (Rated), 14.8 A (Locked Rotor)
Mounting Foot-mounted (F-1)
Frame 56, Rolled Steel
Enclosure Without Fan Cover, Without Fan
Insulation Class F, 80 K Temp Rise
Bearings 6204 ZZ (DE), 6202 ZZ (NDE)
Rotation CW and CCW
Overload Without overload protector
Grease Mobil Polyrex EM
Noise Level 52.0 dB(A)
Service Factor 1.15
Sealing Without Bearing Seal
Flange Without Flange
