WEG  |  SKU : EMN-018995

OF.75404W01DOE, Rolled Steel Premium Efficiency 0.75Hp 1760 Rpm 4P 56 3Ph 208-230/460//190-220/380-415 V 60 Hz IC01 - ODP - Foot-mounted

$297.87
shipping

Estimation des frais de livraison

Description

OF.75404W01DOE,  Rolled Steel Premium Efficiency 0.75Hp 1760 Rpm 4P 56 3Ph 208-230/460//190-220/380-415 V 60 Hz IC01 - ODP - Foot-mounted

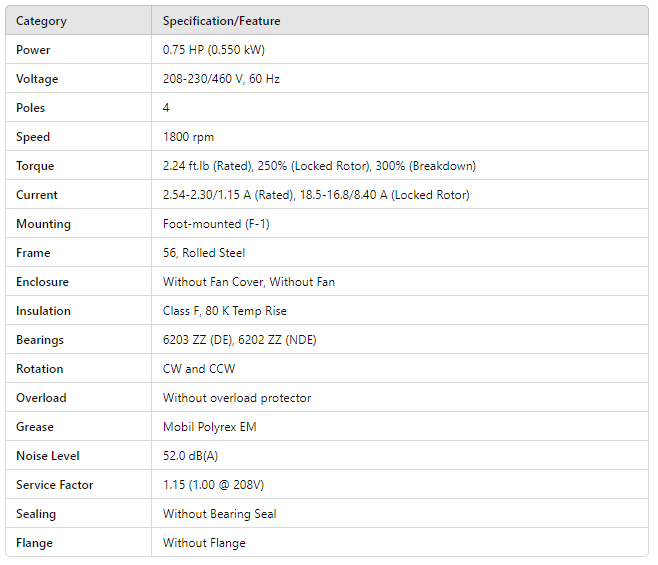

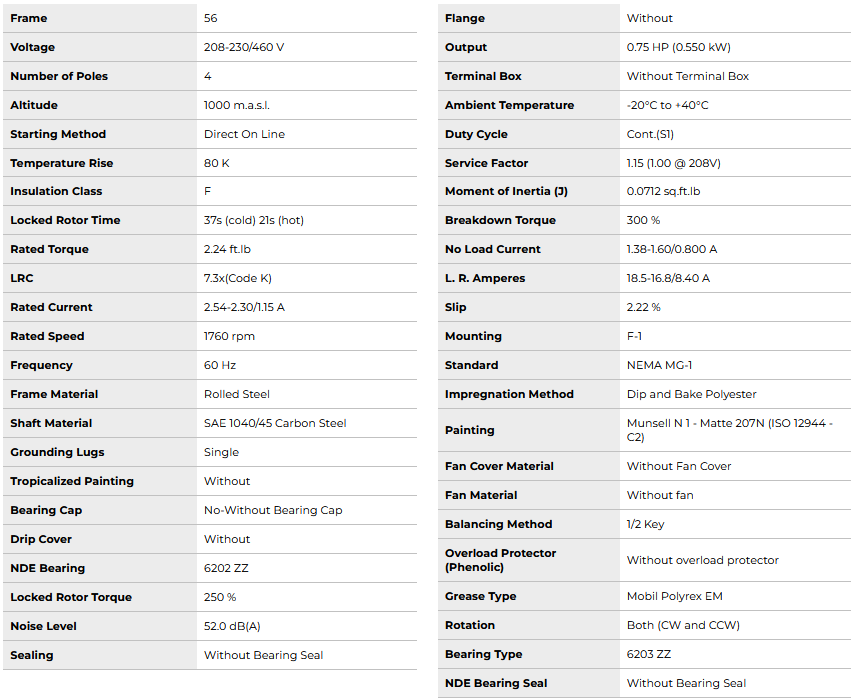

Category Specification/Feature
Power 0.75 HP (0.550 kW)
Voltage 208-230/460 V, 60 Hz
Poles 4
Speed 1800 rpm
Torque 2.24 ft.lb (Rated), 250% (Locked Rotor), 300% (Breakdown)
Current 2.54-2.30/1.15 A (Rated), 18.5-16.8/8.40 A (Locked Rotor)
Mounting Foot-mounted (F-1)
Frame 56, Rolled Steel
Enclosure Without Fan Cover, Without Fan
Insulation Class F, 80 K Temp Rise
Bearings 6203 ZZ (DE), 6202 ZZ (NDE)
Rotation CW and CCW
Overload Without overload protector
Grease Mobil Polyrex EM
Noise Level 52.0 dB(A)
Service Factor 1.15 (1.00 @ 208V)
Sealing Without Bearing Seal
Flange Without Flange
