WEG  |  SKU : EMN-018979

OC.33102W01DOE, Rolled Steel 0.33Hp 3510 Rpm 2P W56C 1Ph 115/208-230 V 60 Hz IC01 - ODP - Foot-mounted

Prix habituel $272.51



shipping

Estimation des frais de livraison

Description

OC.33102W01DOE,  Rolled Steel 0.33Hp 3510 Rpm 2P W56C 1Ph 115/208-230 V 60 Hz IC01 - ODP - Foot-mounted

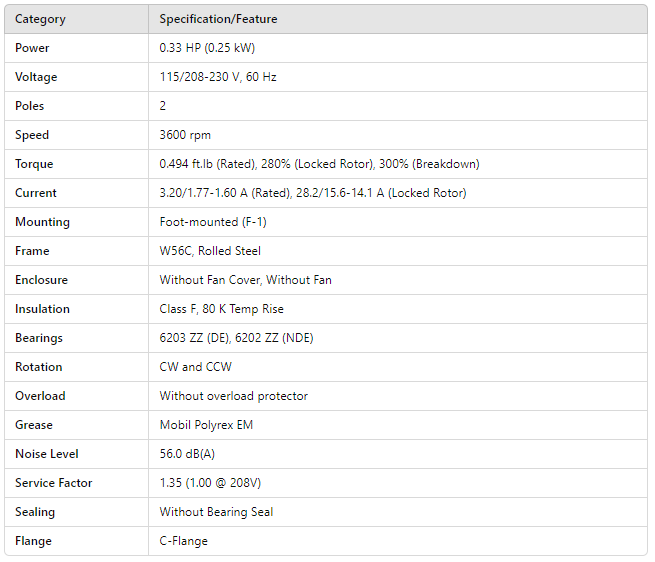

Category Specification/Feature
Power 0.33 HP (0.25 kW)
Voltage 115/208-230 V, 60 Hz
Poles 2
Speed 3600 rpm
Torque 0.494 ft.lb (Rated), 280% (Locked Rotor), 300% (Breakdown)
Current 3.20/1.77-1.60 A (Rated), 28.2/15.6-14.1 A (Locked Rotor)
Mounting Foot-mounted (F-1)
Frame W56C, Rolled Steel
Enclosure Without Fan Cover, Without Fan
Insulation Class F, 80 K Temp Rise
Bearings 6203 ZZ (DE), 6202 ZZ (NDE)
Rotation CW and CCW
Overload Without overload protector
Grease Mobil Polyrex EM
Noise Level 56.0 dB(A)
Service Factor 1.35 (1.00 @ 208V)
Sealing Without Bearing Seal
Flange C-Flange
