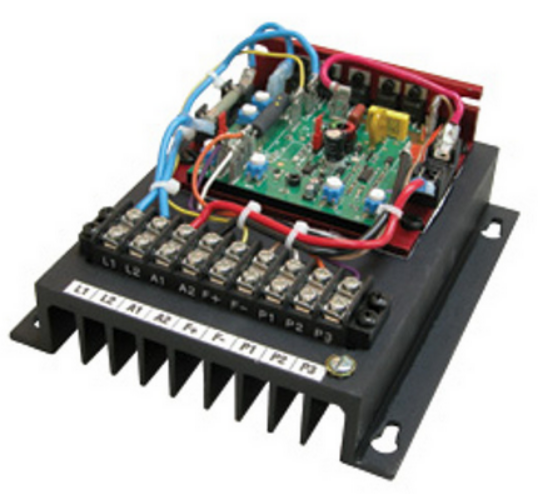

KBCC-125, SCR DC Drive 1.5Hp 16A 115VAC 1PH Input 90VDC Output Non-Reversing Chassis

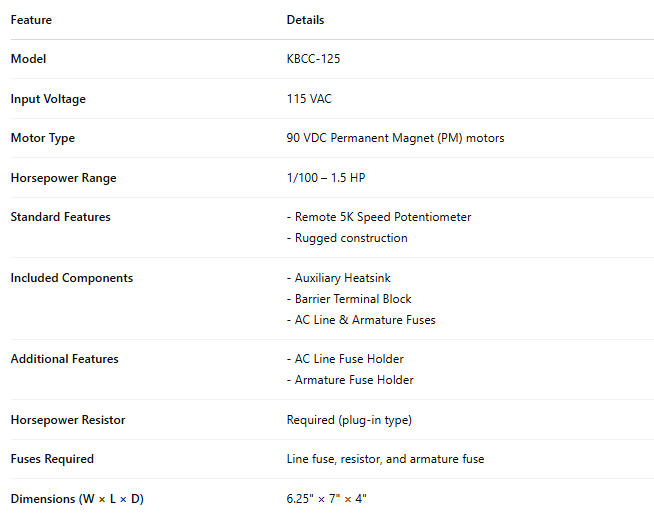

Model: KBCC-125
Drive Type: SCR DC Drive (Chassis Mount)
Input Voltage: 115 VAC
Motor Type: 90 VDC Permanent Magnet (PM) Motors
Horsepower Range: 1/100 – 1.5 HP

Standard Features:

• Remote 5K speed potentiometer

• Rugged construction

• Auto Inhibit® for smooth start during AC line switching

Included Components:

• Auxiliary heatsink

• Barrier terminal block

• AC line fuse and armature fuse

Additional Features:

• AC line fuse holder

• Armature fuse holder

Requirements:

• Plug-in Horsepower Resistor® required

• Line fuse, resistor, and armature fuse must be installed

Dimensions (W × L × D):

• 6.25" × 7" × 4"

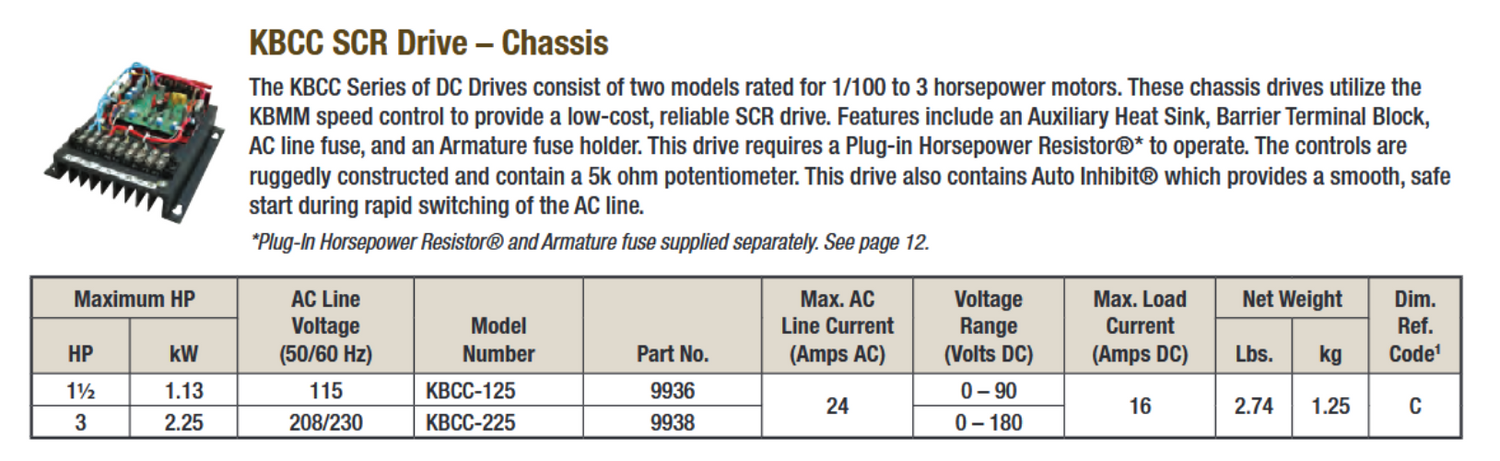

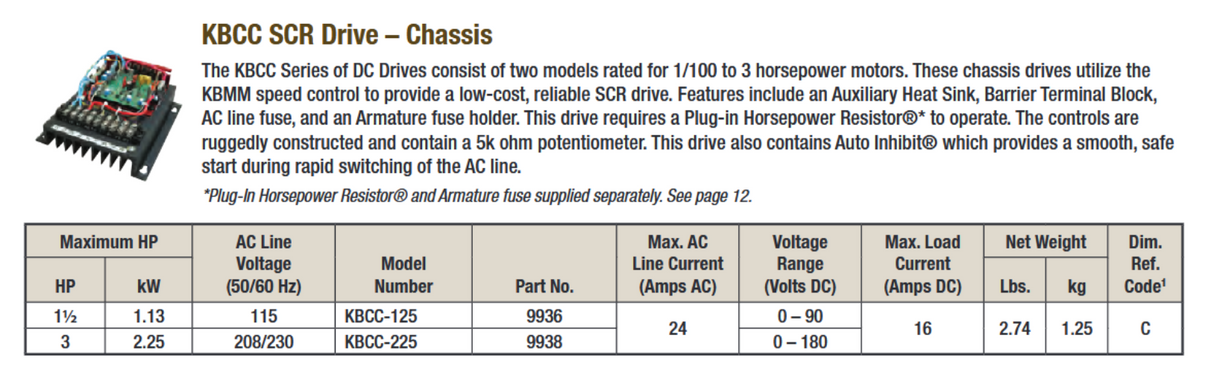

The KBCC Series of DC Drives consist of two models rated for 1/100 to 3 horsepower motors. These chassis drives utilize the
KBMM speed control to provide a low-cost, reliable SCR drive. Features include an Auxiliary Heat Sink, Barrier Terminal Block,
AC line fuse, and an Armature fuse holder. This drive requires a Plug-in Horsepower Resistor®* to operate. The controls are
ruggedly constructed and contain a 5k ohm potentiometer. This drive also contains Auto Inhibit® which provides a smooth, safe
start during rapid switching of the AC line.
