WEG  |  SKU : EMN-019267

HT007502NPW01, Rolled Steel NEMA Premium Efficiency 7.5Hp 3530 Rpm 2P 213/5T 3Ph 575 V 60 Hz IC411 - TEFC - Foot-mounted

Prix habituel $1,070.48



shipping

Estimation des frais de livraison

Description

HT007502NPW01,  Rolled Steel NEMA Premium Efficiency 7.5Hp 3530 Rpm 2P 213/5T 3Ph 575 V 60 Hz IC411 - TEFC - Foot-mounted

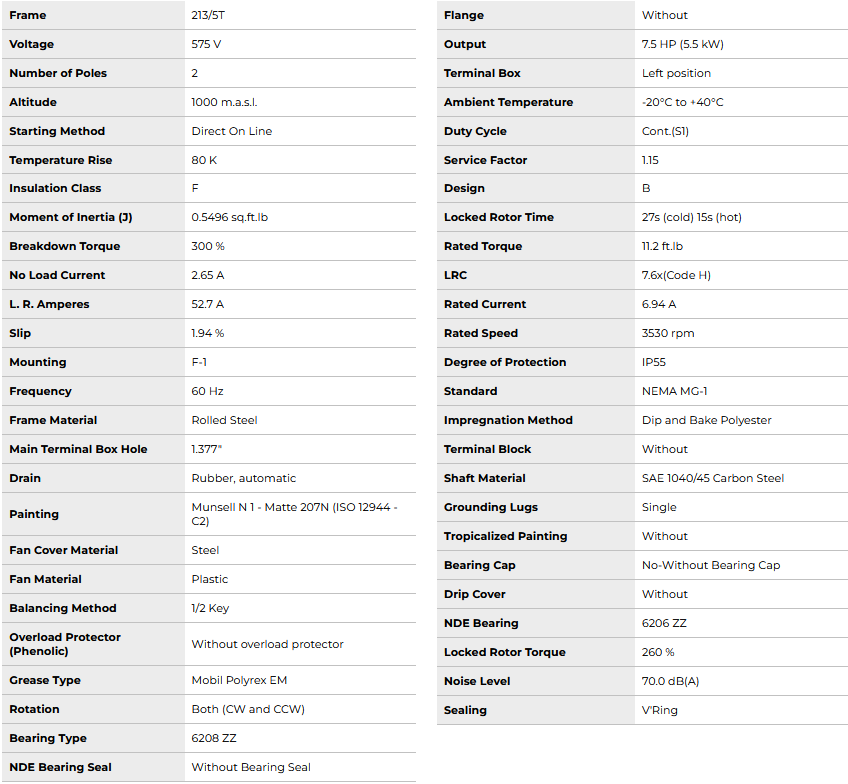

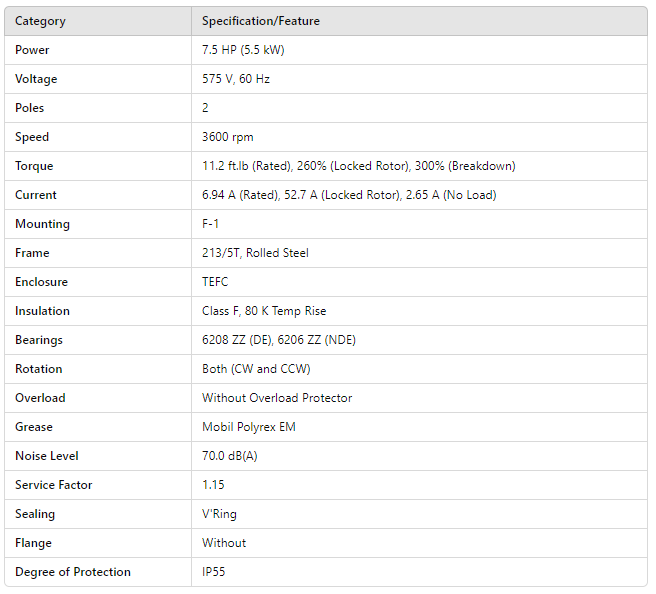

Category Specification/Feature
Power 7.5 HP (5.5 kW)
Voltage 575 V, 60 Hz
Poles 2
Speed 3600 rpm
Torque 11.2 ft.lb (Rated), 260% (Locked Rotor), 300% (Breakdown)
Current 6.94 A (Rated), 52.7 A (Locked Rotor), 2.65 A (No Load)
Mounting F-1
Frame 213/5T, Rolled Steel
Enclosure TEFC
Insulation Class F, 80 K Temp Rise
Bearings 6208 ZZ (DE), 6206 ZZ (NDE)
Rotation Both (CW and CCW)
Overload Without Overload Protector
Grease Mobil Polyrex EM
Noise Level 70.0 dB(A)
Service Factor 1.15
Sealing V'Ring
Flange Without
Degree of Protection IP55
