WEG  |  SKU : EMN-019227

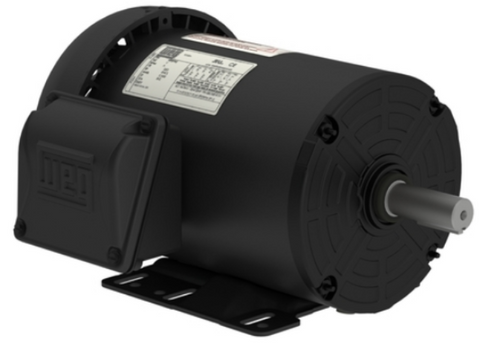

HT000504NPW01, ELECTRIC MOTOR THREE PHASE ROTOR SQUIRREL CAGE 1Hp 1765 Rpm 4P 143/5T 575 C/W 3 leads WCF2 60Hz F-1/B3R(D) IP55 NEMA PREMIUM EFFICIENCY ROLLED STEEL IHP

$455.95
shipping

Estimation des frais de livraison

Description

HT000504NPW01,  ELECTRIC MOTOR THREE PHASE ROTOR SQUIRREL CAGE 1Hp 1765  Rpm 4P 143/5T 575 C/W 3 leads WCF2 60Hz F-1/B3R(D) IP55 NEMA PREMIUM EFFICIENCY ROLLED STEEL IHP

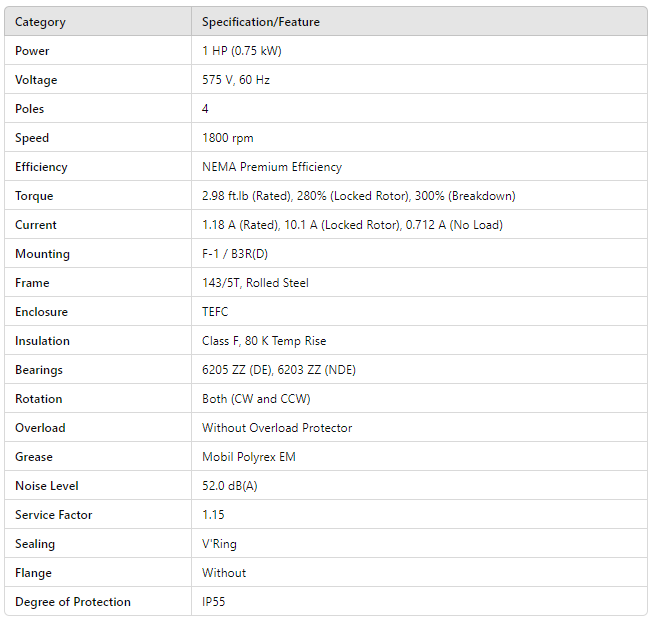

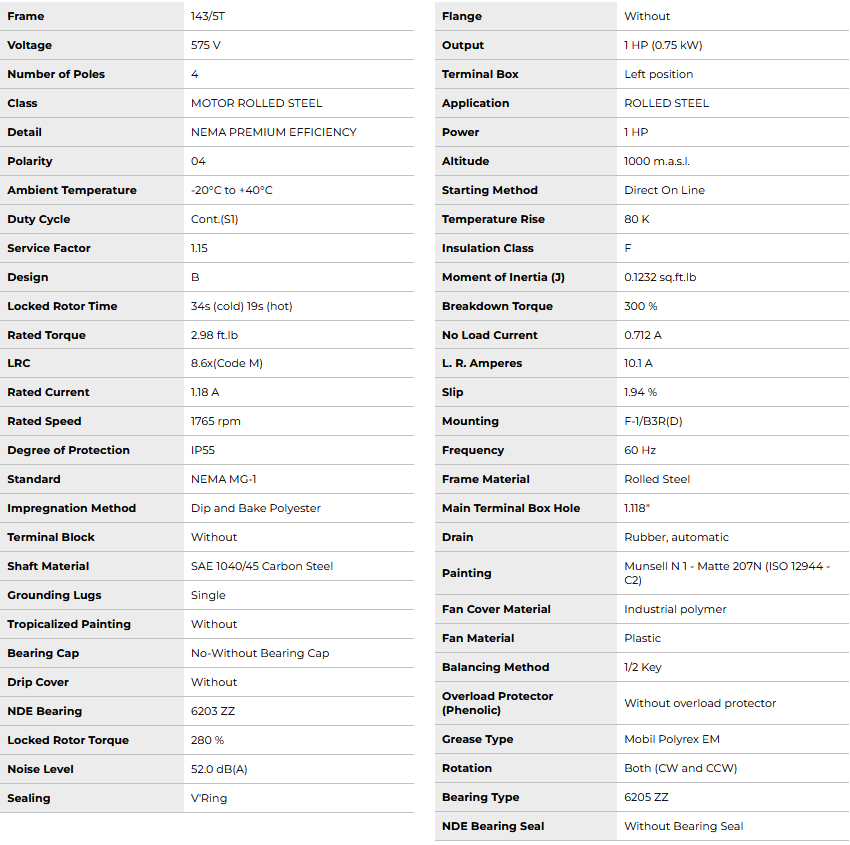

Category Specification/Feature
Power 1 HP (0.75 kW)
Voltage 575 V, 60 Hz
Poles 4
Speed 1800 rpm
Efficiency NEMA Premium Efficiency
Torque 2.98 ft.lb (Rated), 280% (Locked Rotor), 300% (Breakdown)
Current 1.18 A (Rated), 10.1 A (Locked Rotor), 0.712 A (No Load)
Mounting F-1 / B3R(D)
Frame 143/5T, Rolled Steel
Enclosure TEFC
Insulation Class F, 80 K Temp Rise
Bearings 6205 ZZ (DE), 6203 ZZ (NDE)
Rotation Both (CW and CCW)
Overload Without Overload Protector
Grease Mobil Polyrex EM
Noise Level 52.0 dB(A)
Service Factor 1.15
Sealing V'Ring
Flange Without
Degree of Protection IP55
