WEG  |  SKU : EMN-019226

HT000404NPW01, ELECTRIC MOTOR THREE PHASE ROTOR SQUIRREL CAGE 1Hp 1765 Rpm 4P 143/5T 208-230/460//190-220/380-415 WCF2 60Hz F-1/B3R(D) IP55 NEMA PREMIUM EFFICIENCY ROLL

$455.10
shipping

Estimation des frais de livraison

Description

HT000404NPW01,  ELECTRIC MOTOR THREE PHASE ROTOR SQUIRREL CAGE 1Hp 1765 Rpm 4P 143/5T 208-230/460//190-220/380-415 WCF2 60Hz F-1/B3R(D) IP55 NEMA PREMIUM EFFICIENCY ROLL

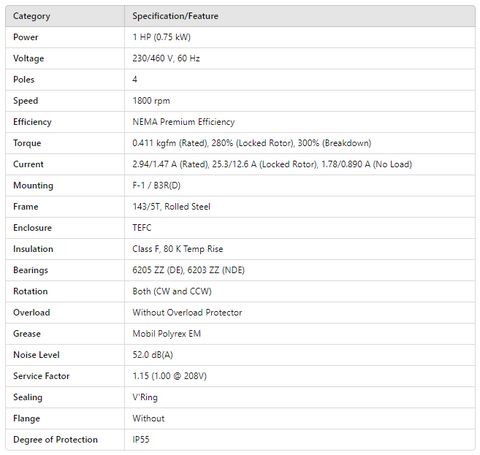

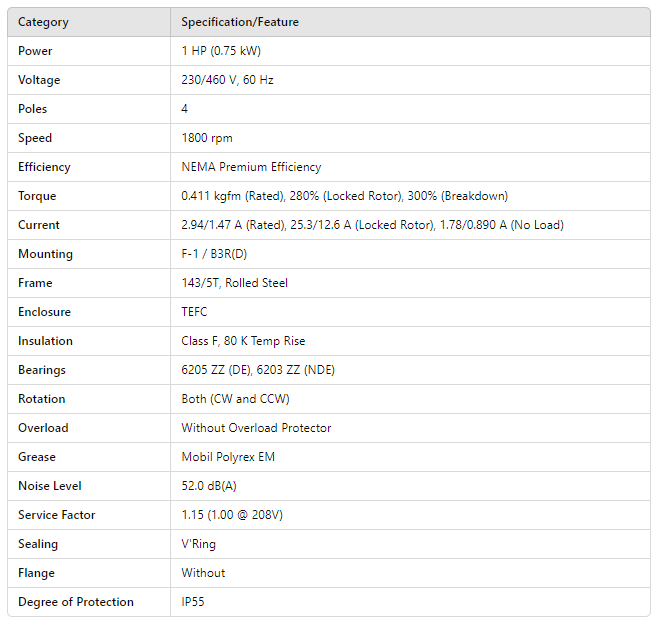

Category Specification/Feature
Power 1 HP (0.75 kW)
Voltage 230/460 V, 60 Hz
Poles 4
Speed 1800 rpm
Efficiency NEMA Premium Efficiency
Torque 0.411 kgfm (Rated), 280% (Locked Rotor), 300% (Breakdown)
Current 2.94/1.47 A (Rated), 25.3/12.6 A (Locked Rotor), 1.78/0.890 A (No Load)
Mounting F-1 / B3R(D)
Frame 143/5T, Rolled Steel
Enclosure TEFC
Insulation Class F, 80 K Temp Rise
Bearings 6205 ZZ (DE), 6203 ZZ (NDE)
Rotation Both (CW and CCW)
Overload Without Overload Protector
Grease Mobil Polyrex EM
Noise Level 52.0 dB(A)
Service Factor 1.15 (1.00 @ 208V)
Sealing V'Ring
Flange Without
Degree of Protection IP55
