FD1CM2PZY, Auger Duty Motors, 1Hp, 1725 RPM, 115/230V, 1PH, 60/50Hz, TEFC, Frame 56Y, C063GJL1192015B

FD34CM2PZYR, Auger Duty Motors, 3/4Hp, 1725 RPM, 115/230V, 1PH, 60/50Hz, TEFC, Fr. 56Y, C063GJH4538015B

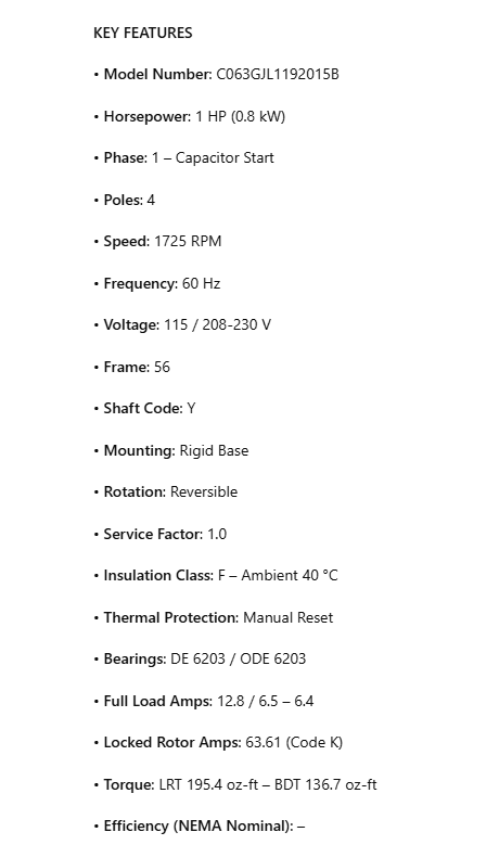

KEY FEATURES

• Model Number: C063GJL1192015B

• Horsepower: 1 HP (0.8 kW)

• Phase: 1 – Capacitor Start

• Poles: 4

• Speed: 1725 RPM

• Frequency: 60 Hz

• Voltage: 115 / 208-230 V

• Frame: 56

• Shaft Code: Y

• Mounting: Rigid Base

• Rotation: Reversible

• Service Factor: 1.0

• Insulation Class: F – Ambient 40 °C

• Thermal Protection: Manual Reset

• Bearings: DE 6203 / ODE 6203

• Full Load Amps: 12.8 / 6.5 – 6.4

• Locked Rotor Amps: 63.61 (Code K)

• Torque: LRT 195.4 oz-ft – BDT 136.7 oz-ft

• Efficiency (NEMA Nominal): –
