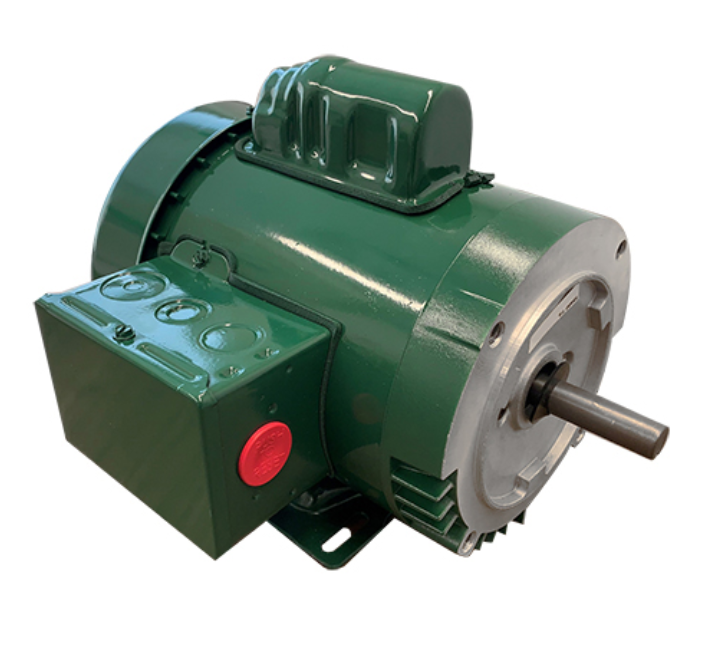

FD1CM2PHC, Agri Duty High Torque, 1Hp, 1725 RPM, 115/230V, 1PH, 60Hz, TEFC, Frame 56HC, C063FEM1389015B

FD1CM2PHC, Agri Duty High Torque, 1Hp, 1725 RPM, 115/230V, 1PH, 60Hz, TEFC, Frame 56HC, C063FEM1389015B

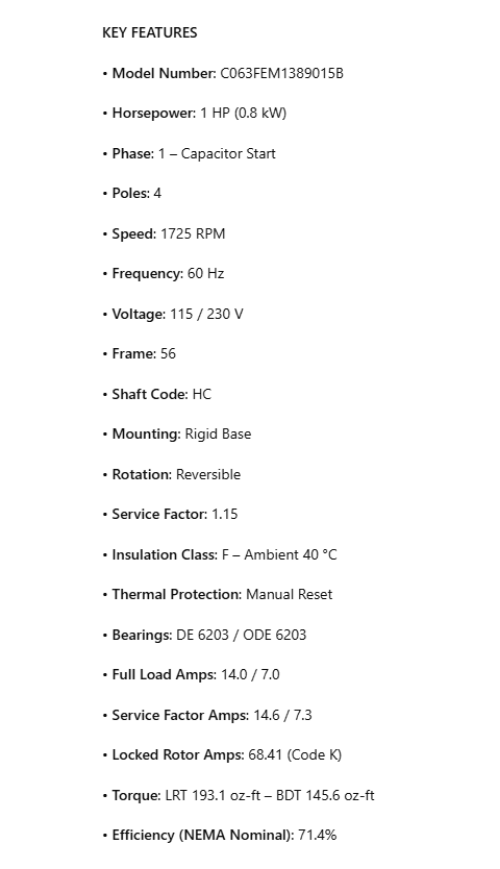

KEY FEATURES

• Model Number: C063FEM1389015B

• Horsepower: 1 HP (0.8 kW)

• Phase: 1 – Capacitor Start

• Poles: 4

• Speed: 1725 RPM

• Frequency: 60 Hz

• Voltage: 115 / 230 V

• Frame: 56

• Shaft Code: HC

• Mounting: Rigid Base

• Rotation: Reversible

• Service Factor: 1.15

• Insulation Class: F – Ambient 40 °C

• Thermal Protection: Manual Reset

• Bearings: DE 6203 / ODE 6203

• Full Load Amps: 14.0 / 7.0

• Service Factor Amps: 14.6 / 7.3

• Locked Rotor Amps: 68.41 (Code K)

• Torque: LRT 193.1 oz-ft – BDT 145.6 oz-ft

• Efficiency (NEMA Nominal): 71.4%
