FD13CM2PC, Agri Duty High Torque, 1/3Hp, 1725 RPM, 115/230V, 1PH, 60Hz, TEFC, Fr. 56C, C063HDJ1384015B

 FD13CM2PC, Agri Duty High Torque, 1/3Hp, 1725 RPM, 115/230V, 1PH, 60Hz, TEFC, Fr. 56C, C063HDJ1384015B

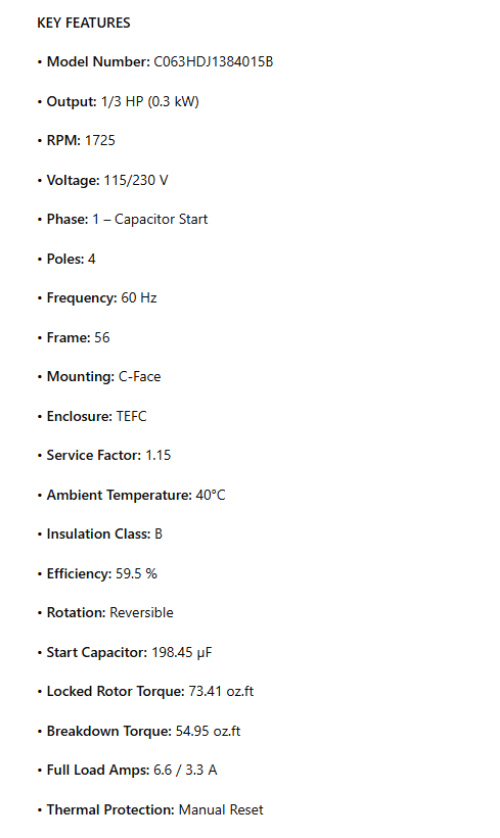

KEY FEATURES

• Model Number: C063HDJ1384015B

• Output: 1/3 HP (0.3 kW)

• RPM: 1725

• Voltage: 115/230 V

• Phase: 1 – Capacitor Start

• Poles: 4

• Frequency: 60 Hz

• Frame: 56

• Mounting: C-Face

• Enclosure: TEFC

• Service Factor: 1.15

• Ambient Temperature: 40°C

• Insulation Class: B

• Efficiency: 59.5 %

• Rotation: Reversible

• Start Capacitor: 198.45 µF

• Locked Rotor Torque: 73.41 oz.ft

• Breakdown Torque: 54.95 oz.ft

• Full Load Amps: 6.6 / 3.3 A

• Thermal Protection: Manual Reset
