WEG  |  SKU : EMN-018961

FD005104W22C, W22 5Hp 1730 Rpm 4P 182/4TC 1Ph 230 V 60 Hz IC411 - TEFC - Foot-mounted

$1,317.30
shipping

Estimation des frais de livraison

Description

FD005104W22C,  W22 5Hp 1730 Rpm 4P 182/4TC 1Ph 230 V 60 Hz IC411 - TEFC - Foot-mounted

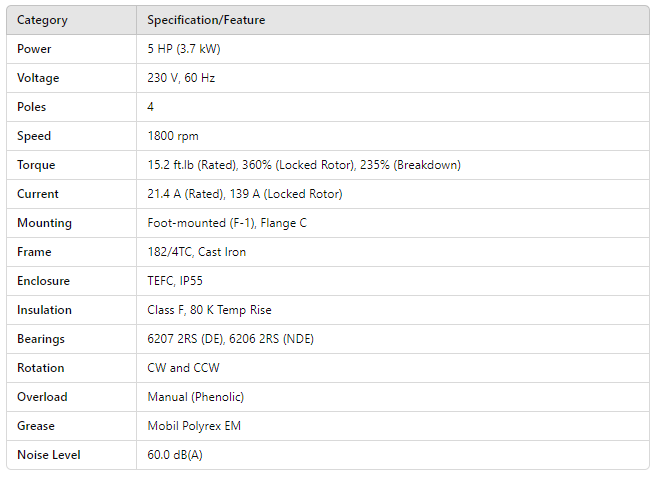

Category Specification/Feature
Power 5 HP (3.7 kW)
Voltage 230 V, 60 Hz
Poles 4
Speed 1800 rpm
Torque 15.2 ft.lb (Rated), 360% (Locked Rotor), 235% (Breakdown)
Current 21.4 A (Rated), 139 A (Locked Rotor)
Mounting Foot-mounted (F-1), Flange C
Frame 182/4TC, Cast Iron
Enclosure TEFC, IP55
Insulation Class F, 80 K Temp Rise
Bearings 6207 2RS (DE), 6206 2RS (NDE)
Rotation CW and CCW
Overload Manual (Phenolic)
Grease Mobil Polyrex EM
Noise Level 60.0 dB(A)
