WEG  |  SKU : EMN-018952

FD.33104W01C, Rolled Steel 0.33Hp 1735 Rpm 4P W56C 1Ph 115/230 V 60 Hz IC411 - TEFC - Foot-mounted

Prix habituel $365.50



shipping

Estimation des frais de livraison

Description

FD.33104W01C,  Rolled Steel 0.33 1735 Rpm Hp 4P W56C 1Ph 115/230 V 60 Hz IC411 - TEFC - Foot-mounted

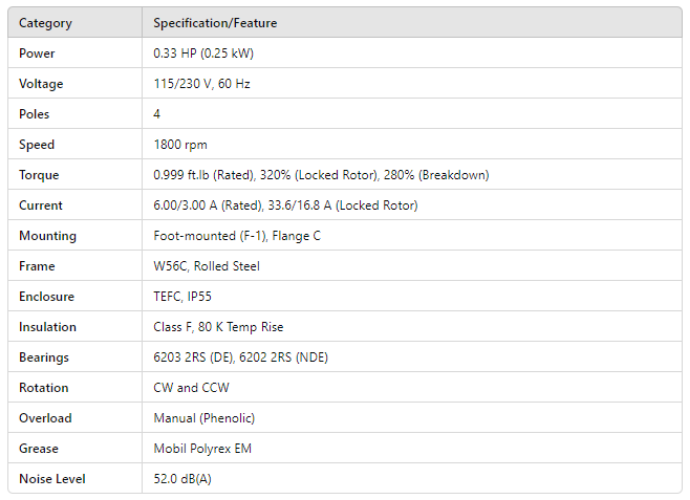

Category Specification/Feature
Power 0.33 HP (0.25 kW)
Voltage 115/230 V, 60 Hz
Poles 4
Speed 1800 rpm
Torque 0.999 ft.lb (Rated), 320% (Locked Rotor), 280% (Breakdown)
Current 6.00/3.00 A (Rated), 33.6/16.8 A (Locked Rotor)
Mounting Foot-mounted (F-1), Flange C
Frame W56C, Rolled Steel
Enclosure TEFC, IP55
Insulation Class F, 80 K Temp Rise
Bearings 6203 2RS (DE), 6202 2RS (NDE)
Rotation CW and CCW
Overload Manual (Phenolic)
Grease Mobil Polyrex EM
Noise Level 52.0 dB(A)
