EZXDB3714A1, Dynamic Braking Module Complete With Resistors For 0.33-0.50Hp 400-480V

E-Motor Nations

$306.63

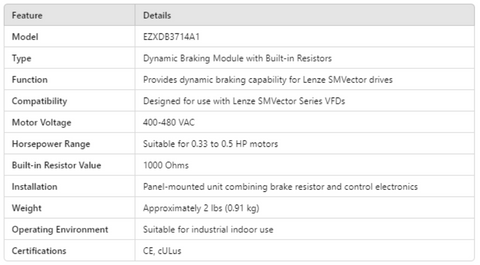

Feature	Details
Model	EZXDB3714A1
Type	Dynamic Braking Module with Built-in Resistors
Function	Provides dynamic braking capability for Lenze SMVector drives
Compatibility	Designed for use with Lenze SMVector Series VFDs
Motor Voltage	400-480 VAC
Horsepower Range	Suitable for 0.33 to 0.5 HP motors
Built-in Resistor Value	1000 Ohms
Installation	Panel-mounted unit combining brake resistor and control electronics
Weight	Approximately 2 lbs (0.91 kg)
Operating Environment	Suitable for industrial indoor use
Certifications	CE, cULus
