EU1002, Commercial Pump Motors, 1Hp, 3450 RPM, 115/208-230V, 1PH, 60/50Hz, ODP, Frame 56J, C055JZR4770013J

EU1002, Commercial Pump Motors, 1Hp, 3450 RPM, 115/208-230V, 1PH, 60/50Hz, ODP, Frame 56J, C055JZR4770013J

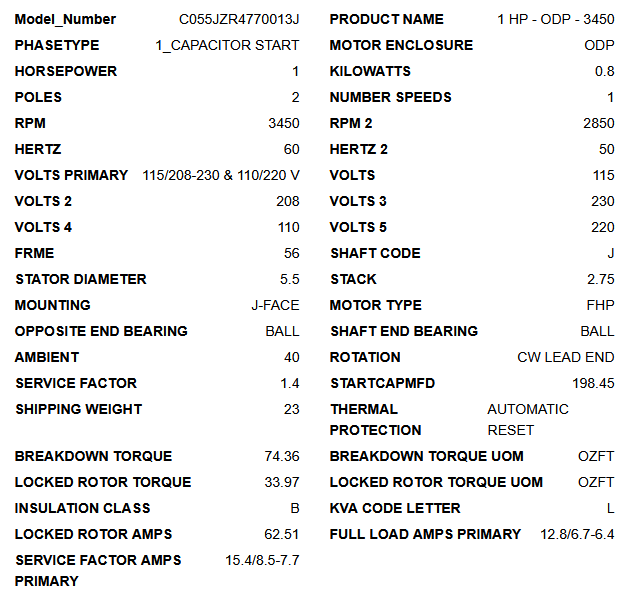

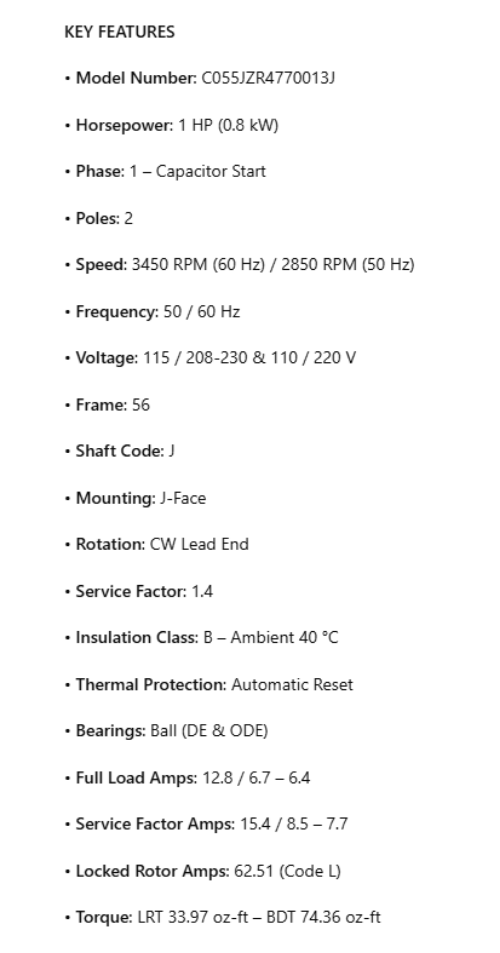

KEY FEATURES

• Model Number: C055JZR4770013J

• Horsepower: 1 HP (0.8 kW)

• Phase: 1 – Capacitor Start

• Poles: 2

• Speed: 3450 RPM (60 Hz) / 2850 RPM (50 Hz)

• Frequency: 50 / 60 Hz

• Voltage: 115 / 208-230 & 110 / 220 V

• Frame: 56

• Shaft Code: J

• Mounting: J-Face

• Rotation: CW Lead End

• Service Factor: 1.4

• Insulation Class: B – Ambient 40 °C

• Thermal Protection: Automatic Reset

• Bearings: Ball (DE & ODE)

• Full Load Amps: 12.8 / 6.7 – 6.4

• Service Factor Amps: 15.4 / 8.5 – 7.7

• Locked Rotor Amps: 62.51 (Code L)

• Torque: LRT 33.97 oz-ft – BDT 74.36 oz-ft
