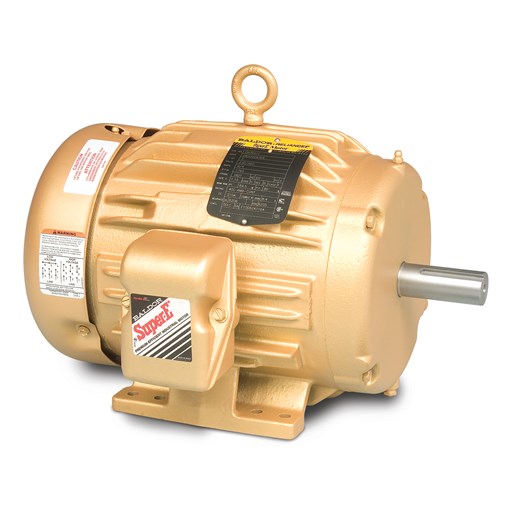

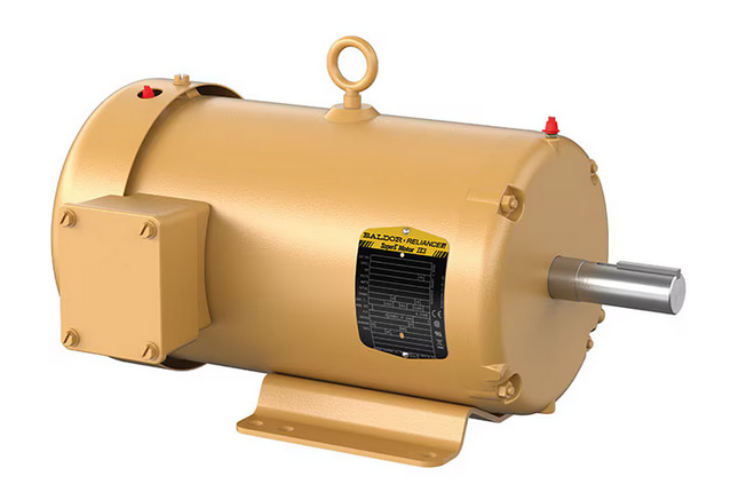

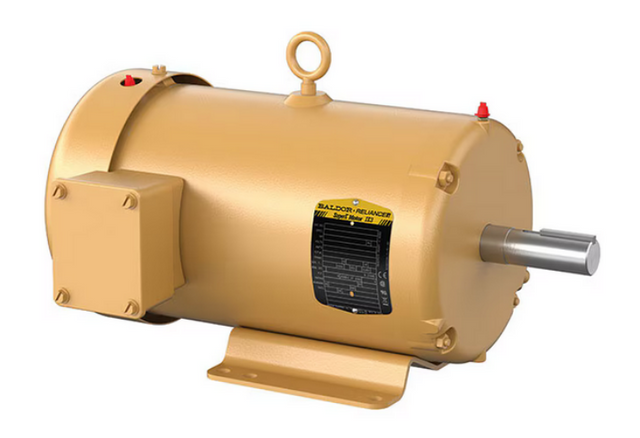

EM4104T, 30Hp, 1760 RPM, 230/460V 3PH, 60HZ, 286T, 1056M, TEFC, F1
EM4104T, 30Hp, 1760 RPM, 230/460V 3PH, 60HZ, 286T, 1056M, TEFC, F1 est en rupture de stock et sera expédié dès qu’il sera de retour en stock.
Impossible de charger la disponibilité pour le Service de retrait
Estimation des frais de livraison
Veuillez corriger les erreurs suivantes :
EM4104T, 30Hp, 1760 RPM, 230/460V 3PH, 60HZ, 286T, 1056M, TEFC, F1
Description
Description
EM4104T, 30Hp, 1760 RPM, 230/460V 3PH, 60HZ, 286T, 1056M, TEFC, F1

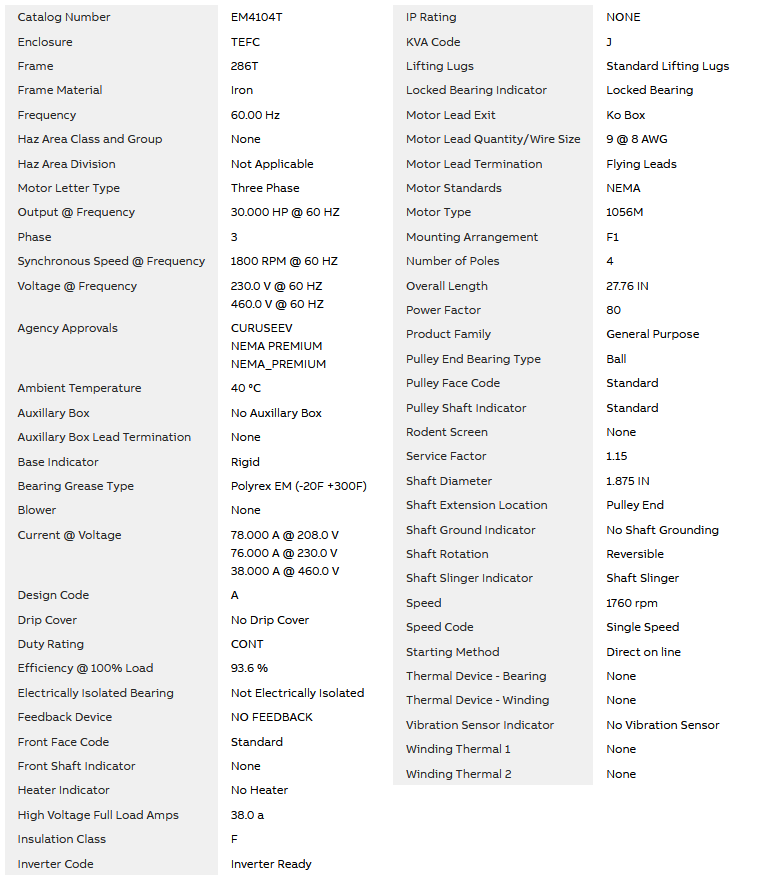

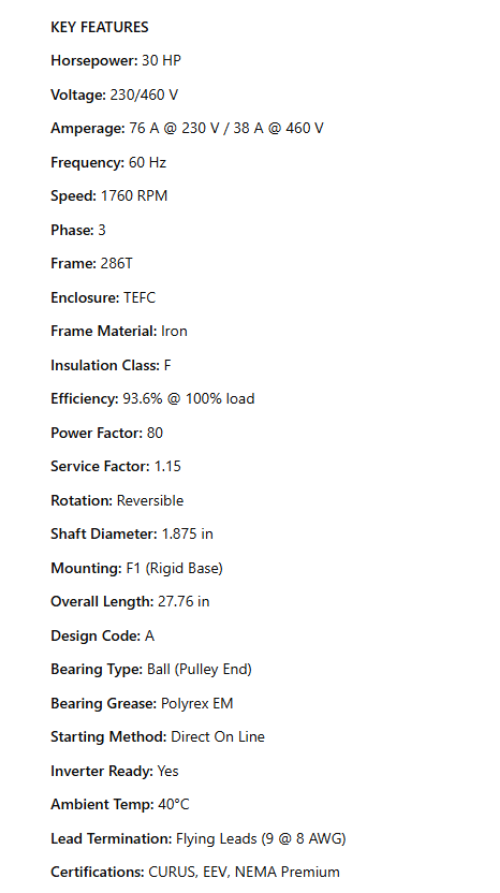

KEY FEATURES
Horsepower: 30 HP
Voltage: 230/460 V
Amperage: 76 A @ 230 V / 38 A @ 460 V
Frequency: 60 Hz
Speed: 1760 RPM
Phase: 3
Frame: 286T
Enclosure: TEFC
Frame Material: Iron
Insulation Class: F
Efficiency: 93.6% @ 100% load
Power Factor: 80
Service Factor: 1.15
Rotation: Reversible
Shaft Diameter: 1.875 in
Mounting: F1 (Rigid Base)

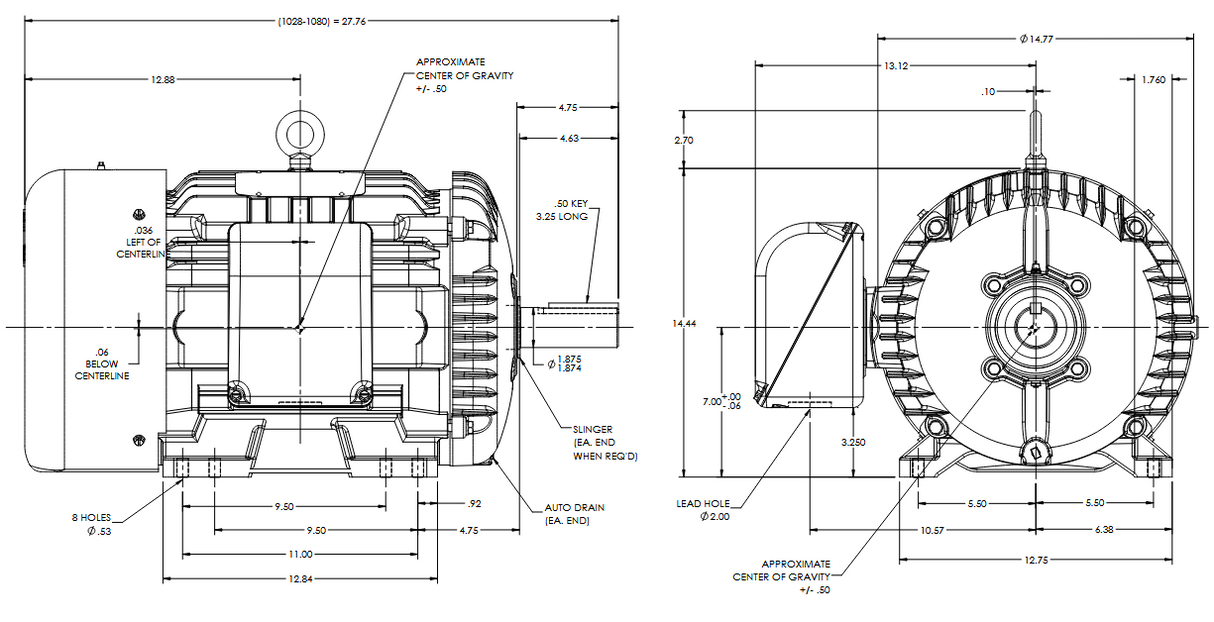

Overall Length: 27.76 in
Design Code: A
Bearing Type: Ball (Pulley End)
Bearing Grease: Polyrex EM
Starting Method: Direct On Line
Inverter Ready: Yes
Ambient Temp: 40°C

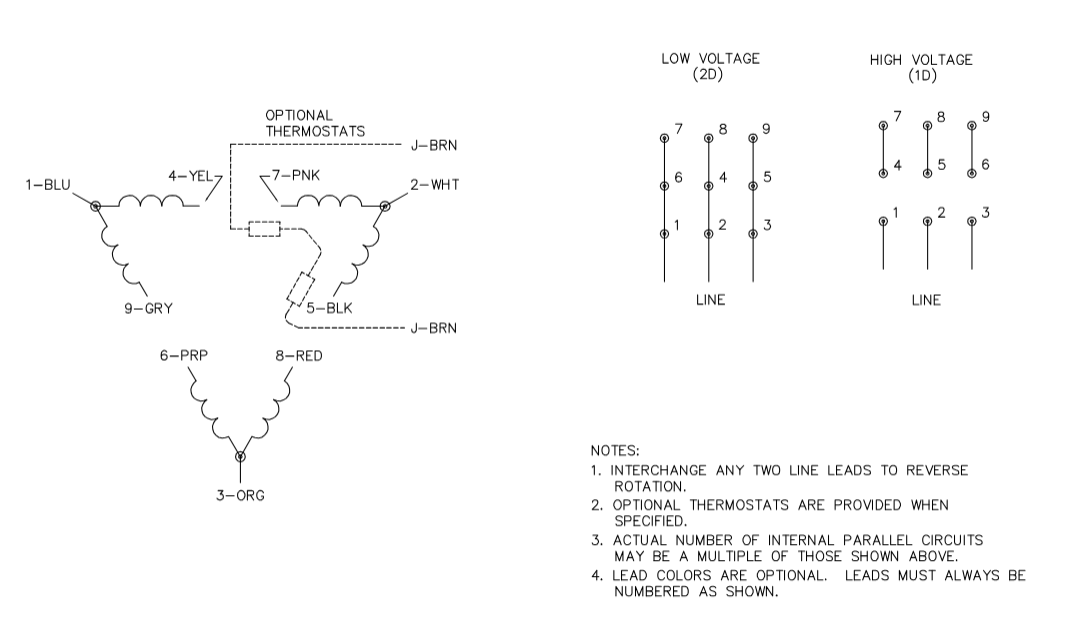

Lead Termination: Flying Leads (9 @ 8 AWG)
Certifications: CURUS, EEV, NEMA Premium
