BALDOR  |  SKU : EMN-019509

EM3665T-5, Baldor, 5Hp, 1750RPM, 184T, TEFC, 575V, General Purpose

Prix habituel $1,218.14



shipping

Estimation des frais de livraison

Description

EM3665T-5, Baldor, 5Hp, 1750RPM, 184T, TEFC, 575V, General Purpose

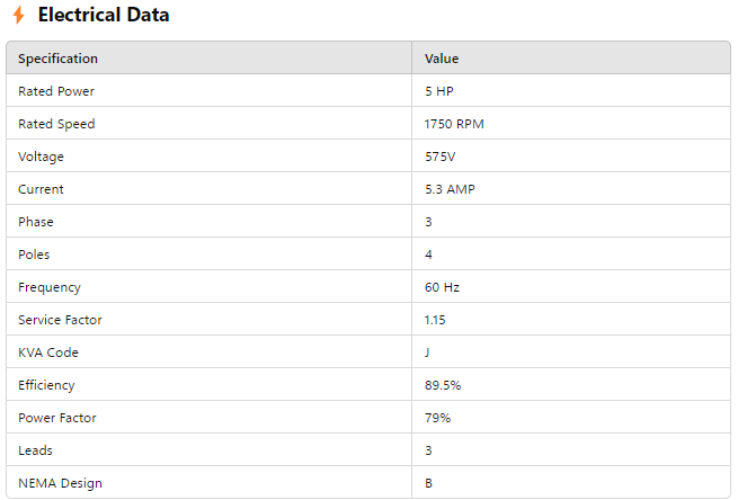

Electrical Data
Specification Value
Rated Power 5 HP
Rated Speed 1750 RPM
Voltage 575V
Current 5.3 AMP
Phase 3
Poles 4
Frequency 60 Hz
Service Factor 1.15
KVA Code J
Efficiency 89.5%
Power Factor 79%
Leads 3
NEMA Design B



General & Mechanical Data
Specification Value
Frame 184T
Enclosure TEFC
Mounting Rigid
Frame Material Cast Iron
Approx. Weight 108 lb
C-Dimension 15.24"
Insulation Class F
Rotation Reversible
Duty Continuous
Ambient Temperature 40°C
Double Drilled Yes
Removable Feet No
Spec 06C101X200G3



Shaft & Bearing Data
Specification Value
DE Bearing 6206
NDE Bearing 6205
Shaft Diameter 1.125"
Shaft Length 2.75"
Grease Type Polyrex EM
Greaseable Yes
