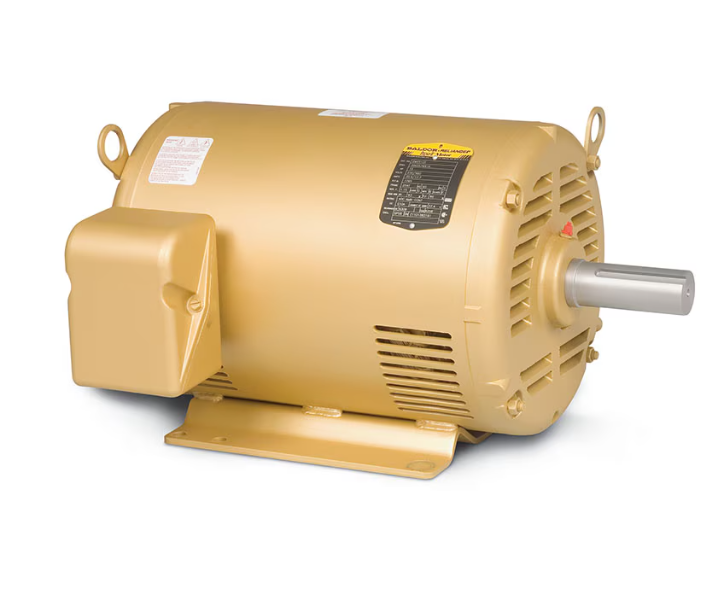

EM3309T-G, 5Hp, 1160RPM, 230/460V, 3PH, 60HZ, Frame 215T, 3744M, OPSB, F1, SPM3309T-G

EM3309T-G, 5Hp, 1160RPM, 230/460V, 3PH, 60HZ, Frame 215T, 3744M, OPSB, F1, SPM3309T-G

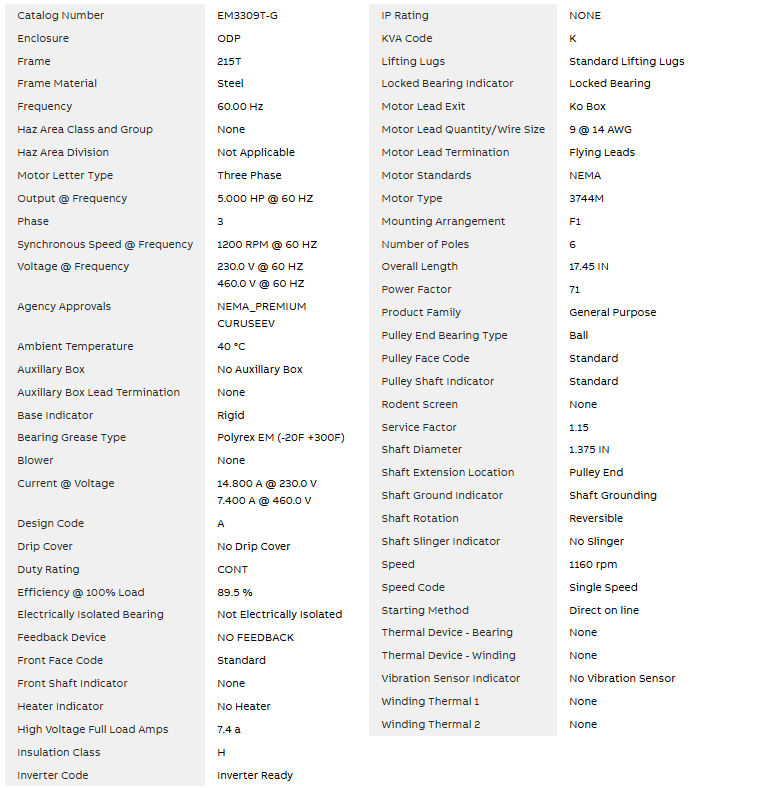

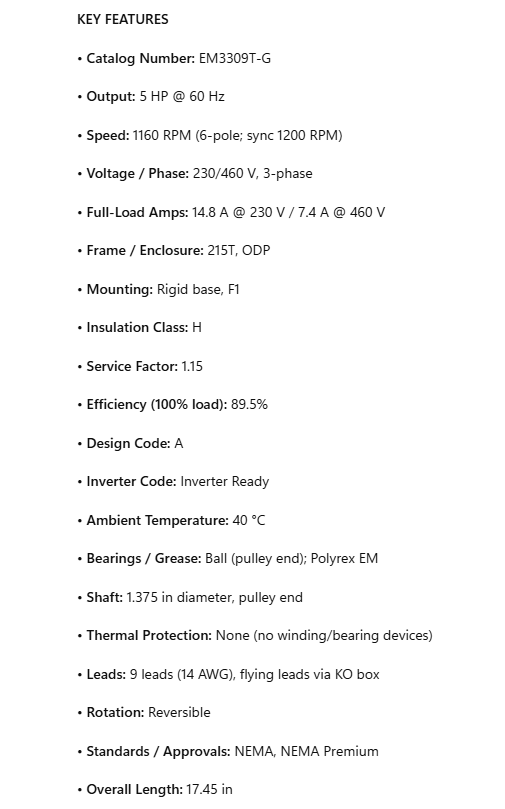

KEY FEATURES

• Catalog Number: EM3309T-G

• Output: 5 HP @ 60 Hz

• Speed: 1160 RPM (6-pole; sync 1200 RPM)

• Voltage / Phase: 230/460 V, 3-phase

• Full-Load Amps: 14.8 A @ 230 V / 7.4 A @ 460 V

• Frame / Enclosure: 215T, ODP

• Mounting: Rigid base, F1

• Insulation Class: H

• Service Factor: 1.15

• Efficiency (100% load): 89.5%

• Design Code: A

• Inverter Code: Inverter Ready

• Ambient Temperature: 40 °C

• Bearings / Grease: Ball (pulley end); Polyrex EM

• Shaft: 1.375 in diameter, pulley end

• Thermal Protection: None (no winding/bearing devices)

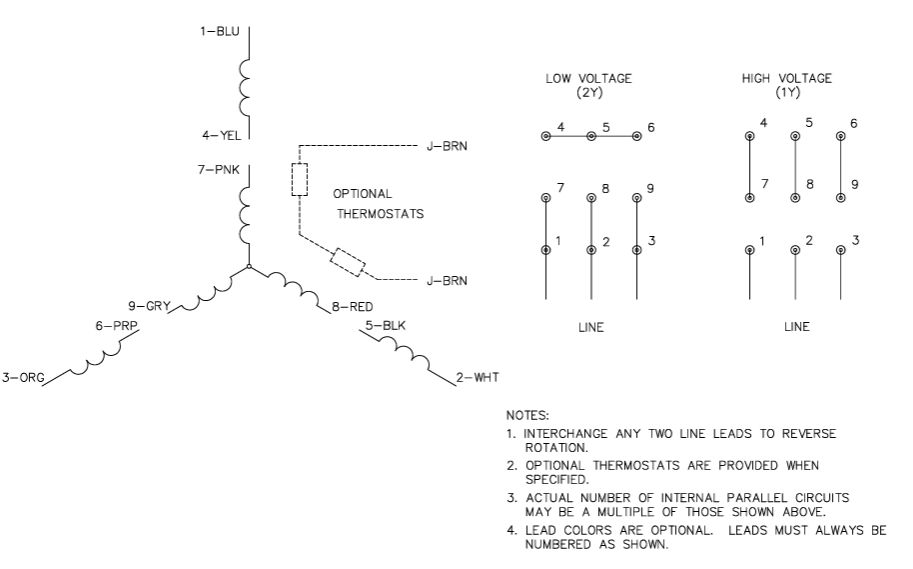

• Leads: 9 leads (14 AWG), flying leads via KO box

• Rotation: Reversible

• Standards / Approvals: NEMA, NEMA Premium

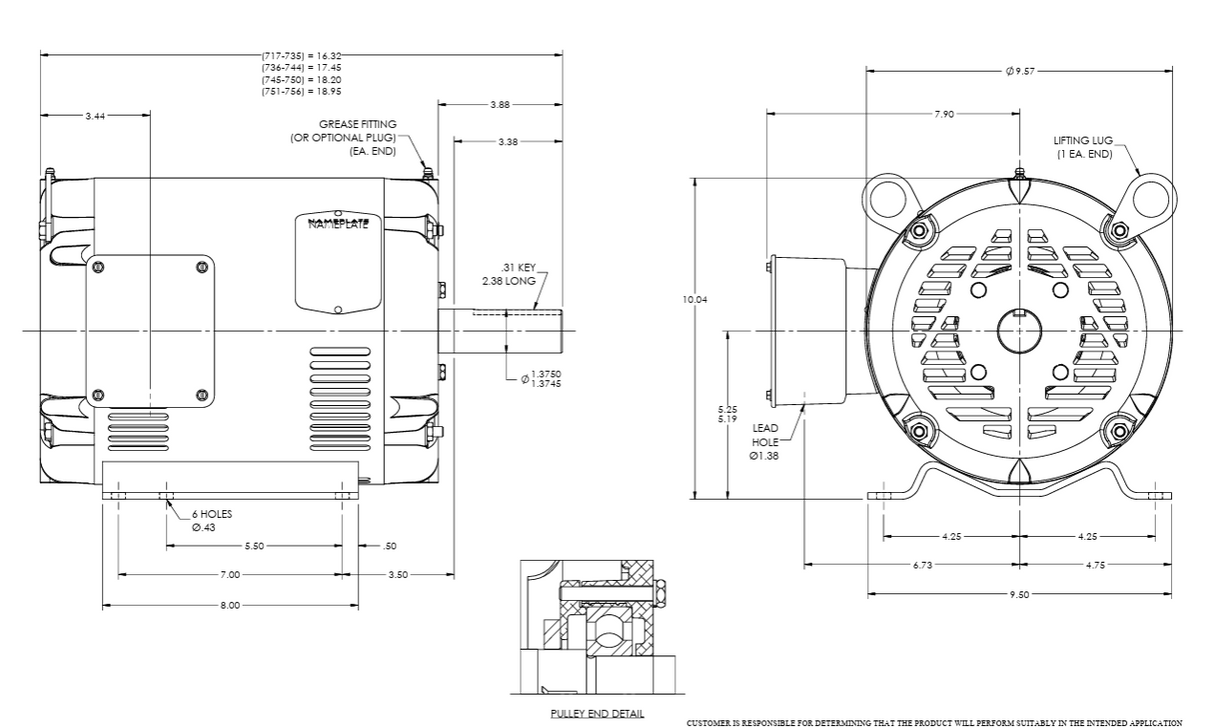

• Overall Length: 17.45 in
