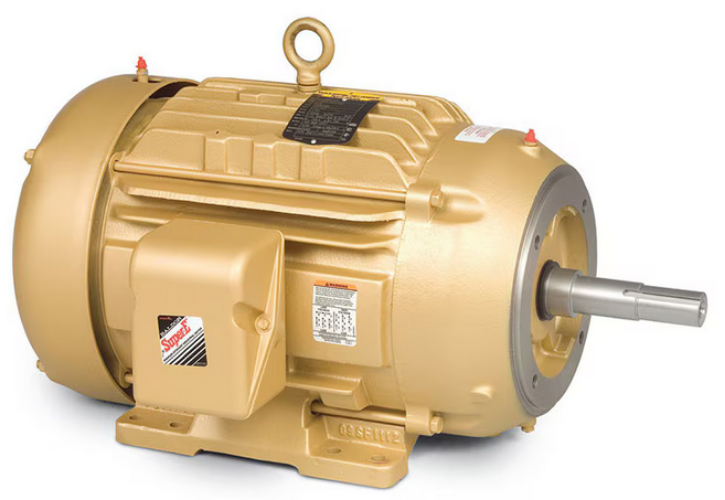

EJMM2333T, 15Hp, 1765 RPM , 230/460V, 3PH ,60HZ, 254JM, 0944M, TEFC, F1

EJMM2333T, 15Hp, 1765 RPM , 230/460V, 3PH ,60HZ, 254JM, 0944M, TEFC, F1

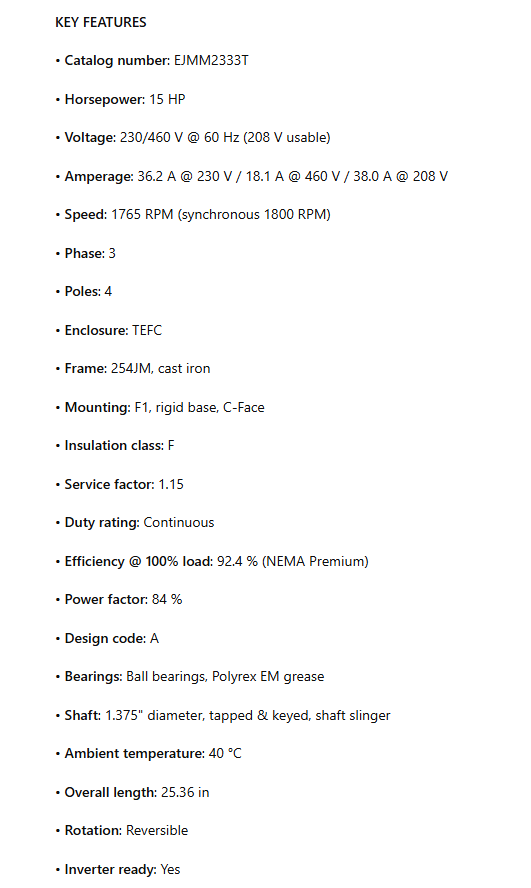

KEY FEATURES

• Catalog number: EJMM2333T

• Horsepower: 15 HP

• Voltage: 230/460 V @ 60 Hz (208 V usable)

• Amperage: 36.2 A @ 230 V / 18.1 A @ 460 V / 38.0 A @ 208 V

• Speed: 1765 RPM (synchronous 1800 RPM)

• Phase: 3

• Poles: 4

• Enclosure: TEFC

• Frame: 254JM, cast iron

• Mounting: F1, rigid base, C-Face

• Insulation class: F

• Service factor: 1.15

• Duty rating: Continuous

• Efficiency @ 100% load: 92.4 % (NEMA Premium)

• Power factor: 84 %

• Design code: A

• Bearings: Ball bearings, Polyrex EM grease

• Shaft: 1.375" diameter, tapped & keyed, shaft slinger

• Ambient temperature: 40 °C

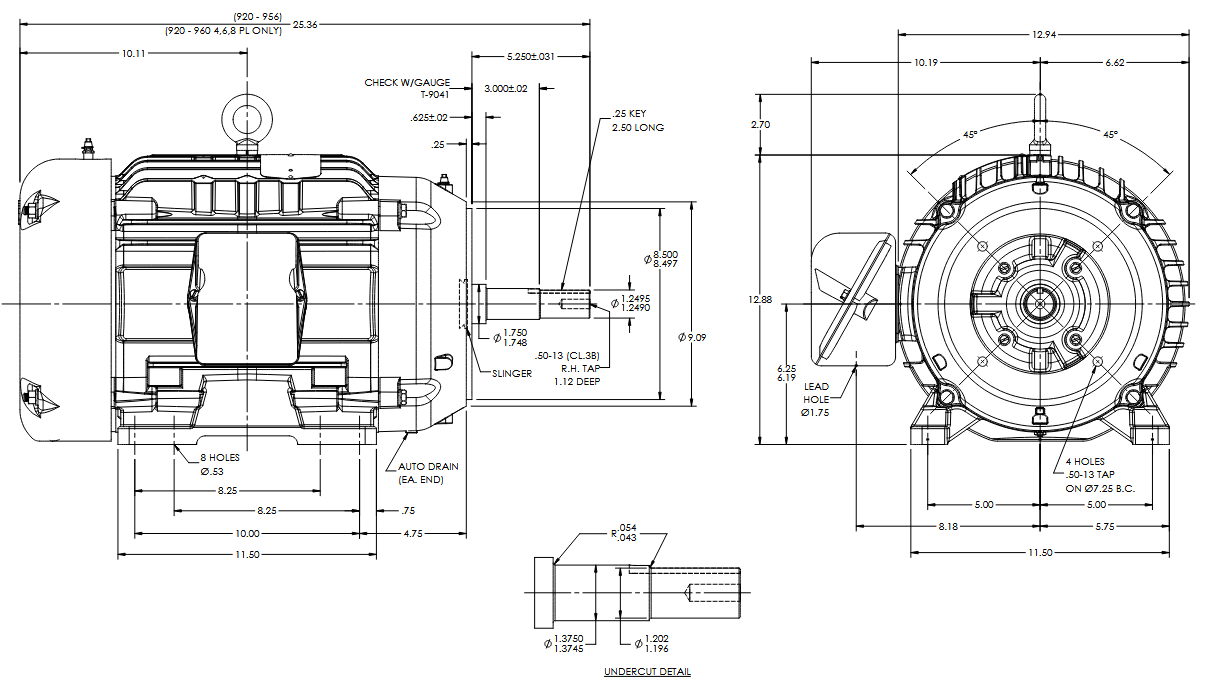

• Overall length: 25.36 in

• Rotation: Reversible

• Inverter ready: Yes
