WEG  |  SKU : EMN-019023

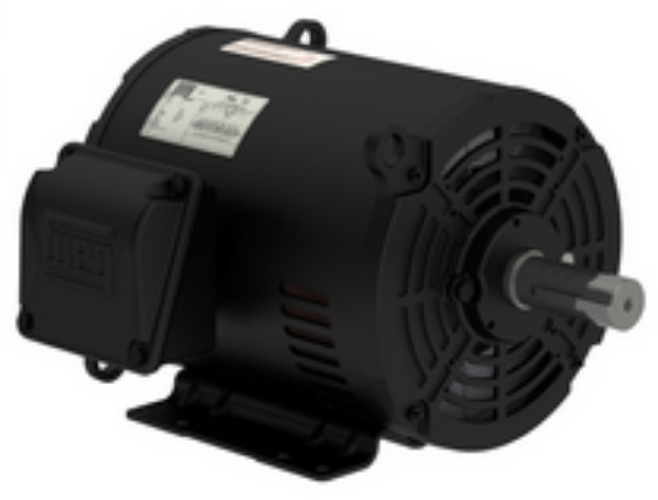

DP005502NPW01, Rolled Steel NEMA Premium Efficiency 5Hp 3510 Rpm 2P 182/4T 3Ph 575 V 60 Hz IC01 - ODP - Foot-mounted

$668.11
shipping

Estimation des frais de livraison

Description

DP005502NPW01,  Rolled Steel NEMA Premium Efficiency 5Hp 3510 Rpm 2P 182/4T 3Ph 575 V 60 Hz IC01 - ODP - Foot-mounted

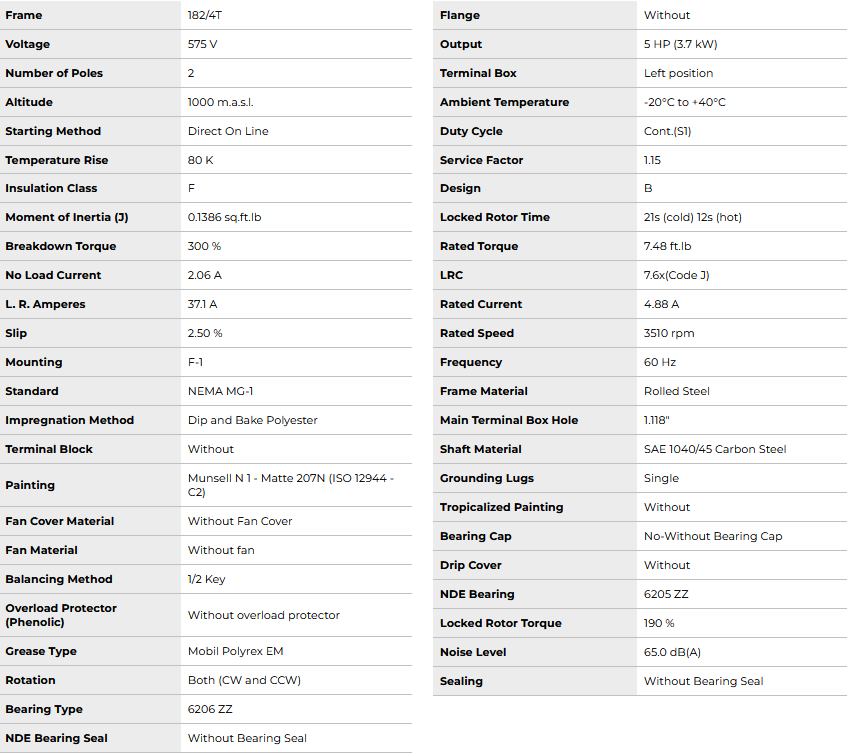

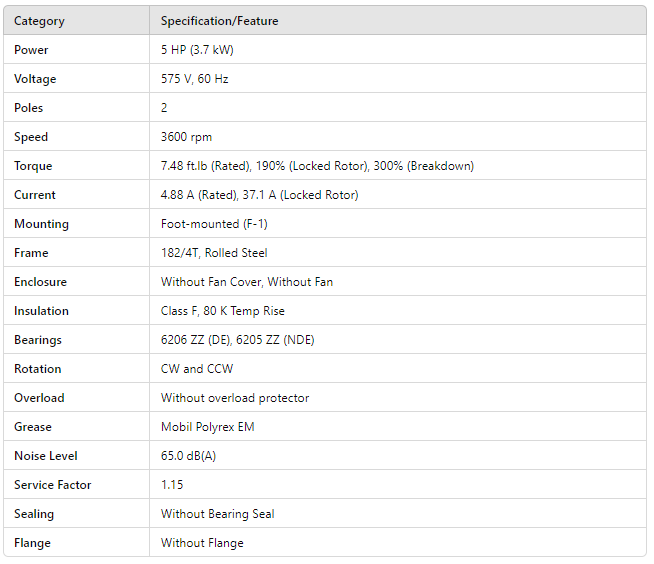

Category Specification/Feature
Power 5 HP (3.7 kW)
Voltage 575 V, 60 Hz
Poles 2
Speed 3600 rpm
Torque 7.48 ft.lb (Rated), 190% (Locked Rotor), 300% (Breakdown)
Current 4.88 A (Rated), 37.1 A (Locked Rotor)
Mounting Foot-mounted (F-1)
Frame 182/4T, Rolled Steel
Enclosure Without Fan Cover, Without Fan
Insulation Class F, 80 K Temp Rise
Bearings 6206 ZZ (DE), 6205 ZZ (NDE)
Rotation CW and CCW
Overload Without overload protector
Grease Mobil Polyrex EM
Noise Level 65.0 dB(A)
Service Factor 1.15
Sealing Without Bearing Seal
Flange Without Flange
