WEG  |  SKU : EMN-019006

DP001404NPW01, Rolled Steel NEMA Premium Efficiency 1.5Hp 1760 Rpm 4P 143/5T 3Ph 230/460//190-220/380-415 V 60 Hz IC01 - ODP - Foot-mounted

$448.34
shipping

Estimation des frais de livraison

Description

DP001404NPW01,  Rolled Steel NEMA Premium Efficiency 1.5Hp 1760 Rpm 4P 143/5T 3Ph 230/460//190-220/380-415 V 60 Hz IC01 - ODP - Foot-mounted

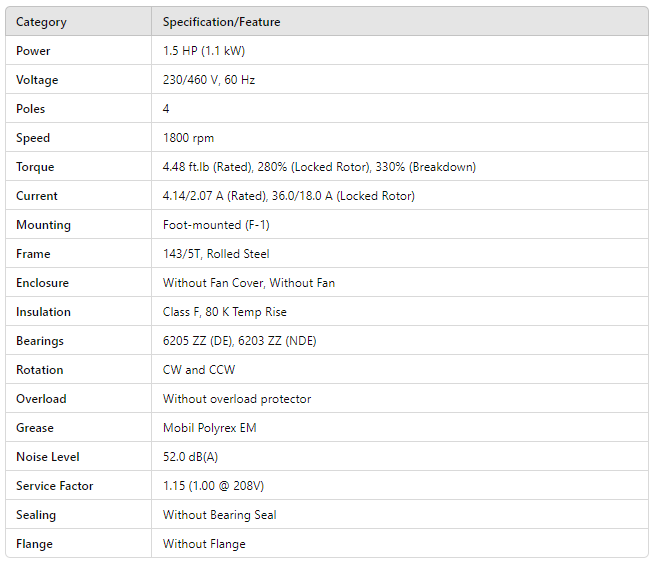

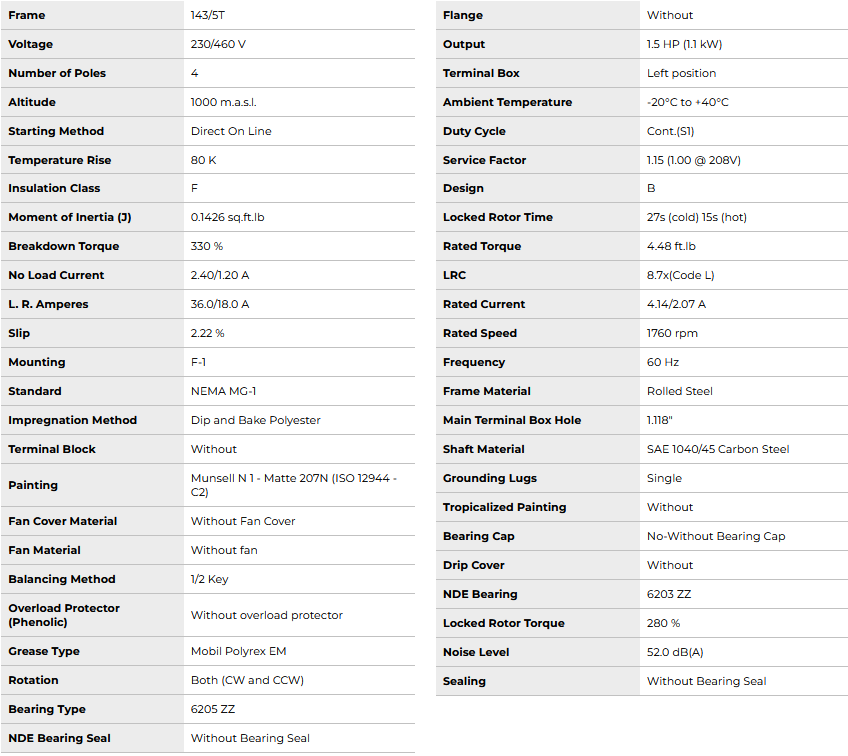

Category Specification/Feature
Power 1.5 HP (1.1 kW)
Voltage 230/460 V, 60 Hz
Poles 4
Speed 1800 rpm
Torque 4.48 ft.lb (Rated), 280% (Locked Rotor), 330% (Breakdown)
Current 4.14/2.07 A (Rated), 36.0/18.0 A (Locked Rotor)
Mounting Foot-mounted (F-1)
Frame 143/5T, Rolled Steel
Enclosure Without Fan Cover, Without Fan
Insulation Class F, 80 K Temp Rise
Bearings 6205 ZZ (DE), 6203 ZZ (NDE)
Rotation CW and CCW
Overload Without overload protector
Grease Mobil Polyrex EM
Noise Level 52.0 dB(A)
Service Factor 1.15 (1.00 @ 208V)
Sealing Without Bearing Seal
Flange Without Flange
