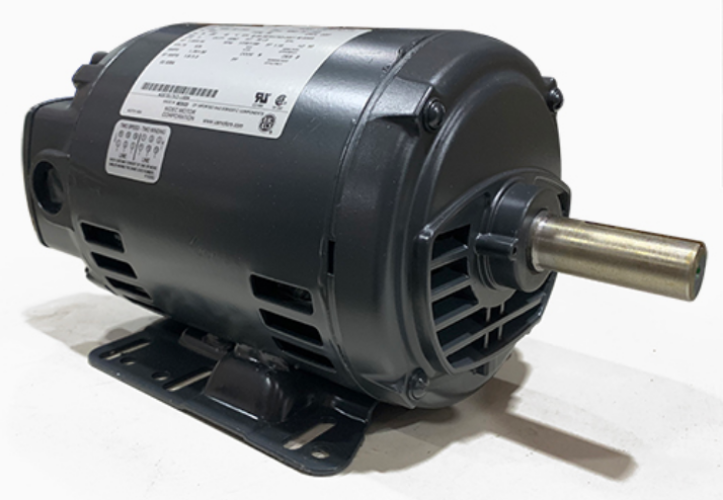

D5PK10G-P, 5Hp, 1800/1200RPM, 575V, 3Ph, 60Hz, ODP, Frame 213T, 2 Winding Multi-Speed

D5PK10G-P, 5Hp, 1800/1200RPM, 575V, 3Ph, 60Hz, ODP, Frame 213T, 2 Winding Multi-Speed

Replace : Y455-575

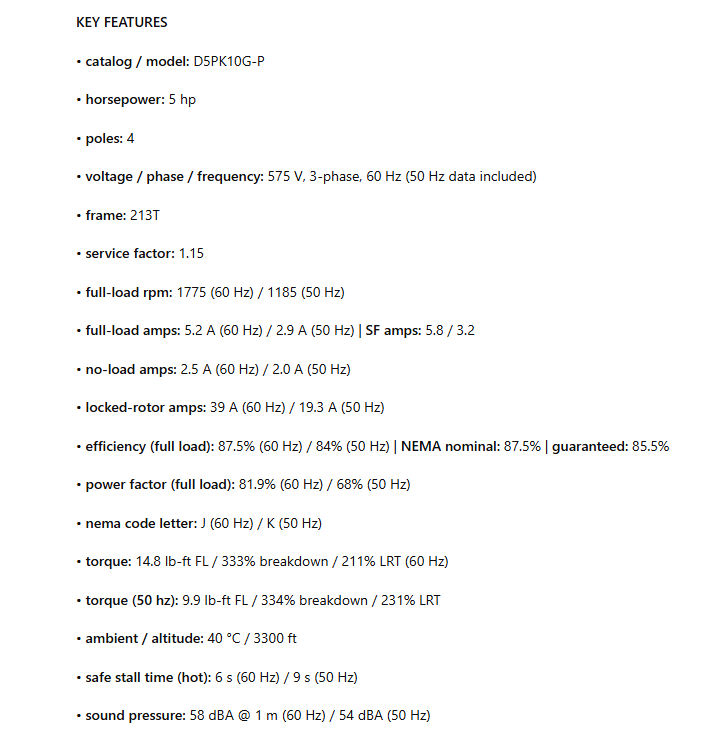

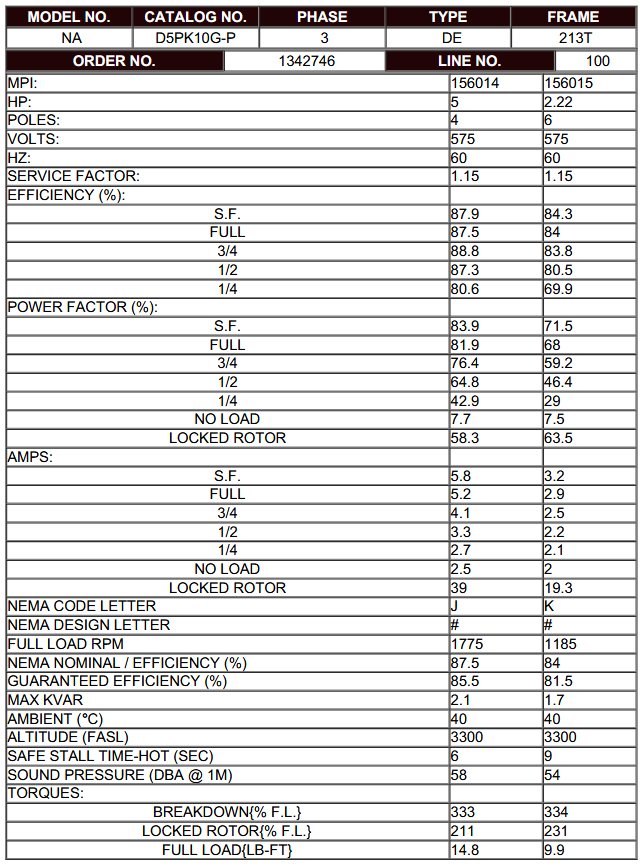

KEY FEATURES

• catalog / model: D5PK10G-P

• horsepower: 5 hp

• poles: 4

• voltage / phase / frequency: 575 V, 3-phase, 60 Hz (50 Hz data included)

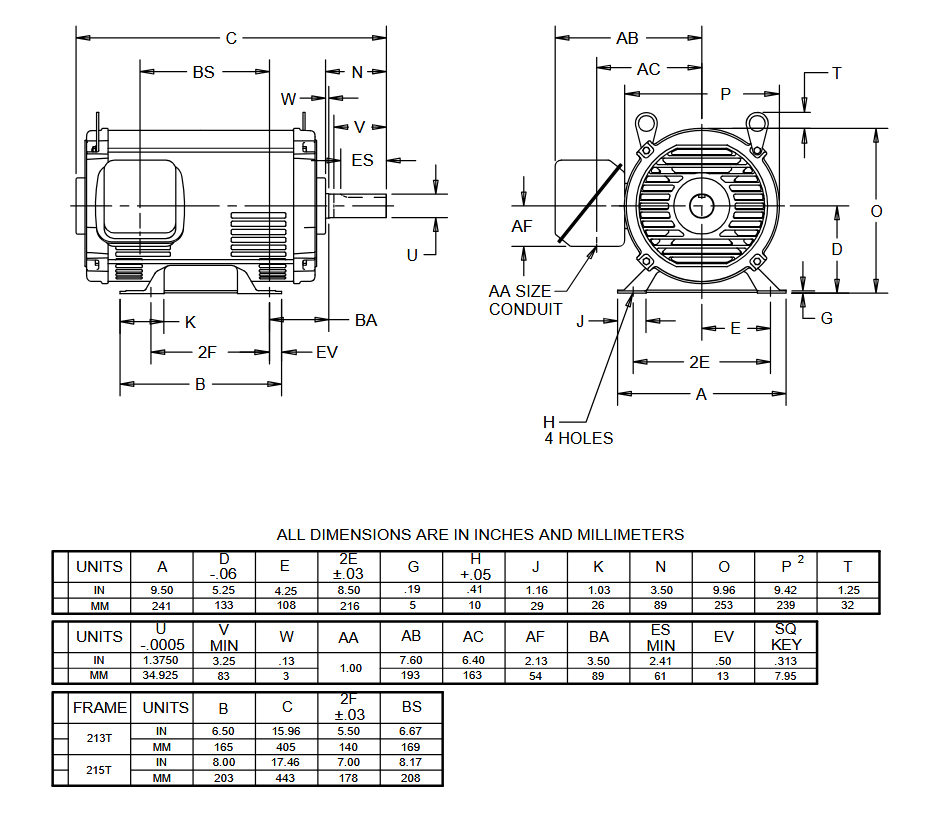

• frame: 213T

• service factor: 1.15

• full-load rpm: 1775 (60 Hz) / 1185 (50 Hz)

• full-load amps: 5.2 A (60 Hz) / 2.9 A (50 Hz) | SF amps: 5.8 / 3.2

• no-load amps: 2.5 A (60 Hz) / 2.0 A (50 Hz)

• locked-rotor amps: 39 A (60 Hz) / 19.3 A (50 Hz)

• efficiency (full load): 87.5% (60 Hz) / 84% (50 Hz) | NEMA nominal: 87.5% | guaranteed: 85.5%

• power factor (full load): 81.9% (60 Hz) / 68% (50 Hz)

• nema code letter: J (60 Hz) / K (50 Hz)

• torque: 14.8 lb-ft FL / 333% breakdown / 211% LRT (60 Hz)

• torque (50 hz): 9.9 lb-ft FL / 334% breakdown / 231% LRT

• ambient / altitude: 40 °C / 3300 ft

• safe stall time (hot): 6 s (60 Hz) / 9 s (50 Hz)

• sound pressure: 58 dBA @ 1 m (60 Hz) / 54 dBA (50 Hz)

Cross reference: Y455-575,  Model HVM 215TTDW7206AB
