D3P2G, 3Hp, 1770 RPM, 575V, 3PH, 60Hz, ODP, Frame 182T, HE23

D3P2G , 3Hp, 1770 RPM, 575V, 3PH, 60Hz, ODP, Frame 182T, HE23

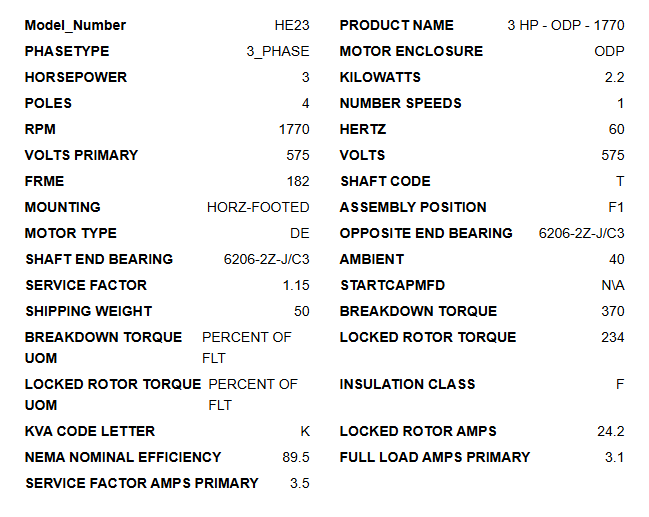

KEY FEATURES

• Model Number: HE23

• Product Name: 3 HP – ODP – 1770

• Horsepower: 3 HP (2.2 kW)

• Voltage: 575 V

• Phase Type: 3 Phase

• Frequency: 60 Hz

• RPM: 1770

• Poles: 4

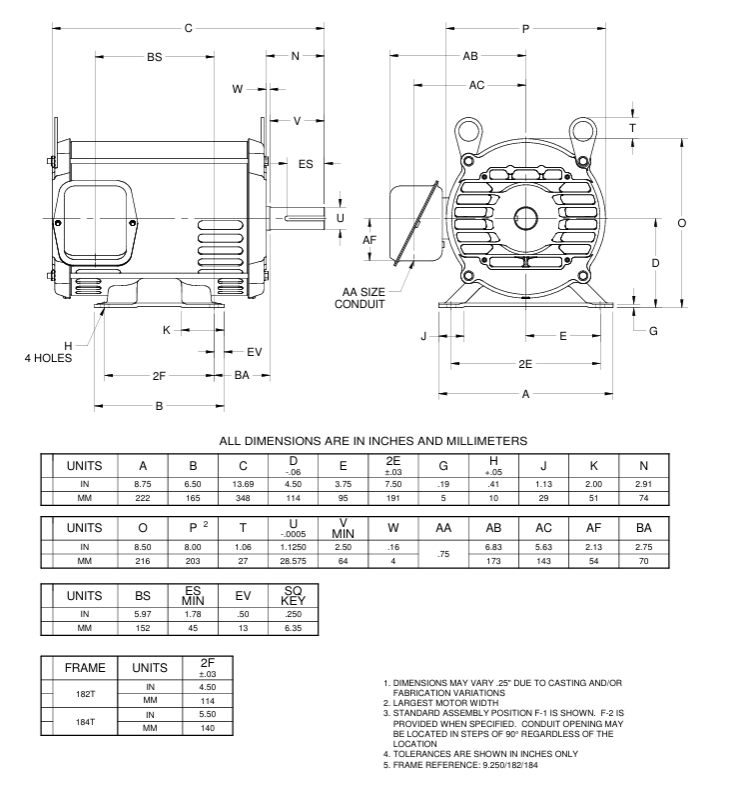

• Frame: 182T

• Enclosure: ODP

• Mounting: Horizontal Footed

• Assembly Position: F1

• Service Factor: 1.15

• Full Load Amps: 3.1 A

• Locked Rotor Amps: 24.2 A

• Locked Rotor Torque: 234% of FLT

• Breakdown Torque: 370% of FLT

• Insulation Class: F

• NEMA Nominal Efficiency: 89.5%

• Rotation: CW
