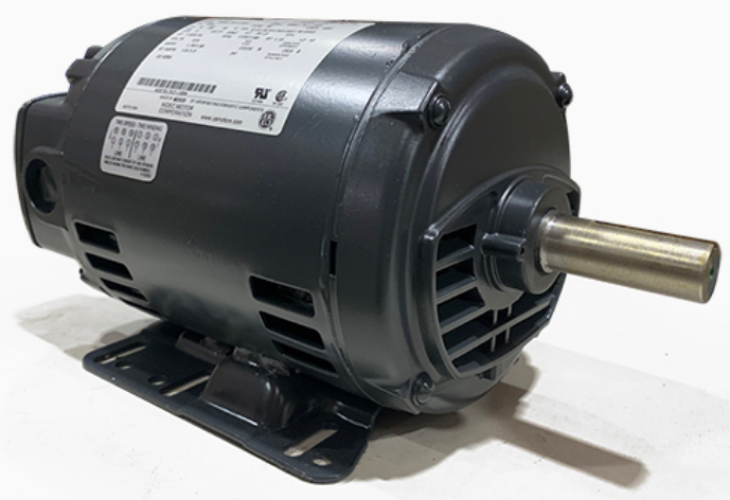

D32PK10G-P, 1.5Hp, 1760/1165 RPM, 575V, 3PH, 60Hz, ODP, Frame 145T, NEMA IE1 Multi-Speed 2 Windings Variable Torque

 D32PK10G-P, 1.5Hp, 1760/1165 RPM, 575V, 3PH, 60Hz, ODP, Frame 145T, NEMA IE1 Multi-Speed 2 Windings Variable Torque

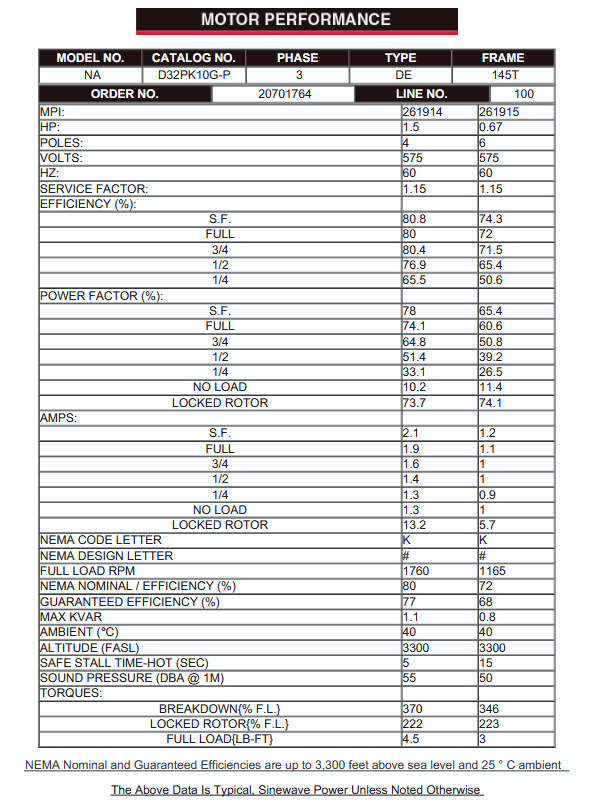

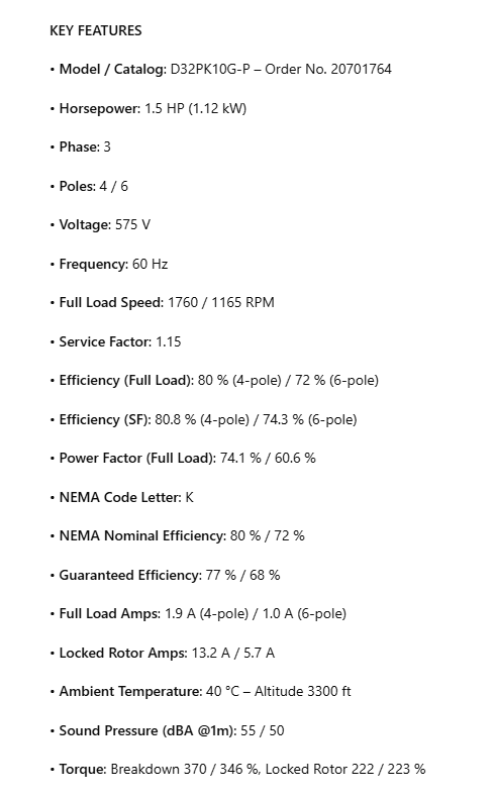

KEY FEATURES

• Model / Catalog: D32PK10G-P – Order No. 20701764

• Horsepower: 1.5 HP (1.12 kW)

• Phase: 3

• Poles: 4 / 6

• Voltage: 575 V

• Frequency: 60 Hz

• Full Load Speed: 1760 / 1165 RPM

• Service Factor: 1.15

• Efficiency (Full Load): 80 % (4-pole) / 72 % (6-pole)

• Efficiency (SF): 80.8 % (4-pole) / 74.3 % (6-pole)

• Power Factor (Full Load): 74.1 % / 60.6 %

• NEMA Code Letter: K

• NEMA Nominal Efficiency: 80 % / 72 %

• Guaranteed Efficiency: 77 % / 68 %

• Full Load Amps: 1.9 A (4-pole) / 1.0 A (6-pole)

• Locked Rotor Amps: 13.2 A / 5.7 A

• Ambient Temperature: 40 °C – Altitude 3300 ft

• Sound Pressure (dBA @1m): 55 / 50
